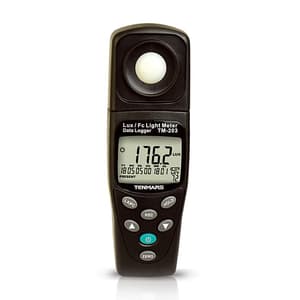

Tenmars 20 to 200000 Lux Data Logging Light Meter, TM-203
Roll over the image to zoom in
Key Features
- Product Type: Lux Meter
- Weight: 250 g
- Measuring Range (Lux): 20, 200, 2000, 20000, 200000 Lux
- Measuring Range (Footcandles): 20, 200, 2000, 20000 FC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,422 (Incl. of all taxes)
₹17,307 + ₹3,115 GST (18%)
Out of Stock
7 Business Days
1
–
Download Product LeafletNot available
Download Tenmars CatalogueNot available
Download Tenmars CatalogueNot available
Highlights
- According to JIS C 1609:1993 and CNS 5119 general A class Specifications.
- ±3%(Calibrated to standard incandescent lamp 2856°K) 6% other visible light source
Features:
- Overload Indication: LCD will show “OL” in the left highest position.
- Low battery Indication.
- Sampling Rate: 2.5 times per second for digital display.
- Spectral response close to CIE luminous spectral efficiency.
- Cosine Angular corrected.
- Measuring lights source include all visible.
- Measuring intensities of illumination in Lux or footcandles.
- Data hold.
- Zero adjustment.
- Large integrated circuit design.
- Auto power off.
- Auto range.
- Data logger.
- Maximum hold.
- Minimum hold.
- Average hold.
- Logger stores up to 7000 values
Applications:
- Warehouses
- Factories
- Office Buildings
- Restaurants
- Schools
- Library
- Hospitals
- Photographic
- Many Video
- Parking Garages
- Museums
- Art Galleries
- Stadiums
- Building Security
| Angle deviation from cosine | 30º | ±2% |
| 60º | ±6% | |
| 80º | ±25% |
Package Content:
- 1x Data Logging Light Meter
- User’s manual
- Carrying Case
- 9V battery
- USB transmission line
- User End Setup CD
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range (Lux) | 20, 200, 2000, 20000, 200000 Lux |
|---|---|
| Measuring Range (Footcandles) | 20, 200, 2000, 20000 FC |
| Resolution (Lux) | 0.01, 0.1, 1, 10, 100 Lux |
| Resolution (Footcandles) | 0.01, 0.1, 1, 10 FC |
| Sensor | Silicon Photodiode & Filter |
| Display | 2000 Count (Large LCD Display, Easier to Read.) |
| Dimensions (L x W x H) | 172 x 55 x 38 mm |
| Power Supply | 1x Battery (9V NEDA 1604, IEC 6F22, JIS 006P) |
| Battery Life | About 200 Hours |
