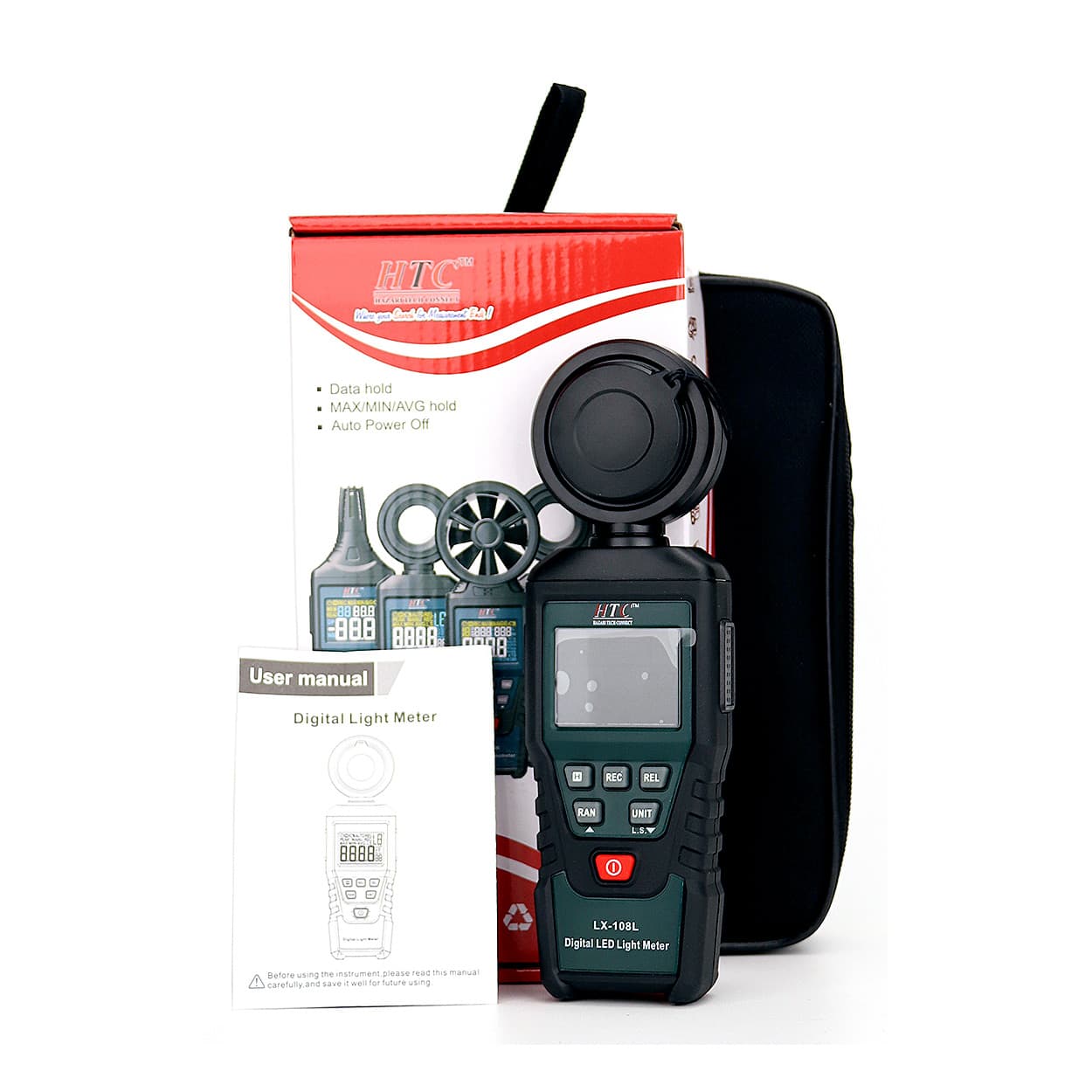

HTC 0 - 20000 FC / 0 - 200000 LED Lux Meter, LX-108L
Roll over the image to zoom in
Key Features
- Product Type: Lux Meter
- Weight: 142 g
- Lux Range: 1000, 10000, 200000
- FC Range: 100, 1000, 20000
- Sampling Rate: Approx. 2 times per second
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,402 (Incl. of all taxes)
₹2,036 + ₹366 GST (18%)
MRP was MRP ₹2,545
Save 20%
5 Business Days
1
90278990
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Data Hold Auto.
- Manual Range.
- Max / Min / Avg Data Hold.
- Relative Value Measurement.
- 180 Degree Rotable Probe.
- LED Type : Red / Blue / Green / Yellow / Purple.
- Self Defined Light Source.
- Self Defined Light Source Coefficient.
- LCD Display With Bar-Graph.
- Auto Power Off.
- Low Battery Indication.
Package Contents:
- User Manual,
- Soft Carrying Case.
Specification:
| Accuracy | ±3% +5 Lux) (at 2854ºK incandescent lamps) ±(6%+5 Lux) Others Cosine angle deviation characteristics 30° 2%; 60° 6%; 80° 25%; |
| Calibration | Calibrated to a standard incandescent lamp at colour temperature 2854°K |
| Resolution | LUX : < 1000:01LUX; >1000:1LUX FC: < 100:0.1FC; <1000:0.1FC; >1000:1FC |
| Sensor | Silicon photo-diode and spectral response filter |
| Operating Conditions | Temperature : 0~40°C, Humidity : <80%RH, Attitude : <2000m |
| Storage Condition | Temperature : 10~50°C, Humidity : <80%RH, Attitude : <2000m |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Lux Range | 1000, 10000, 200000 |
|---|---|
| FC Range | 100, 1000, 20000 |
| Sampling Rate | Approx. 2 times per second |
| Special Range | 320~730nm |
| Auto Power Off | 10 Minutes |
| Safety Rating | EN61326-1 |
| Power | 3 x 1.5V AAA (Lr03) batteries |
| Dimension | H190 x W60 x D33 mm |
