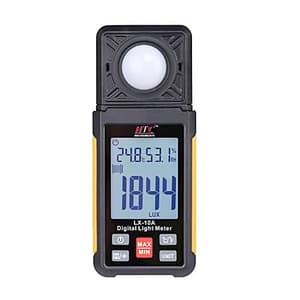

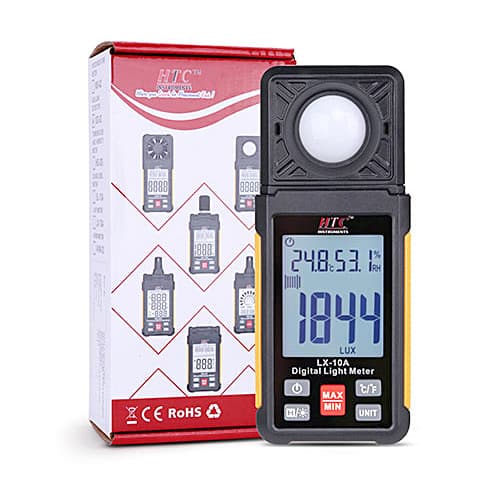

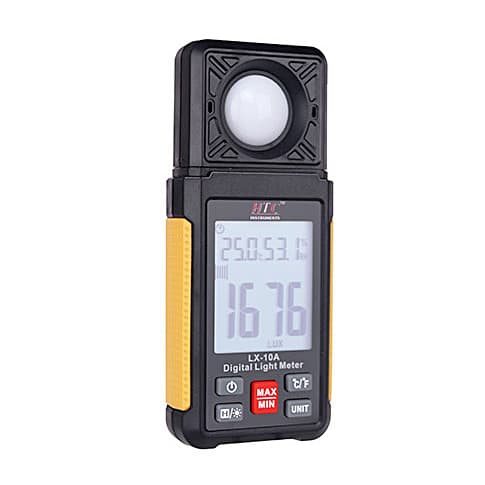

HTC 0 - 200000 Lux / 0 - 20000 FC Mini Lux Meter, LX-10A
Roll over the image to zoom in
Key Features
- Product Type: Lux Meter
- Power: AAA 1.5 V X 3
- Dimension: 138 (H) x 56 (W) x 25 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,520 (Incl. of all taxes)
₹1,288 + ₹232 GST (18%)
MRP was MRP ₹1,610
Save 20%
5 Business Days
1
90278990
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Data Hold
- Max/Min
- Back Light
- Lux / FC Measurement
- Spectral range 320 ~ 730nm
- Auto Power Off (APO 10 Min)
Package Contents:
- Manual,
- Soft Carry Case.
Technical Data:
| Basic Function | Range | Resolution | Accuracy | |
| Illumination | LUX | 1000, 10000, 200000 | 10 Lux | (3.0% + 5 dgts) at 2854 K incandesecent lamp |
| FC | 100, 1000, 20000 | 1 FC | Cosine angle deviation 30±2% , 60 ±6% , 80 ±25% | |
| Sensor Type | Silcion Photo-diode and Spectral response filter | |||
| Temperature | ºC | -20.0~60.0ºC | 0.1ºC | 0.0ºC ~ 45.0ºC ± 1.0ºC others ±1.5ºC |
| ºF | -4.0~140.0ºC | 1ºF | 32ºF ~ 113ºF ± 2.0ºF others ± 3.0ºF | |
| Humidity | 0.0% ~ 99.9% RH | 0.1%RH | 20%~80% ±5.0% RH others ± 6.0% RH |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | AAA 1.5 V X 3 |
|---|---|
| Dimension | 138 (H) x 56 (W) x 25 (D) mm |
