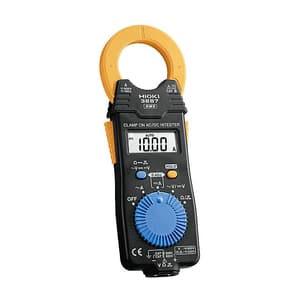

Hioki 4.199 V - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3287
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 170 g
- DC Current range: 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
- Core jaw dia.: 35 mm (1.38 in)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,127 (Incl. of all taxes)
₹20,447 + ₹3,680 GST (18%)
MRP was MRP ₹24,055
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights

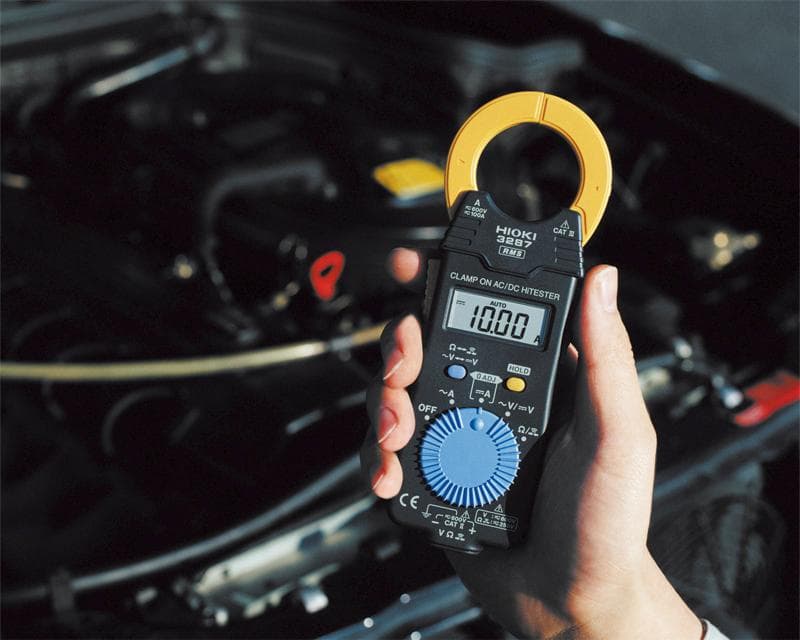

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.
- CAT III 600 V (Current)
- CAT III 300 V (Voltage)
- CAT II 600 V (Voltage)
Key Features:
- Accurately measure even small currents with 10 A range
- Voltage, resistance, and continuity check function
What's Included In This Package:
- 1x Coin type lithium battery (CR2032)
- 1x Carrying case 9398
- 1x Test lead L9208
- 1x Instruction manual
|
Compact & EasyThe 3287 performs accurate measurements of even small currents in the AC/DC 10.00 A range. In AC mode it also guarantees accuracy of true RMS measurements for frequencies from 10 Hz to 1 kHz. Handles low frequency to distorted currents including higher harmonics, simplifying maintenance of energy-saving equipment up to a maximum of 100 A. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Current range | 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| AC Current range | 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS) Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC Voltage range | 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS) Basic accuracy: ±2.3 % rdg. ±8 dgt. |
| Resistance range | 419.9 O to 41.99 MO, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt |
| Crest factor | 2.5 or less (150 A, 1000 V max.) |
| Other functions | Continuity: (50 O ±40 O) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 25 hours |
| Core jaw dia. | 35 mm (1.38 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz) |
