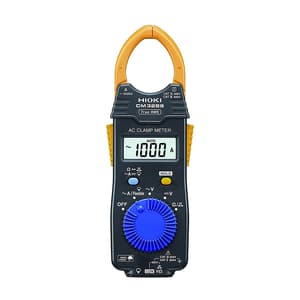

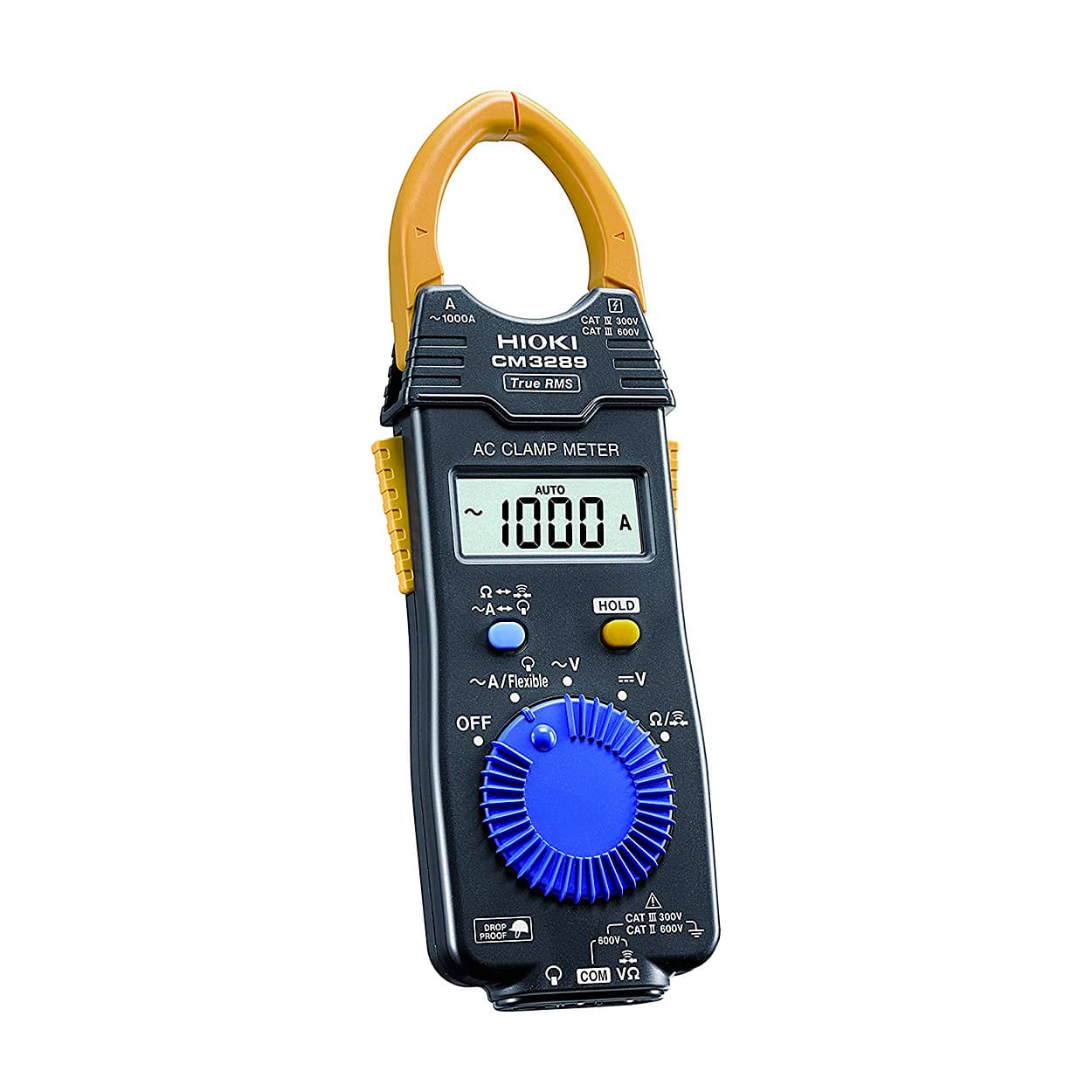

Hioki 42.00 - 1000 A True-RMS AC Clamp Meter, CM3289
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 100 g
- DC Voltage range: 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
- Crest factor: 2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count)
- Power supply: Coin type lithium battery (CR2032) ×1 Continuous use 70 hours
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,159 (Incl. of all taxes)
₹8,609 + ₹1,550 GST (18%)
MRP was MRP ₹10,128
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
- CAT IV 300 V (Current)
- CAT III 600 V (Current)
- CAT III 300 V (Voltage)
- CAT II 600 V (Voltage)
Key Features:
- The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces.
- New redesigned sensor for even easier clamping
- Expanded -25 °C to 65 °C operating temperature range
- Measure even harmonic waveform components using the True RMS method
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
What's Included In This Package:
- 1x Carrying case 9398
- 1x Test Lead L9208
- 1x Coin type lithium battery CR2032
- 1x Instruction manual
|

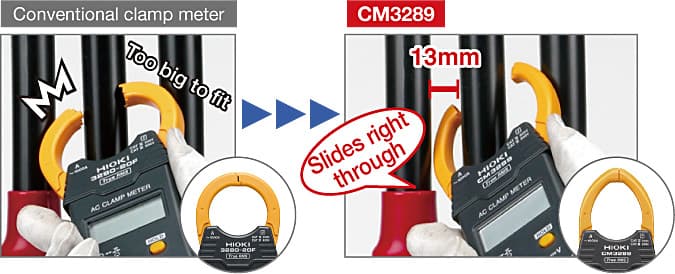

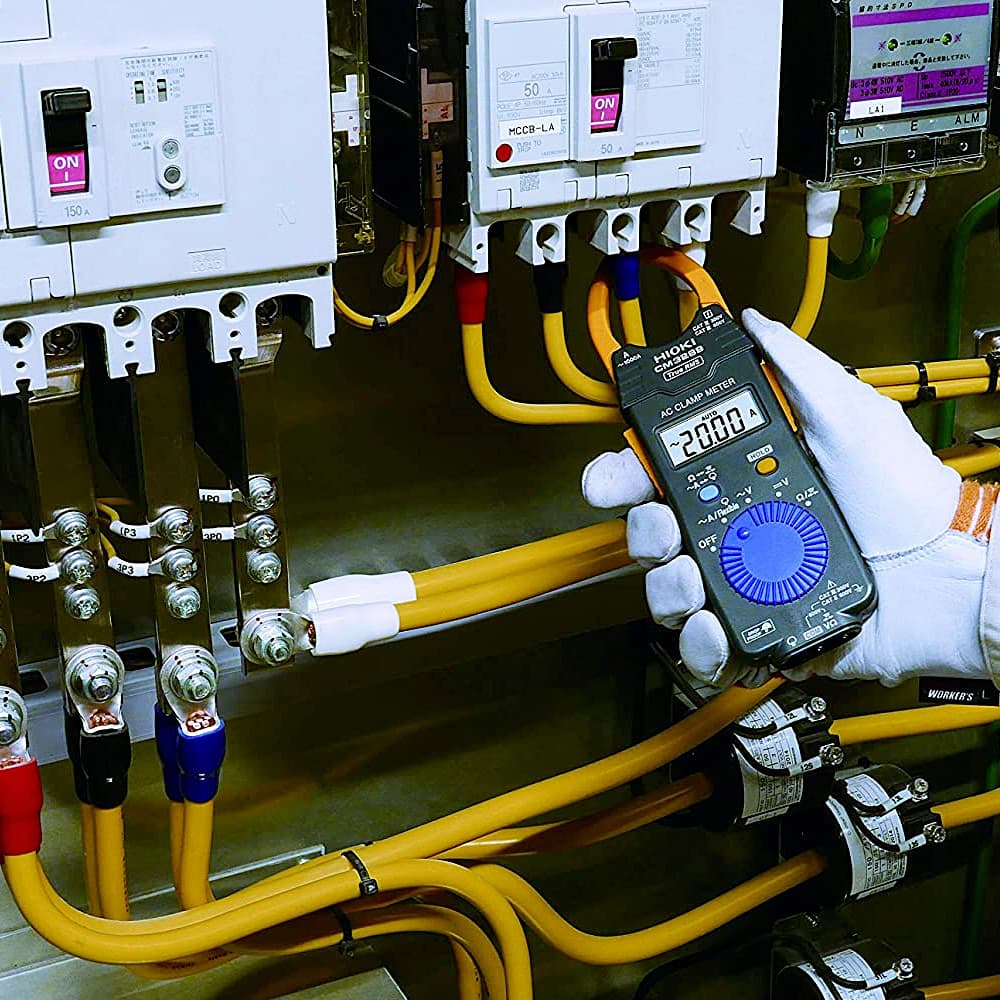

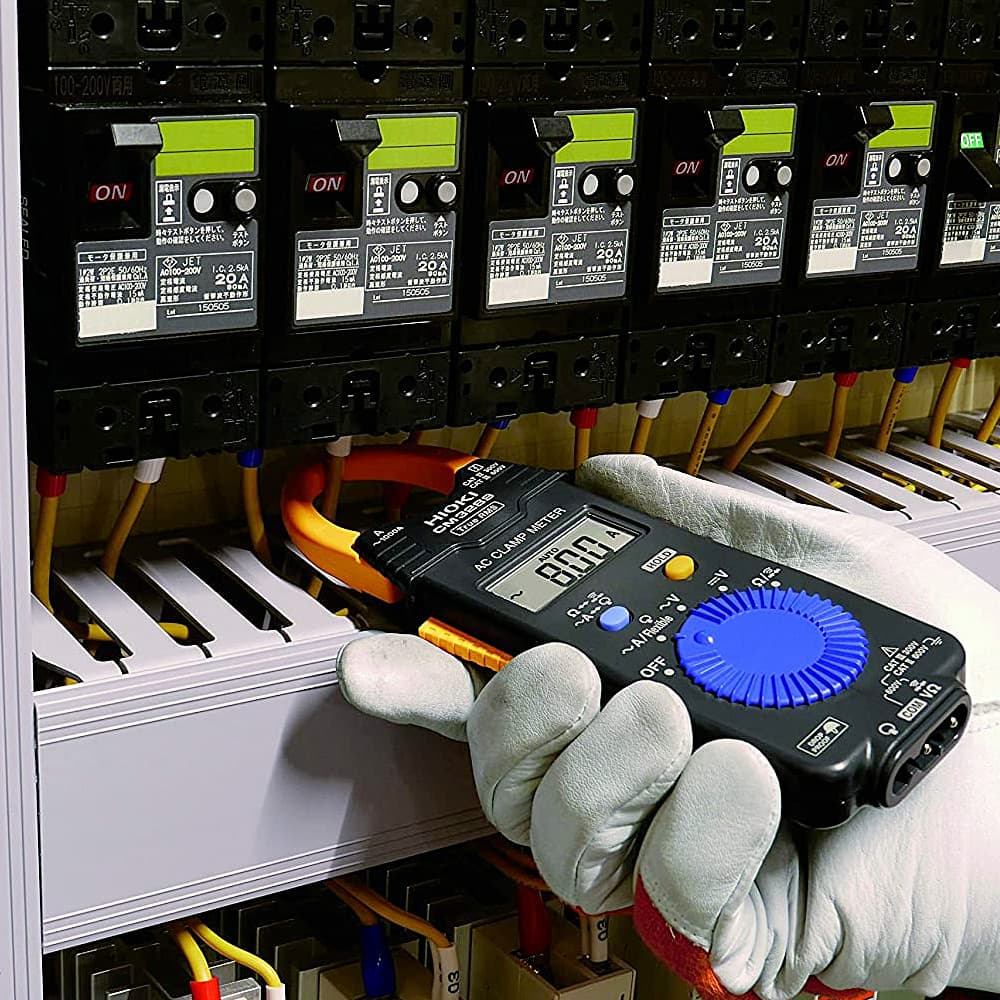

Quickly clamp wires in even more confined spaces!A new sensor profile yields outstanding ease of use |
|

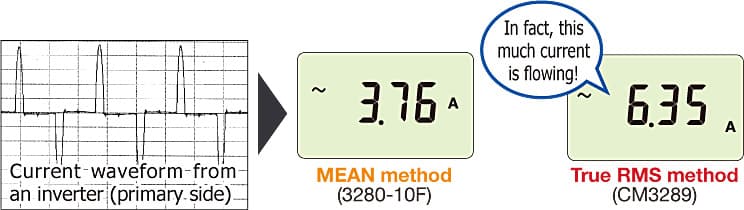

True RMS measurement delivers accurate results for even distorted waveforms.The waveform including harmonic components is calculated according to an RMS calculation formula and displayed. True RMS measurement yields accurate display values even when measuring a distorted waveform, for example from an inverter-equipped device or switching power supply. |
|

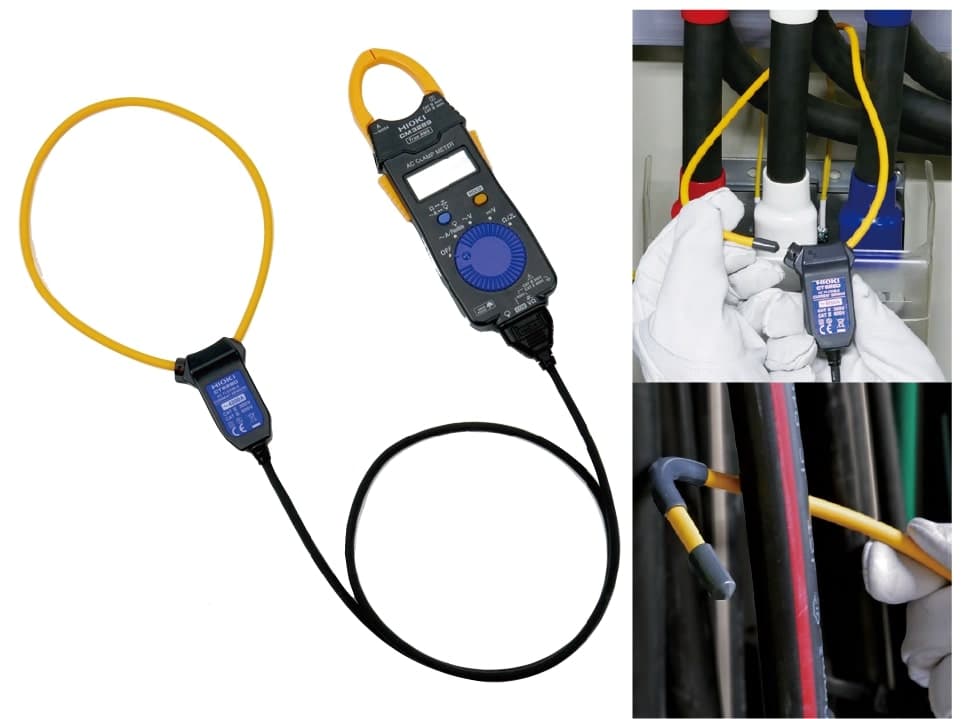

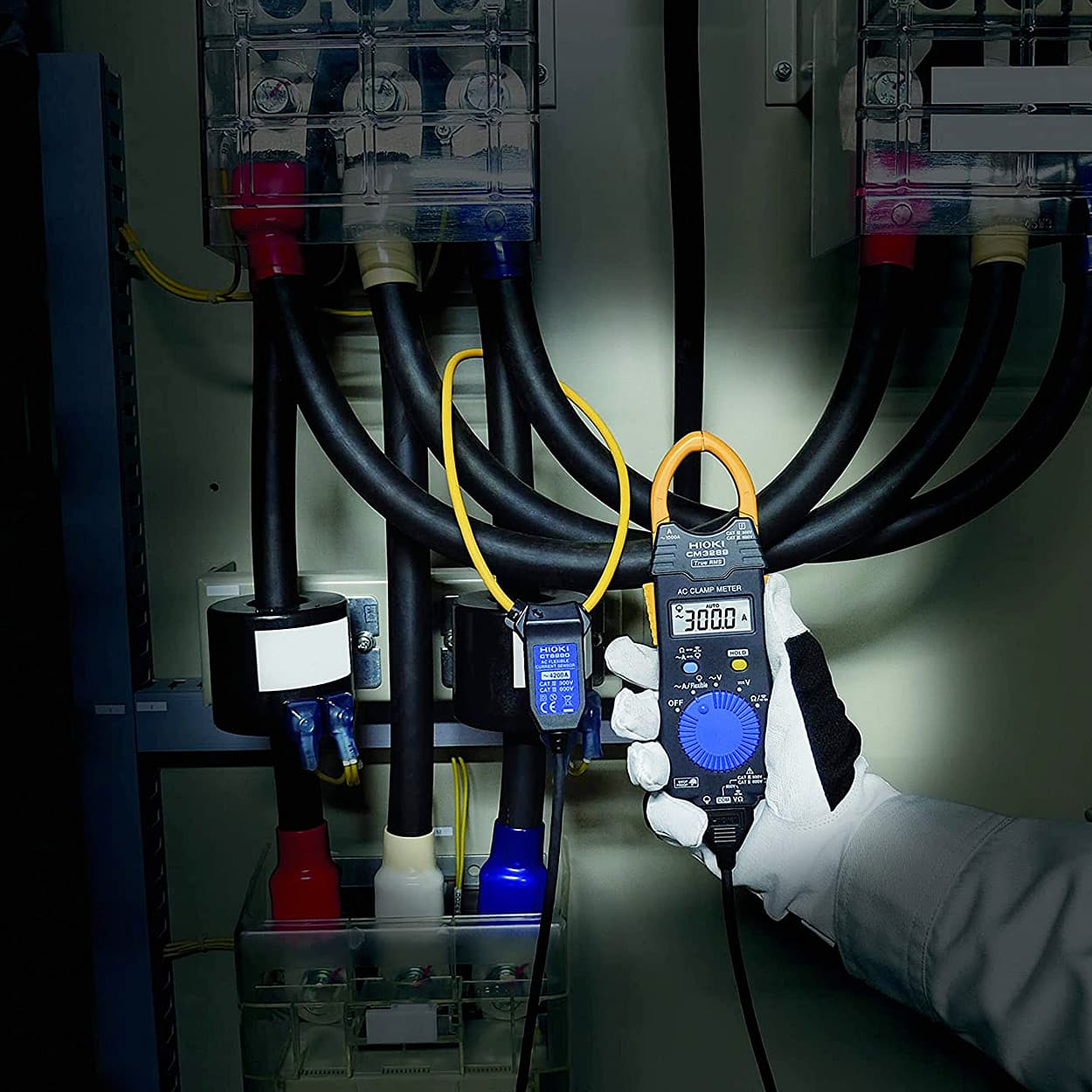

A pocket clamp meter that can use flexible sensorsWhen connected to an optional flexible current sensor*, the CM3289 can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past. AC flexible current sensor CT6280 (4200 A AC, Φ130 mm) |
|

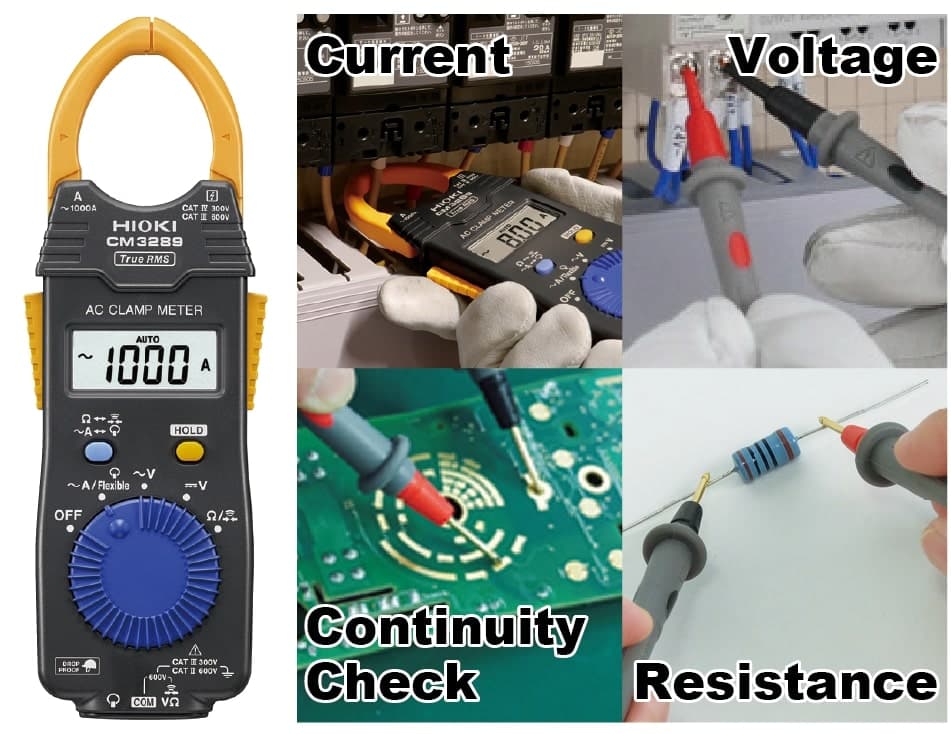

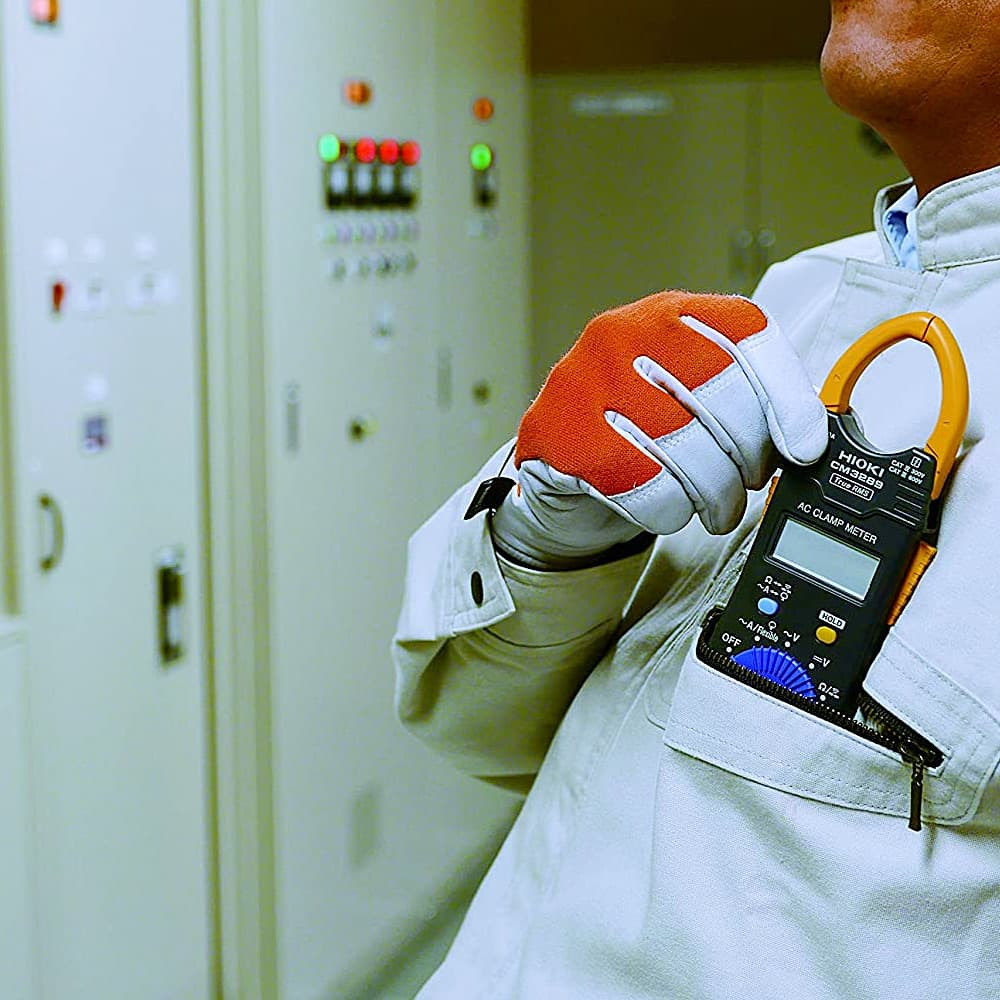

Essential for electrical work: A thin card tester that fits in the pocket with all the capabilities of a clamp meterThe CM3289 delivers all the functionality of a clamp meter and card tester in the form factor of the latter. In addition to current measurement, this single instrument delivers voltage measurement, continuity check, and resistance measurement functionality. |
|

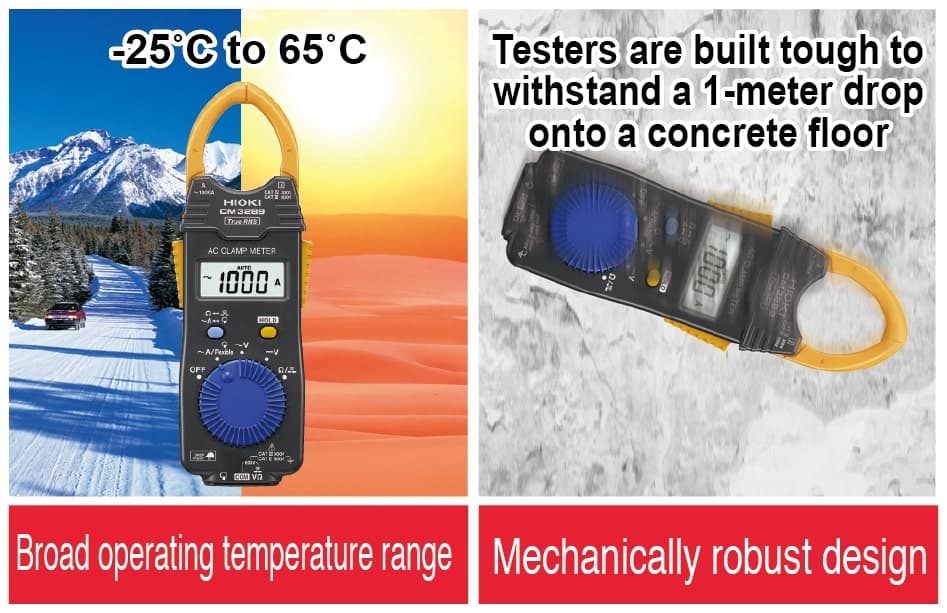

Rugged, portable design that’s drop-resistantDespite its thin, compact design, the CM3289 has an operating temperature range of -25°C to 65°C and can withstand being dropped from a height of 1 m onto concrete. It’s engineered for use in tough environments. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| AC Current range | 42.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| DC Voltage range | 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range | 4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
| Crest factor | 2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count) |
| Resistance range | 420.0 O to 42.00 MO, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions | Continuity: Buzzer sounds at 50 O ±40 O or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Power supply | Coin type lithium battery (CR2032) ×1 Continuous use 70 hours |
| Core jaw diameter | 33 mm (1.30 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
| Core jaw dia. (CT6280) | 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in)) |
| AC Current (CT6280) | 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.) |
| Cable length (CT6280) | 800 mm (31.5 in) |
