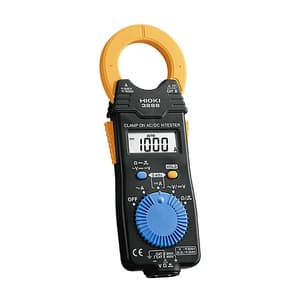

Hioki 419.9 mV - 600 V AC Clamp On AC/DC HiTester, 3288
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 150 g
- DC Current range: 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
- Core jaw dia.: f 35 mm (1.38 in)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,968 (Incl. of all taxes)
₹11,837 + ₹2,131 GST (18%)
MRP was MRP ₹13,926
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.
- CAT III 600 V (Current)
- CAT III 300 V (Voltage)
- CAT II 600 V (Voltage)
Key Features:
- Voltage, resistance, and continuity check functions
- Use the 3288 for high current measurements such as UPS emergency batteries and train motors
What's Included In This Package:
- 1x Coin type lithium battery (CR2032)
- 1x Carrying case 9398
- 1x Test lead L9208
- 1x Instruction manual
|
Compact & EasyMulti-function clamp that simplifies equipment diagnosis. Besides AC/DC current measurement, it also contains DMM functions for voltage, resistance, and continuity checking. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Current range | 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| AC Current range | 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC Voltage range | 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified) |
| Resistance range | 419.9 O to 41.99 MO, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions | Continuity: (50 O ±40 O) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 60 hours |
| Core jaw dia. | f 35 mm (1.38 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz) |
