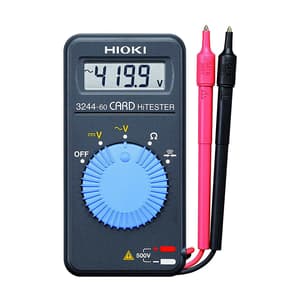

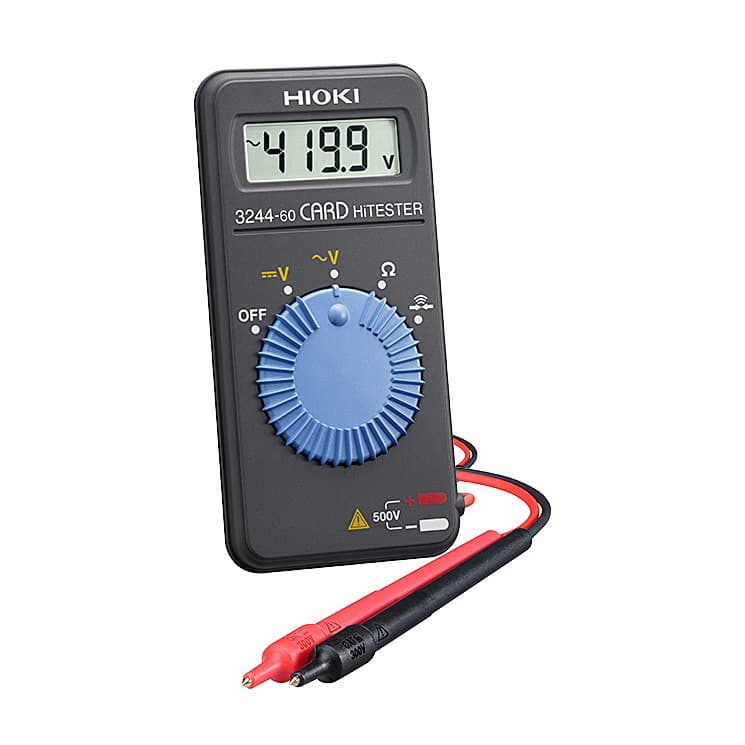

Hioki 500 V Card-Style Pocket Digital Multimeter, 3244-60
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 60 g
- Power supply: Coin Type Lithium Battery (CR2032)
- DC Voltage Range: 419.9 mV to 500 V, 5 Ranges
- AC Voltage Range: 4.199 V to 500 V, 4 Ranges
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,174 (Incl. of all taxes)
₹2,690 + ₹484 GST (18%)
MRP was MRP ₹3,165
Save 15%
5 Business Days
1
9030
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Product Information
Highlights
The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Key Features:
- Better contact test leads with 15 mm gold-plated tip pin
- Overload protection to 500 V at resistance or continuity functions
- Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
- Full auto-ranging function and automatic power saving function
What's Included In This Package:
- 1x Sleeves (Red/ Black each 1)
- 1x Instruction manual
- 1x Coin type lithium battery CR2032 (for trial purposes only)
- 1x Carrying case
|

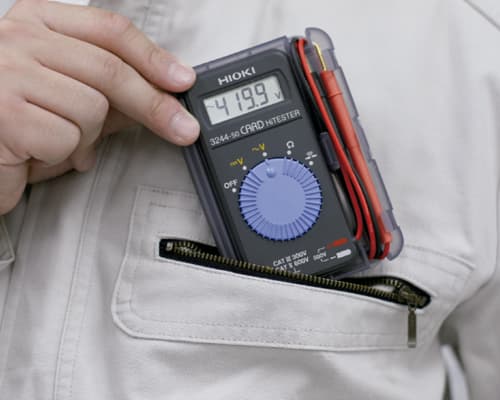

Card-size tester that’s easy to use in the fieldThanks to a compact design that’s less than 1 cm thick, this instrument is easy to carry and a breeze to use. |
|

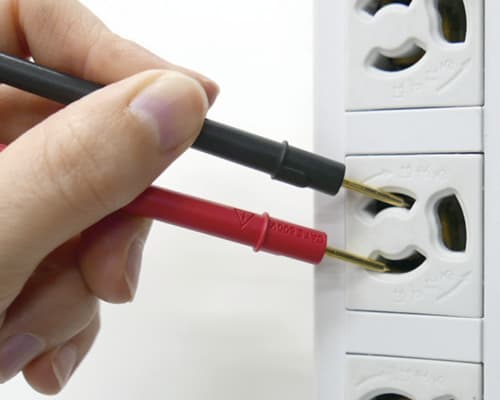

Test leads that reach all the way into outletsFeaturing a gold-plated tips that are 15 mm long |
|

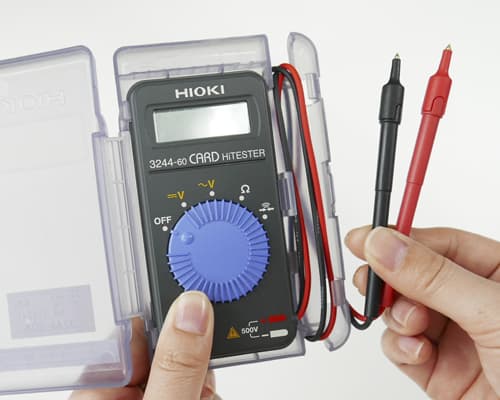

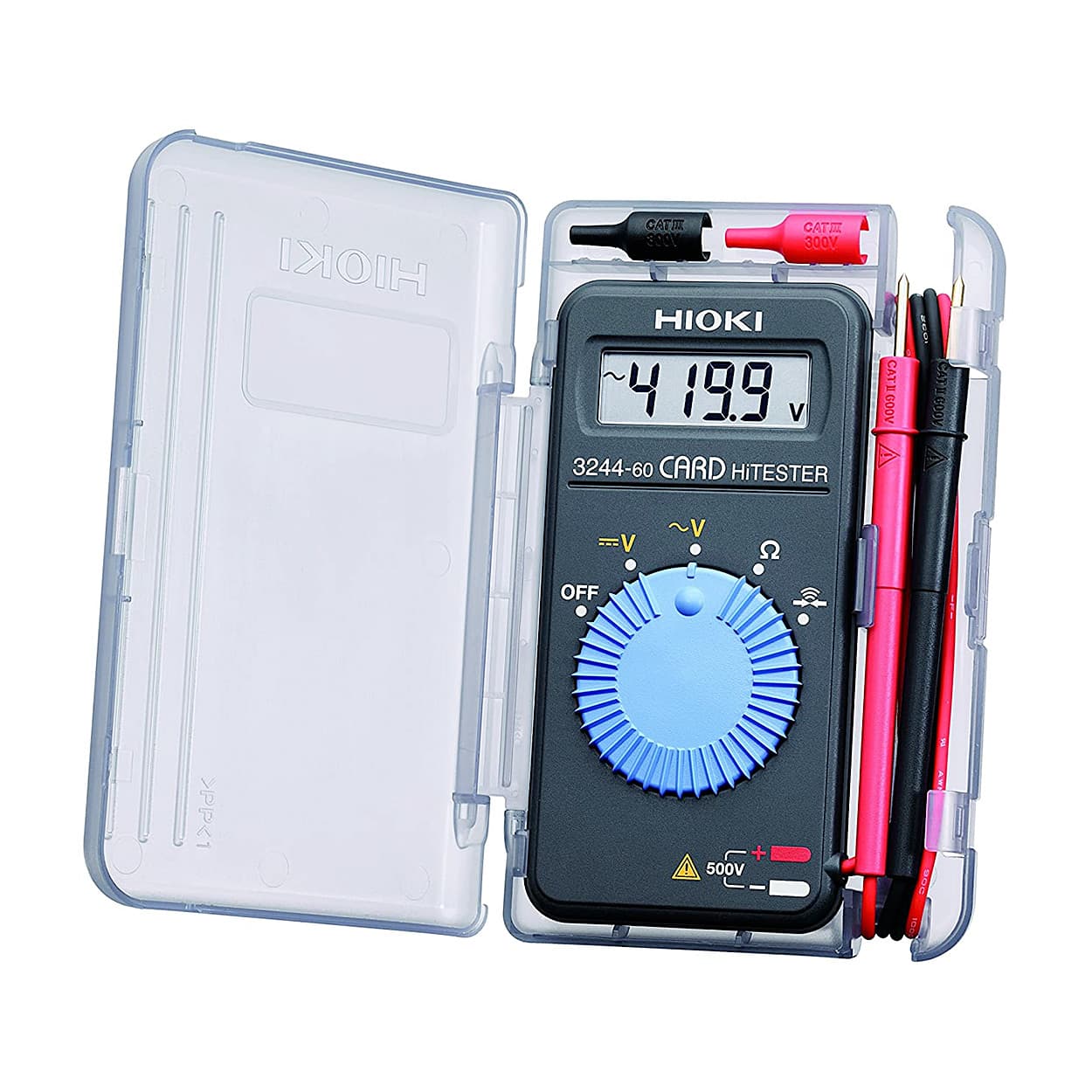

Included hard case for tidy storageThe instrument’s test leads can be wound up and stowed in this hard case. Dimensions: Approx. 80 (W) × 116 (H) × 17 (D) mm |
|

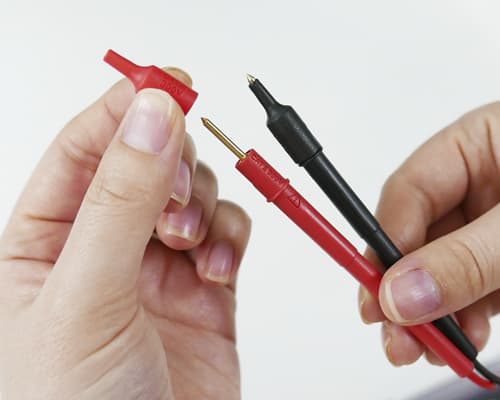

CAT III (300 V) safetyThis card tester can perform measurement safely at a high measurement category. It also includes a cap designed to prevent short-circuits. |
|

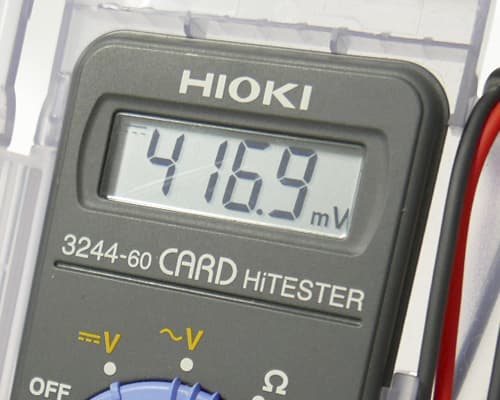

Tester with a simple, easy-to-read displayA simple display with large text ensures measured values are easy to read. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power supply | Coin Type Lithium Battery (CR2032) |
|---|---|
| DC Voltage Range | 419.9 mV to 500 V, 5 Ranges |
| DC Voltage Range (Basic Accuracy) | ±0.7 % rdg. ±4 dgt. |
| AC Voltage Range | 4.199 V to 500 V, 4 Ranges |
| AC Voltage Range (Basic Accuracy 50 - 500 Hz) | ±2.3 % rdg. ±8 dgt. (Average Rectified) |
| Resistance Range | 419.9 Ohm to 41.99 MOhm, 6 Ranges |
| Resistance Range (Basic Accuracy) | ±2.0 % rdg. ±4 dgt. |
| Continuity Buzzer | Detection level 50 Ohm ±40 Ohm |
| Auto Power Save | Available (Cancel Selectable) |
| Display | Digital LCD, max. 4199 Digits |
| Sampling Rate | 2.5 times/sec |
| Battery Usage | Continuous Operating Time: 150 hrs |
| Length x Width x Height | 55 mm × 109 mm × 9.5 mm |
