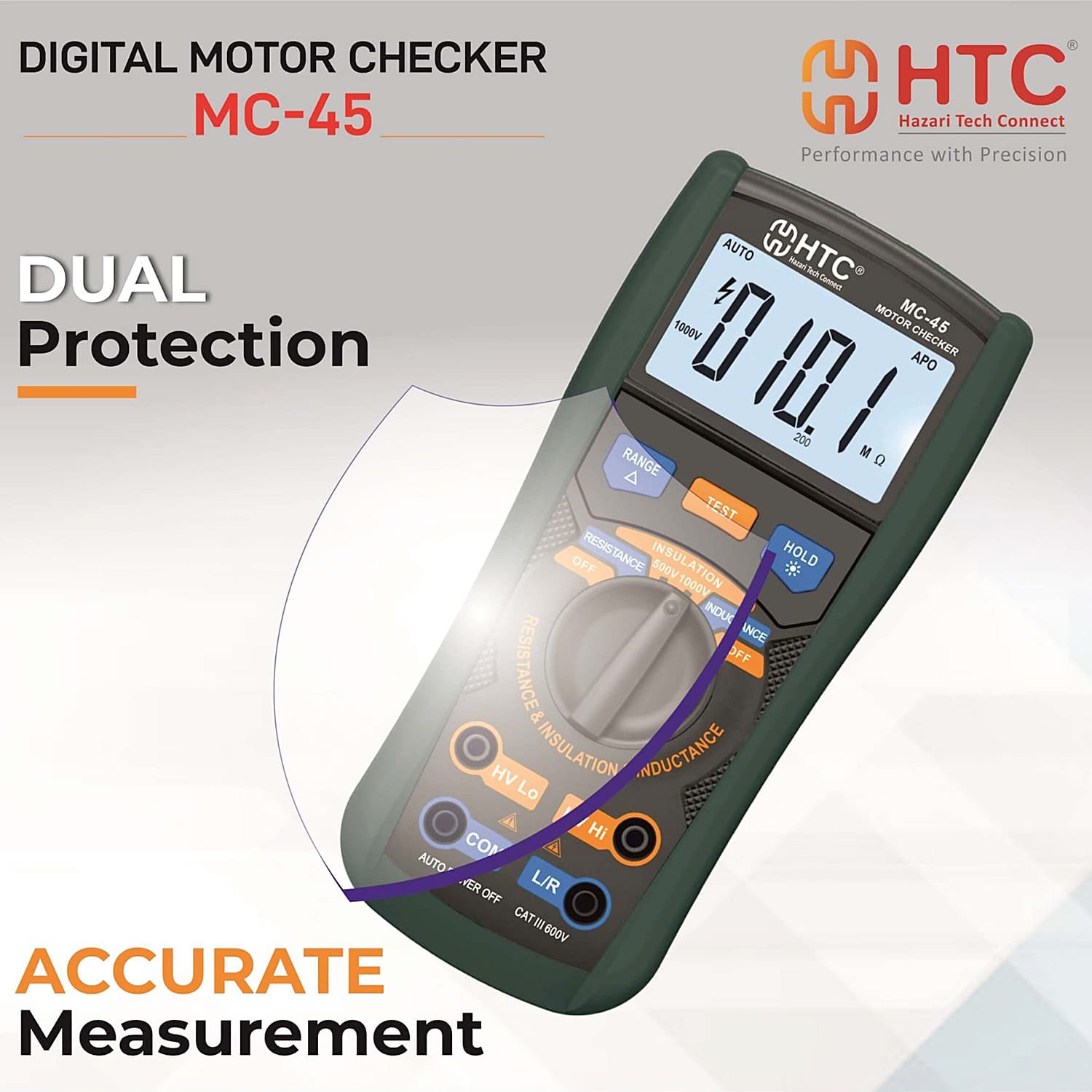

HTC 1000V / 2000M Ohm Digital Motor Checker, MC-45
Roll over the image to zoom in
Key Features
- Product Type: Motor Checker
- Weight: 480 g
- Insulation Resistance Range: 500V (200M Ohm) / 1000V (2G Ohm)
- DC Resistance: 0.1MOhm - 200 Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,122 (Incl. of all taxes)
₹11,968 + ₹2,154 GST (18%)
MRP was MRP ₹14,960
Save 20%
5 Business Days
1
90303350
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

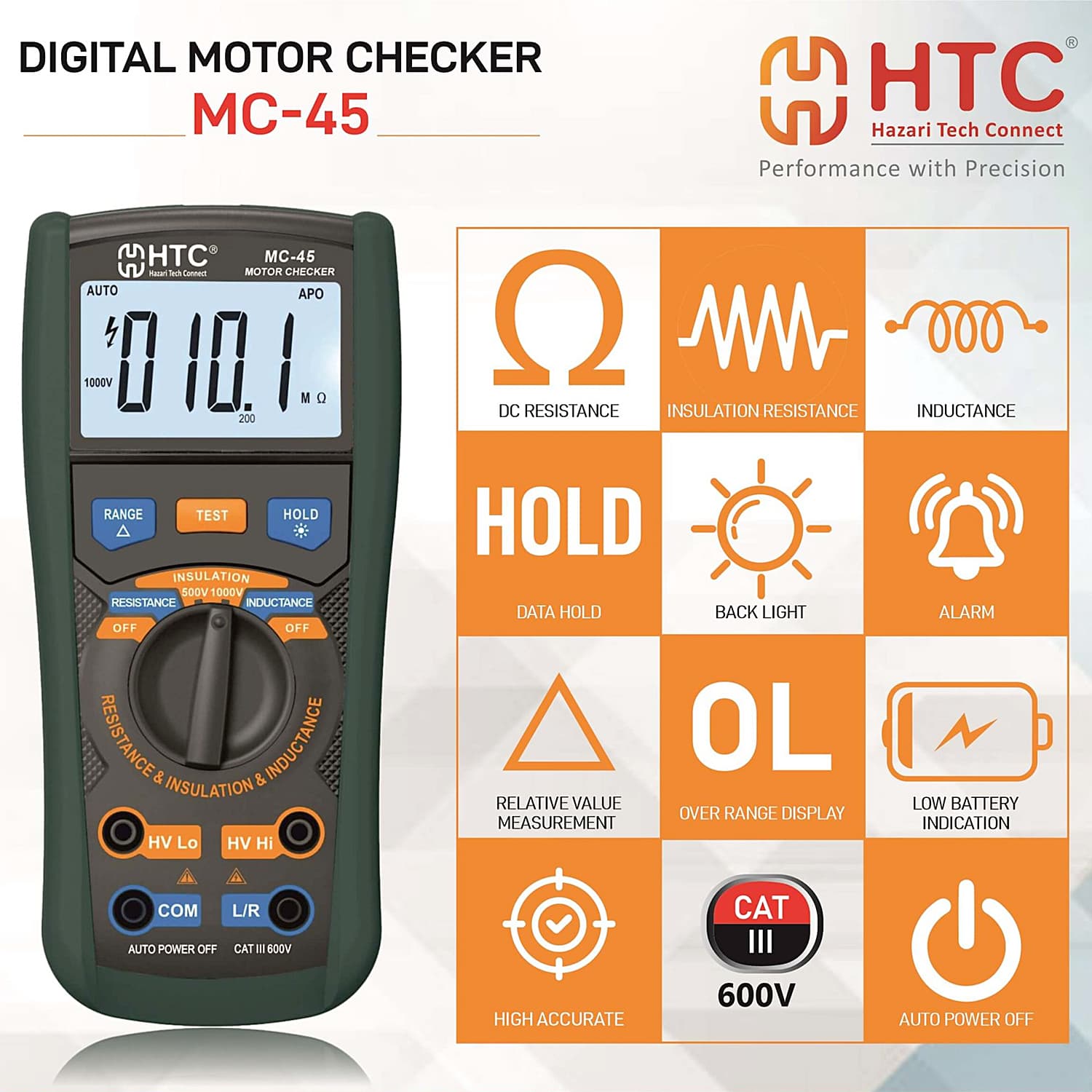

Highlights
- Auto Power Off after 15 Mints.
- Sampling Rate: Approximately 3 times / second
- Insulation Resistance Measurement
- Identify Inter Term Shorts
- Identify Open And Short Circuits / Loose Connections In Winding Coil
- Detect Rotor Bar Problems Without Dismounting The Rotor
- Inductance Of The Winding With Respect Ro Different Positions For Rotor For Detecting Blow Holes Or Crackes In The Rotor Bars.
- Data Hold
- Auto Range Switching
- Highly Accurate, Easy To Use
- Milliohm Resistance
- Used In Laboratories, Factories, Radio Industry, Electrical Vehicle Repair, Electronic Manufacturing And Maintenance, Power Installation
Technical Data:
- Insulation Resistance Measurement (MOhm)
| Range | Resolution | Accuracy | Note |
|---|---|---|---|
| 500V / 200MΩ | 0.1MΩ | ± (4%+2) | Output Voltage is 500V (Testing Range:1MΩ – 199.9MΩ) |
| 1000V / 2000MΩ | 1MΩ | Output Voltage is 1000V (Testing Range:1MΩ – 1999MΩ) |
Warning: This range has high voltage output, be careful of electric shock!
- DC Resistance Measurement (Ω)
| Range | Resolution | Accuracy | Note |
|---|---|---|---|
| 200MΩ | 0.1MΩ | ± (3%+20) | Open circuit voltage about 5.0V |
| 2Ω | 0.001Ω | ± (2%+20) | |
| 20Ω | 0.01Ω | ± (1%+10) | |
| 200Ω | 0.1Ω |
Warning: Before testing, short-circuit the test leads. If the display doesn’t return to zero and shows residual readings, press the “REL” button to clear it directly before measuring.
- Inductance Measurement (L)
| Range | Resolution | Accuracy | Note |
|---|---|---|---|
| 2.000mH | 0.001mH | ± (1.5%+5) | Open circuit voltage about 5.0V |
| 20.00mH | 0.01mH | ||
| 200.0mH | 0.1mH | ||
| 2.000H | 0.001H | ||
| 20.00H | 0.01H | ||
| 100.0H | 0.1H |
Test Frequency: Approx. 1kHz
Application:
- Electrical maintenance teams
- Motor installation & service centers
- HVAC motor technicians
- Industrial manufacturing plants
- Pump installation contractors
- Control panel builders
- Automation & machine maintenance
- Power distribution systems
Package Content:
- Digital Motor Checker
- 1 set of Crocodile Clips
- Test Lead,
- Shockproof Cover,
- Carry Case,
- Manual
- Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Insulation Resistance Range | 500V (200M Ohm) / 1000V (2G Ohm) |
|---|---|
| DC Resistance | 0.1MOhm - 200 Ohm |
| Induction | 0.001 mH - 100.0H |
| Power Supply | 6x AA 1.5V Batteries |
| Dimensions (H x W x D) | 200 x 92 x 50 mm |
