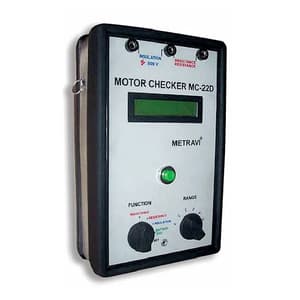

Metravi 0 - 1000mH Digital Motor Checker, MC-22D
Roll over the image to zoom in
Key Features
- Product Type: Motor Checker
- Inductance Resolution: 1mH to 0.001mH
- Resistance Range: 0 – 200 / 20 / 6 / 2 / 600m / 200m Ohms
- Power Source: Battery Operated
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹37,913 (Incl. of all taxes)
₹32,130 + ₹5,783 GST (18%)
MRP was MRP ₹47,250
Save 32%
5 Business Days
1
90303900
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Digital Motor Checker with insulation resistance test of 1000V
- Micro Controller based diagnostic tool for Electrical Engineers
- Indentifies Open and Short Circuits / Loose Connections In a winding coil
- Detect Rotor Bar problems without dismounting the motor
- Low Battery indication
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Inductance Range | 0–1000mH / 300mH / 100mH / 30mH / 10mH / 3mH |
|---|---|
| Inductance Resolution | 1mH to 0.001mH |
| Insulation Resistance Range | 0 to 20M Ohms at 500V DC |
| Resolution | 0.1M Ohms |
| Resistance Range | 0 – 200 / 20 / 6 / 2 / 600m / 200m Ohms |
| Resistance Resolution | 0.1 Ohms |
| Power Source | Battery Operated |
| Display | LCD |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 6 |
