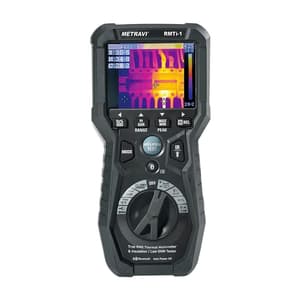

Metravi 1000V / 2000 Ohms Pro Rotating Machine Tester With Built-In Thermal lmager, T-RMS Multimeter, Data logger, RMTi-1
Roll over the image to zoom in
Key Features
- Product Type: Motor Checker
- Sampling Time: 3 times/sec
- Infrared Resolution: 80 x 80 Pixels
- Image Frequency: 50Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹96,950 (Incl. of all taxes)
₹82,161 + ₹14,789 GST (18%)
MRP was MRP ₹1,20,825
Save 32%
5 Business Days
1
90303900
Download Metravi CatalogueNot available
Highlights
While testing a motor the important parameters to test are the Insulation Resistance, Winding Resistance, Temperature of the Motor and all Electrical Parameters like the current, voltage and the voltage of the Variable Frequency Drive. Measuring these parameters enables the user to know how efficiently the motor is working and also to decide upon the pre-emptive maintenance of the motor.

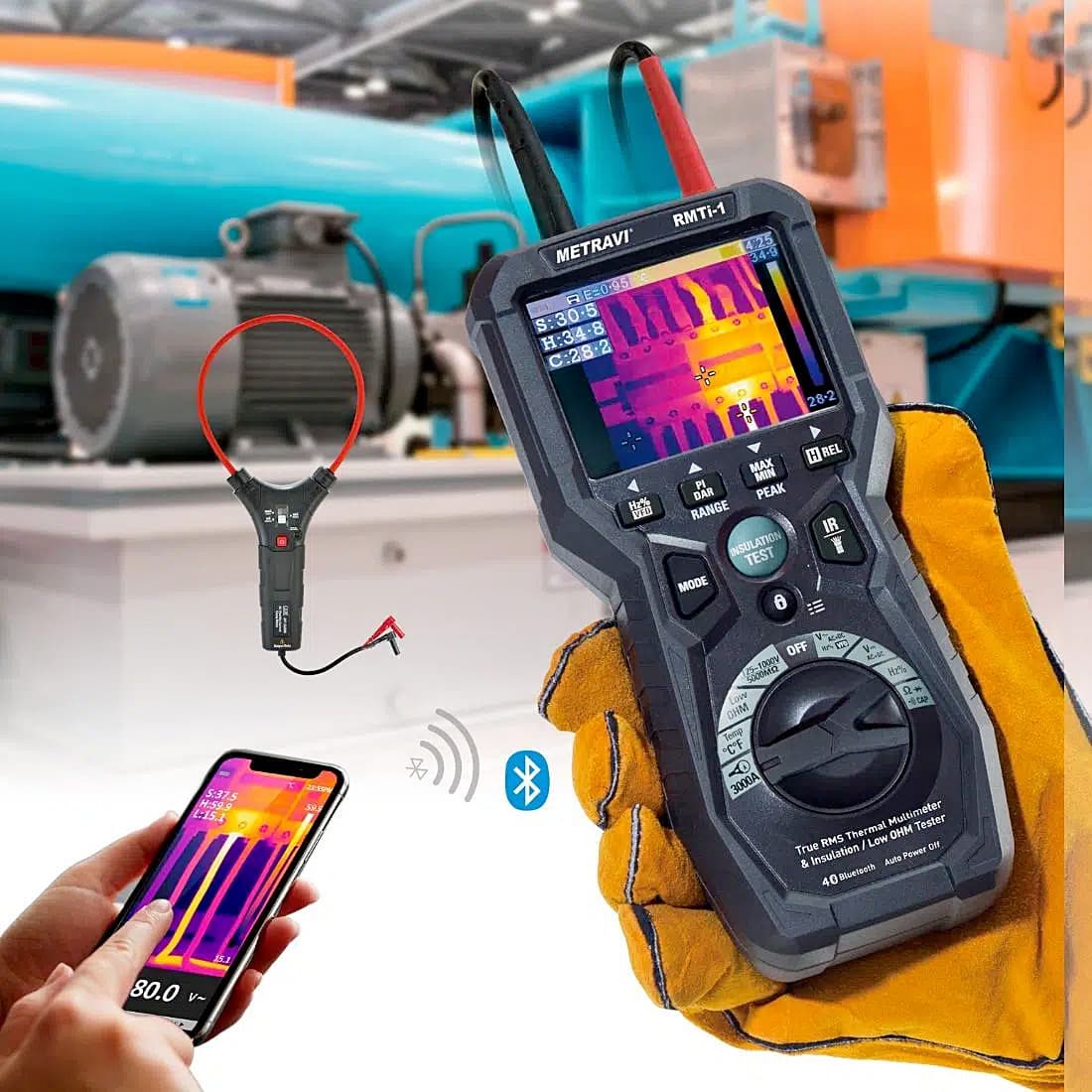

The Metravi RMTi-1 is a combination of Digital Multimeters that can work on VFD, Digital Insulation. Resistance Tester with Polarisation Index and DAR measurement, Low Resistance measurement using 4 wire method and a Thermal Imager. The instrument has bluetooth to connect it to your mobile device so that you can record the readings on the go. Not to mention it has a Data Logger and a K type thermocouple that can be used to measure temperature.

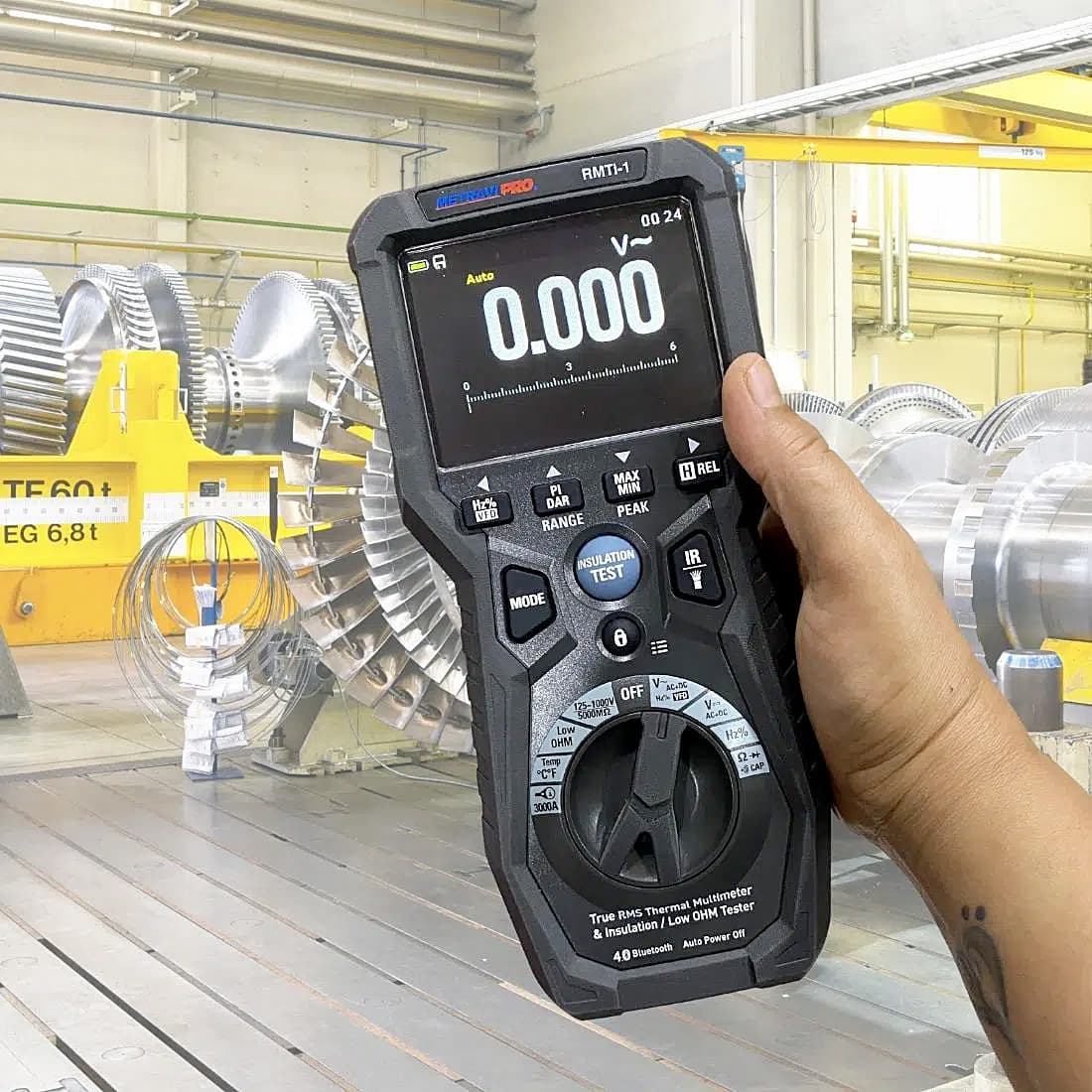

A professional, True RMS Multimeter and Insulation Tester with built-in Thermal Imager, featuring a TFT color LCD display, provides fast A/D converting sampling time and high accuracy, the RMTi-1 makes it easy to find and solve problems of production equipment. It helps in taking measurements safely with a double-moulded plastic housing and IP65 waterproof features.
Features:
- 6000 Count 3.5’’ TFT Colour LCD Display

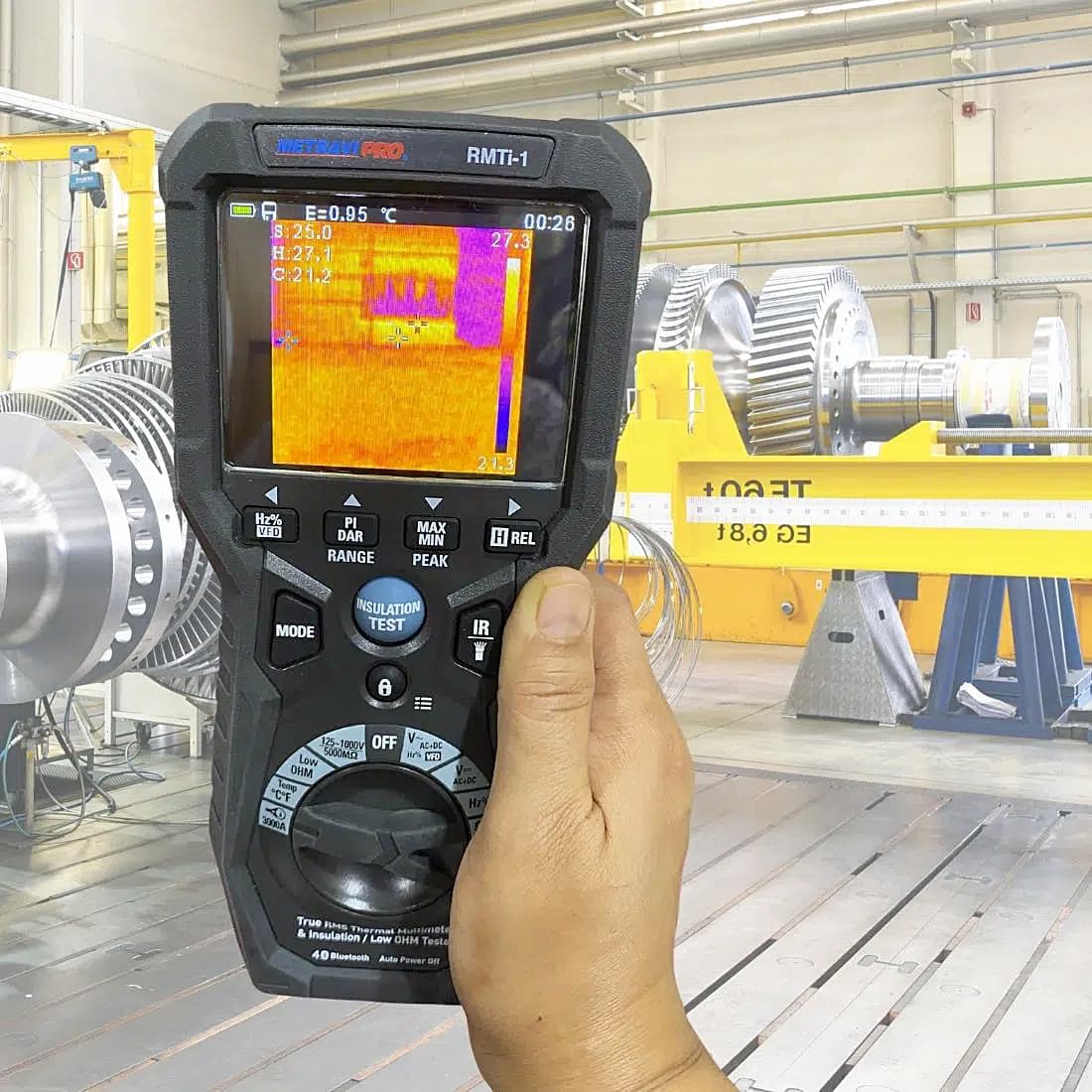

- Built-in Thermal Imager with Max, Min and Center Crosshair Targeting
- 50Hz Fast Thermal Image Frame Rate
- DC Voltage
- AC, AC+DC TRMS Voltage
- VFD (Variable Frequency Drive) measurements
- Low Ohms measurements
- Flexible Clamp or Coil can be used to measure high currents
- Resistance and Continuity Test
- Diode & Continuity test
- Capacitance
- Bargraph
- Auto Power Off
- Frequency
- Duty Cycle
- Temperature with K-Type Probe
- Insulation Tester
- PI/DAR Test
- Data Logger Function and Recall
- Re-chargeable battery and battery charger
Specification:
| Temperature Range |
-20°C to 260°C |
| Temperature Accuracy |
±3% |
| DC Voltage Range |
0-600mV/6V/60V/600V/1000V |
| DC Voltage Resolution |
0.1mV to 1V |
| DC Voltage Accuracy |
±0.5% |
| AC Voltage Range |
0-6V/60V/600V/1000V |
| AC Voltage Resolution |
0.001V to 1V |
| AC Voltage Accuracy |
±1.2% |
| Resistance Range |
0-600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Resistance Resolution |
0.1Ω to 0.01MΩ |
| Resistance Accuracy |
±1.0% |
| Frequency Range |
0-60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz |
| Frequency Resolution |
0.01Hz to 0.01MHz |
| Frequency Accuracy |
±0.2% |
| Duty Cycle Range |
10% to 90% |
| Capacitance Range |
0–60nF/600nF/6uF/60uF/600uF/6000uF |
| Capacitance Resolution |
0.01nF to 1μF |
| Capacitance Accuracy |
±3.0% |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | TFT LCD display |
|---|---|
| Colour | Black |
| Power Source | Battery Operated |
| Battery Type | Li-Ion Rechargeable |
| Polarization Index Test | PI |
| Dielectric Absorption Ratio | DAR |
| Sampling Time | 3 times/sec |
| Field of View (FoV) | 21°x 21°/ 0.5m |
| Spatial Resolution (IFOV) | 4.53mrad |
| Infrared Resolution | 80 x 80 Pixels |
| Thermal Sensitivity (NETD) | <0.1°C at 30°C |
| Image Frequency | 50Hz |
| Focus Mode | Focus-Free |
| Focal Length | 7.5 mm |
| Spectral Range | 8-14μm |
| Focal Plane Array (FPA) | Uncooled Microbolometer |
| Certifications | CAT III 1000V, CAT IV 600V, Pollution Grade 2, IEC/EN-61010-1, IEC/EN-61326-1, IEC/EN-61557-1-2-4 |
