HTC 10A Handheld DC Resistance Tester, MO-5252
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Resistance range: 10.0μO~50.00 KO
- Measuring current: 10A, 5A, 1A, 0.1A, 10 mA, 1 mA
- Data storage: 500 groups
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹45,274 (Incl. of all taxes)
₹38,368 + ₹6,906 GST (18%)
MRP was MRP ₹47,960
Save 20%
5 Business Days
1
90303900
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
Mainly used for measurement of transformation de resistance, transformer winding resistance, network connectivity, cable conductor resistance, contact resistance of switches, connectors, relays, winding, motor, transformers winding resistence and metal riveting resistance, metal component coupling between resistance test, low resistance testing, contact resistance testing, Full colour display, etc..

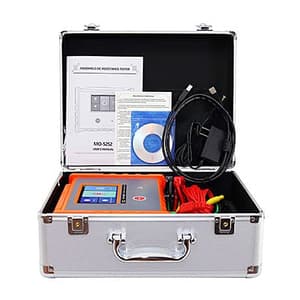

Package Contents:
- Kelvin Test Lead (Red 5M, Black 5M),
- Charger,
- User manual.
Technical Data:
| Range | Accuracy | Resolution | Measuring current |
| 10.0 μΩ ~ 1000.0 μΩ | +0.2%FS ±10 dgt | 0.1 μΩ | 10A |
| 1.00 mΩ~100.00mΩ | +0.2%FS ±10 dgt | 0.01 mΩ | |
| 100.0 mΩ~1000.0mΩ | +0.2%FS ±10 dgt | 0.1 mΩ | 5A |
| 1.000 Ω~10.000Ω | +0.2%FS ±10 dgt | 0.001 Ω | 1A |
| 10.00 Ω~100.00Ω | +0.2%FS ±10 dgt | 0.01 Ω | 0.1A |
| 100.0 Ω~1000.0Ω | +0.2%FS ±10 dgt | 0.1 Ω | 10mA |
| 1.000 KΩ~10.00KΩ | +0.2%FS ±10 dgt | 0.001 KΩ | 1mA |
| 10.00 KΩ~50.00KΩ | +0.2%FS ±20 dgt | 0.01 mΩ |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance range | 10.0μO~50.00 KO |
|---|---|
| Measuring current | 10A, 5A, 1A, 0.1A, 10 mA, 1 mA |
| Maximum short circuit current | 10A |
| Functional protection | Yes |
| Self discharge | Yes |
| Overload protection | Yes |
| Data storage | 500 groups |
| View Data | Data access function |
| LCD size | 108 x 65 mm |
| Power Source | DC 12.6V 250mAh Batteries |
| Dimension | 240 (H) x 188 (W) x 85 (D) mm |
