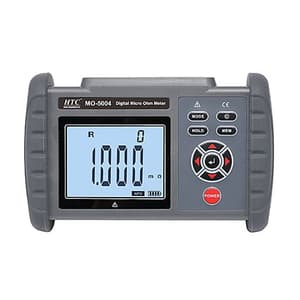

HTC 30k Ohm Digital Micro Ohm Meter, MO-5004
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Low battery indication: Less than approx 3.7V
- Sampling rate: 2 times/sec.
- Operation mode: Manual range
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,571 (Incl. of all taxes)
₹13,196 + ₹2,375 GST (18%)
MRP was MRP ₹16,495
Save 20%
5 Business Days
1
90303900
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Large LCD Display.
- 500 Group Data Storage.
- APO.
- IEC 61010-1, Cat III.

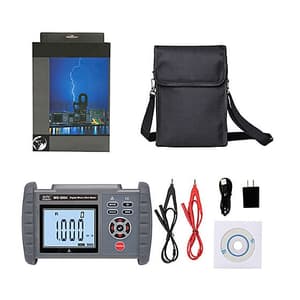

Package Contents:
- Kelvin Test Lead (Red 3M, Black 2M),
- Charger,
- User Manual.
Technical Data:
| Range | Resolution | Accuracy | Maximum test current |
| 10µΩ ~100.00mΩ | 10µΩ | ± 0.1% FS ±20dgt | 1.2A |
| 100.1mΩ~1000.0mΩ | 0.0001Ω | 1.2A | |
| 1.001Ω~10.000Ω | 0.001Ω | 1.2A | |
| 10.01Ω~100.00Ω | 0.01Ω | 0.5A | |
| 100.1Ω~1000.00Ω | 0.0001KΩ | 0.05A | |
| 1.001KΩ~10.000KΩ | 0.001KΩ | 5mA | |
| 10.01KΩ-30.00 KΩ | 0.01KKΩ | 0.5mA |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Low battery indication | Less than approx 3.7V |
|---|---|
| Functional protection | Yes |
| Sampling rate | 2 times/sec. |
| Operation mode | Manual range |
| Max. display | 1,999 |
| LCD Size | 75 x 52 mm |
| Power Source | DC 3.7V 2000 mAh Batteries |
| Dimension | 187 (H) x 119 (W) x 50 (D) mm |
