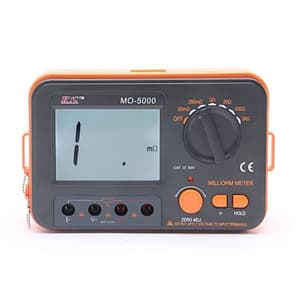

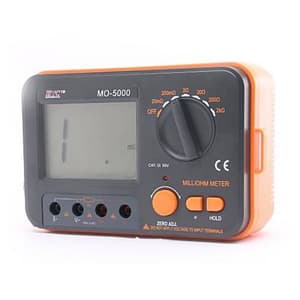

HTC 20m to 2k Ohm Milli Ohm Meter, MO-5000
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Sampling rate: 3 times/sec.
- Operation mode: Manual range
- Max. display: 1,999
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,865 (Incl. of all taxes)
₹8,360 + ₹1,505 GST (18%)
MRP was MRP ₹10,450
Save 20%
5 Business Days
1
90303900
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Large LCD Display for easy reading.
- 4 wire testing, capable of testing extreme low resistance.
- Accurate measurement of conductor, electric heading elements & solder point.
- High measurement range of 0.01mΩ~2kΩ at 6 ranges.
- Strong anti-magnetic & anti-jamming functions.
- Full function Protection.

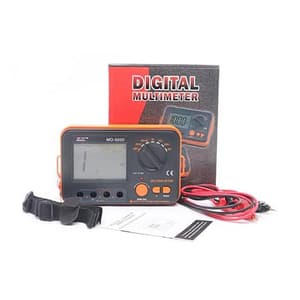

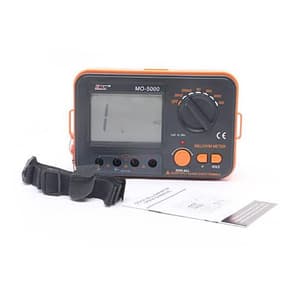

Package Contents:

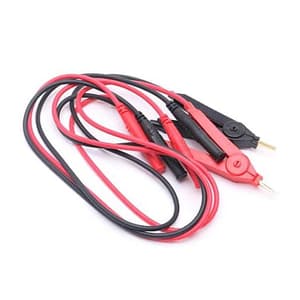

- 4-Wire Test Lead,
- Shoulder Strap,
- Manual.
Technical Data
| Range | Resolution | Accuracy | Measuring Current |
| 20mΩ | 0.01mΩ | ±0.5% of rdg ± 3 digits | Approx. 100mA |
| 200mΩ | 0.1mΩ | ±0.5% of rdg ± 3 digits | Approx. 50mA |
| 2Ω | 1mΩ | ||
| 20Ω | 10mΩ | ||
| 200Ω | 100mΩ | ||
| 2kΩ | 1Ω |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Low battery indication | Less than approx. 7.5V |
|---|---|
| Functional protection | Yes |
| Sampling rate | 3 times/sec. |
| Operation mode | Manual range |
| Max. display | 1,999 |
| LCD size | 75 x 52 mm |
| Power Source | AA 1.5V x 6 or external DC 9V power Source |
| Power consumption | Quiescent current approx. 50mA |
| Dimension | 176 (H) x 116 (W) x 63 (D) mm |
