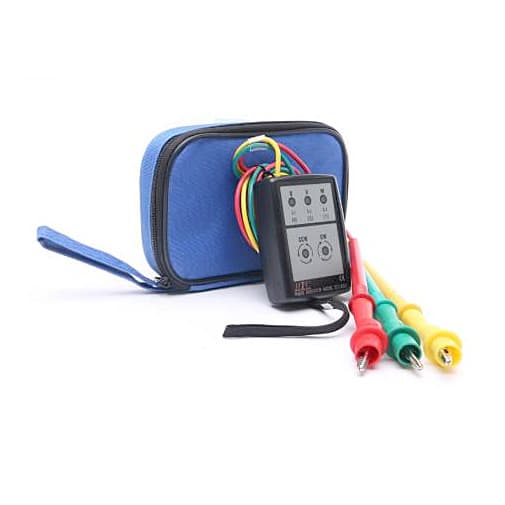

HTC 200 - 480V Phase Sequence Indicator, ST-852
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Operational Voltage: 200~480V (3 Phase AC)
- Withstand Voltage: 4000V for 1 minute
- Measuring Frequency Range: 20~400Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹935 (Incl. of all taxes)
₹792 + ₹143 GST (18%)
MRP was MRP ₹990
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Time Limit for Continuous measurement:
- Less than 60 minutes at 200 VAC
- Less than 40 minutes at 400 VAC

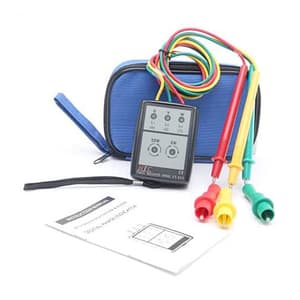

Package Contents:
- Test Lead (Attached To Meter),
- Alligator Clips,
- Carrying Case,
- Manual.
Technical Data:
| Measuring Result | Open Phase Check by LED | Phase order check by LED | Buzzer |
| Current Phase (CW) | All 3 Orange LED are Lit | Green LED is Lit | Intermittent beep |
| Reverse Phase (CCW) | All 3 Orange LED are Lit | Red LED is Lit | Continuous beep |
| Open Phase (One Phase Only) | Orange LED for Open Phase are off | Both Green & red LED are off | -- |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operational Voltage | 200~480V (3 Phase AC) |
|---|---|
| Withstand Voltage | 4000V for 1 minute |
| Measuring Frequency Range | 20~400Hz |
| Dimension | 85 (H) x 64 (W) x 23 (D) mm |
