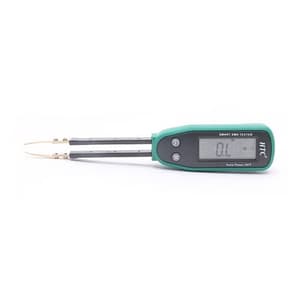

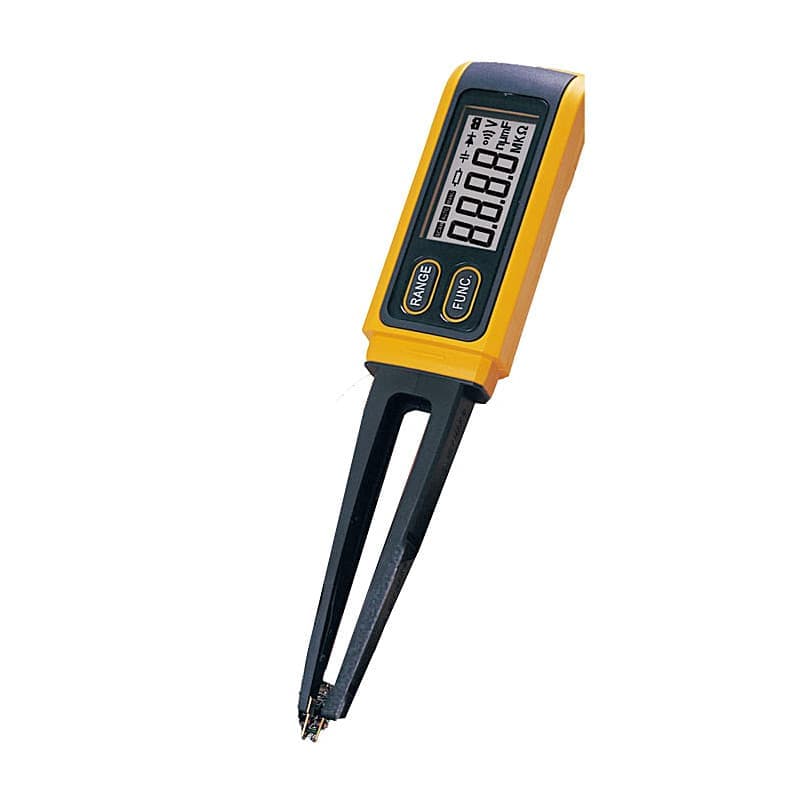

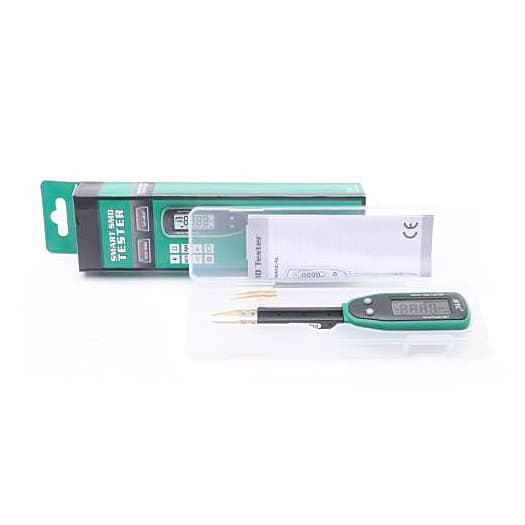

HTC 30mF / 30M Ohm Pen RC Meter, SMD Tester
Roll over the image to zoom in
Key Features
- Product Type: SMD Tester
- Diode Check: Open Voltage : 2.8V
- Testing Current: 2mA
- Power: CR 2032 (3V x 1)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,020 (Incl. of all taxes)
₹1,712 + ₹308 GST (18%)
MRP was MRP ₹2,140
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Diode Test
- Auto Power Off (APO)
- Low Battery indication
Capacitance:
| Range | Resolution | Accuracy |
| 3nF | 1pF | ±2.5% of rdg + 3 digits |
| 30nF | ||
| 300nF | ||
| 3µF | ||
| 30µF | ||
| 300µF | ±3% of rdg + 3 digits | |
| 3mF | ||
| 30mF |
Resistance:
| Range | Resolution | Accuracy |
| 300Ω | 0.1Ω | ±1% of rdg + 2 digits |
| 3KΩ | ||
| 30KΩ | ||
| 300KΩ | ||
| 3MΩ | ||
| 30MΩ | ±1.2% of rdg + 3 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Diode Check | Open Voltage : 2.8V |
|---|---|
| Testing Current | 2mA |
| Power | CR 2032 (3V x 1) |
| Continuity Check | When the resistance is less than 30O, the buzzer is sounded. |
