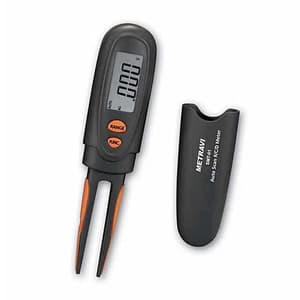

Metravi 600mV / 0 - 600 Ohms Digital SMT Component Tester, SMT-01
Roll over the image to zoom in
Key Features
- Product Type: SMD Tester
- DC Voltage Range: 0-600mV/6V/50V
- AC Voltage Range: 0-600mV/6V/50V
- Sampling Rate: 2 times per second
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,657 (Incl. of all taxes)
₹3,947 + ₹710 GST (18%)
MRP was MRP ₹5,805
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
SMT Component tester that can measure Capacitance and Resistance values of SMT components, it can also measure AC/DC Voltage, continuity and Diode test.
Features:
- Display: 6000 Counts LCD
- Auto Power Off
- Over-range Indication
- Low Battery Indication
- Auto-scan function for Resistance, Capacitance, and Diode Test
- The SMT Tweezers can be replaced by Test Leads for DMM Function
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | LCD |
|---|---|
| Colour | Black |
| DC Voltage Range | 0-600mV/6V/50V |
| DC Voltage Resolution | 0.1mV to 10mV |
| DC Voltage Accuracy | ±0.8% |
| AC Voltage Range | 0-600mV/6V/50V |
| AC Voltage Resolution | 0.1mV to 10mV |
| AC Voltage Accuracy | ±1.0% |
| Resistance Range | 0-600/6k/60k/600k/6M/60M Ohms |
| Resistance Resolution | 0.1 to 10k Ohms |
| Sampling Rate | 2 times per second |
| Resistance Accuracy | ±0.8% |
| Capacitance Range | 0–6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
| Capacitance Resolution | 1pF to 10μF |
| Capacitance Accuracy | ±3.0% |
| Polarity | Automatic |
| Power Source | Battery Operated |
| No of Batteries | 2 |
| Battery Type | Alkaline |
| Battery Size | LR44 |
| Auto-scan Function | Auto-scan function for Capacitance, Auto-scan function for Diode Test, Auto-scan function for Resistance |
