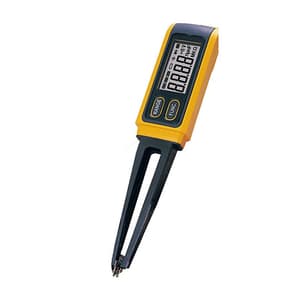

V&A Instrument 5-5/6 Digits / 5999 Counts Auto Scan Pen R/C Meter for SMD, VA505B

• Automatic recognize resistance, capacitance and diode
• Smart tweezer easy to measure the small components of SMD
• Measure resistance Max up to 60M and capacitance Max up to 600μF quickly
• Environment conditions
• MAX. Voltage between terminals and earth ground: 50V DC or 36V A:C rms
• Display: 5-5/6 digits LCD display with max. reading 5999
• Over Range indication: LCD will display “OL”
• Low battery indication: The “” is displayed when the battery is under the proper operation range
• Auto power off: If there is no key been operated for 10 minutes, the meter will auto power off to save battery energy.
• It is an ideal tool for electronic maintenance, electroni industry and homework.
• Resistance: 300Ω/3KΩ/30KΩ/300KΩ/3MΩ/30MΩ ±(1%+5), 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(1%+5)
• Capacitance: 3nF/30nF/300nF/3μF/30μF/300μF/3mF/30mF±(3%+5), 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF±(3%+5)

General Maintenance:

• Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
• Battery replacement: Before replacing the battery, disconnect test leads from any circuit under test, turn the meter off and remove test leads from the input terminals.

Use the following procedure:

• When the battery voltage drop below proper operation range the symbol will appear on the LCD display and the battery need to be replaced.
• Press the battery cover and towards arrowhead direction to open the battery cover.
• Replace the battery with two new 1.5V batteries (AG13).
• Replace the battery cover.
