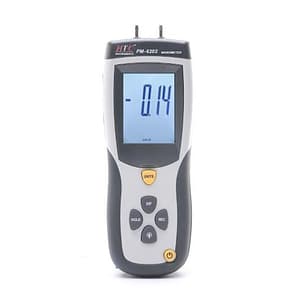

HTC 5 PSI Manometer (Data Logging), PM-6205
Roll over the image to zoom in
Key Features
- Product Type: Manometer
- Power: 9V (6F22) X 1
- Accuracy: ±0.3% FSO (25°C)
- Repeatability: ±0.2%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,596 (Incl. of all taxes)
₹8,132 + ₹1,464 GST (18%)
MRP was MRP ₹10,165
Save 20%
5 Business Days
1
90261090
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Large Dual LCD with backlight.
- Data hold.
- Max./Min. Average value with relative time stamp.
- Zero adjust, offset & Different function.
- Auto Power Off.
- Low battery indication.
- USB Computer Interface (Advanced Software program for all windows)
| Unit | Range | Resolution |
| inH2O | 55.40 | 0.01 |
| Psi | 2.000 | 0.001 |
| mbar | 137.8 | 0.1 |
| KPa | 13.79 | 0.01 |
| inHg | 4.072 | 0.001 |
| mmHg | 103.4 | 0.1 |
| ozin2 | 32.00 | 0.01 |
| ftH2O | 4.612 | 0.001 |
| cmH2O | 140.6 | 0.1 |
| kgcm2 | 0.140 | 0.001 |
| bar | 0.13 | 0.001 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Dual LCD |
|---|---|
| Power | 9V (6F22) X 1 |
| Accuracy | ±0.3% FSO (25°C) |
| Repeatability | ±0.2% |
| Linearity / Hysteresis | ±0.29% FSO |
| Pressure Range | ± 2 psi |
| Maximum Pressure | ± 10 psi |
| Response Time | 0.5 Seconds typical |
| Low Battery Indicator | Yes |
| Over Range Indicator | Err.1 |
| Under Range Indicator | Err.2 |
| Operating Conditions | 0 to 50°C |
| Storage Conditions | 10 to 60°C |
