HTC 75 PSI Manometer, PM-6175
Roll over the image to zoom in
Key Features
- Product Type: Manometer
- Power: 9V (6F22) X 1
- Accuracy: ±0.3% FS
- Linearity / Hysteresis: ±0.1% FS
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,400 (Incl. of all taxes)
₹4,576 + ₹824 GST (18%)
MRP was MRP ₹5,720
Save 20%
5 Business Days
1
90261090
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Psi / in H2O / Mbar
- 11 Pressure Ranges
- Auto Pressure Off (APO)
- Backlight LCD

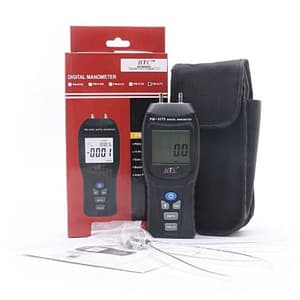

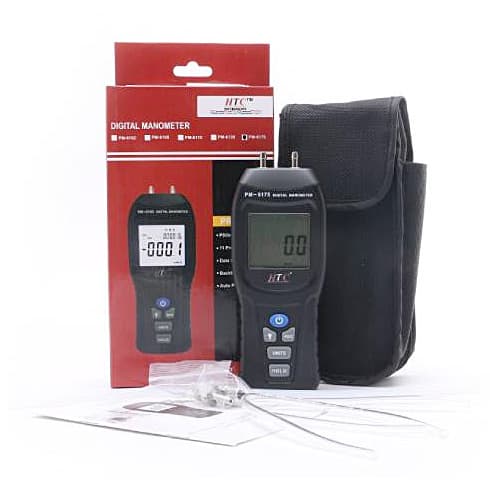

Package Contents:
- Soft Carrying Case,
- Soft Tube, 2 Pcs,
- Manual,
- Soft / Hard Tube 2 Pcs,
- Metal Gas Mouth 2 Pcs.
| Unit | Range | Res |
| inH20 | ±2078 | 1 |
| Psi | ±75.00 | 0.1 |
| mbar | ±5168 | 1 |
| KPa | ±517.1 | 0.1 |
| inHg | ±15.00 | 0.1 |
| mmHg | ±3878 | 1 |
| ozin2 | ±1200 | 1 |
| ftH2O | ±173.0 | 0.1 |
| cmH2O | ±5272 | 1 |
| kgcm2 | ±5.250 | 0.001 |
| bar | ±5.138 | 0.001 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | 9V (6F22) X 1 |
|---|---|
| Accuracy | ±0.3% FS |
| Linearity / Hysteresis | ±0.1% FS |
| Repeatability | ±0.25% FS |
| Over Range Indication | ERR1 or ERR2 |
| Pressure Connector | 1/8* (3.18mm) quick connector |
| Dimension | 140 (H) x 20 (W) x 50 (D) mm |
