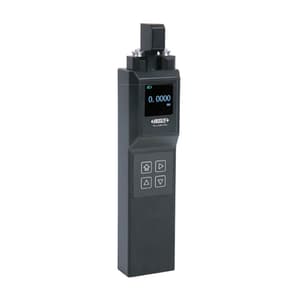

Insize 0.02 - 2 mm Handhold Laser Scan Micrometer, LDM-H02
Roll over the image to zoom in
Key Features
- Product Type: Laser Scan Micrometer
- Weight: 495 g
- Measuring Range: 0.02 - 2 mm
- Laser Wave Length: 650nm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,91,737 (Incl. of all taxes)
₹5,01,472 + ₹90,265 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure the outside diameter of cables, pipes and wires
- For transparent or non-transparent workpieces
- Unit: mm, inch, mil, pm

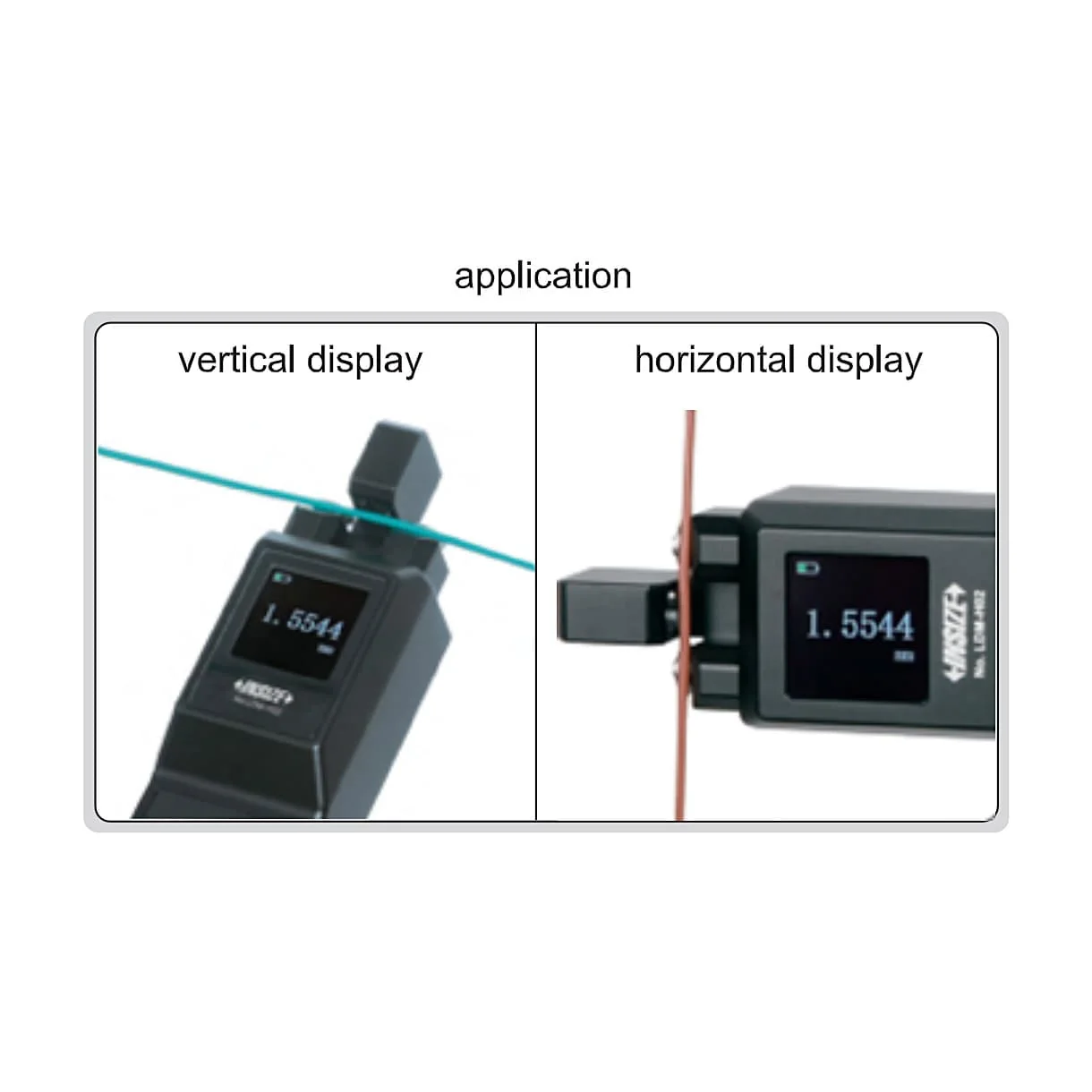

- Compact and portable, the reading can be displayed
- vertically or horizontally
Package Content:
- 1x Handhold Laser Scan Micrometer
- 3x Calibration Gauge (0.10±0.001mm, 0.30±0.001mm, 0.80±0.001mm)
- 1x AC/DC Adapter
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range | 0.02 - 2 mm |
|---|---|
| Resolution | 0.001 mm/0.0001 mm/0.00001 mm adjustable |
| Accuracy (at 25°C) | ±0.5μm |
| Repeatability (at 25°C) | 0.3μm |
| Laser Wave Length | 650nm |
| Measuring Speed | 800 time/s |
| Operation Temperature | 0 - 50°C |
| Operation Humidity | 35 - 85%RH without Condensation |
| Power | Built-in 7.4V Rechargeable Battery |
