Insize Automatic Laser Scan Micrometer, LDM-AT01
Roll over the image to zoom in
Key Features
- Product Type: Laser Scan Micrometer
- Weight: 50 kg
- Accuracy at 25°C: ±(0.5+10%D)μm, D is measuring diameter in mm
- Repeatability at 25°C: (0.3+5%D)μm, D is measuring diameter in mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,18,891 (Incl. of all taxes)
₹21,34,653 + ₹3,84,238 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Motorised rotation with adjustable speed.

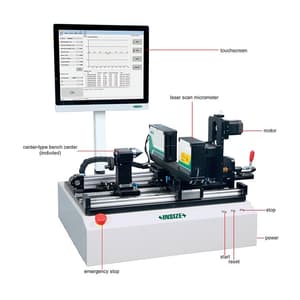

- Auto-moving laser scan micrometer.
- Measure the outer diameter, roundness & runout of workpieces at multiple sections.
Technical Data:

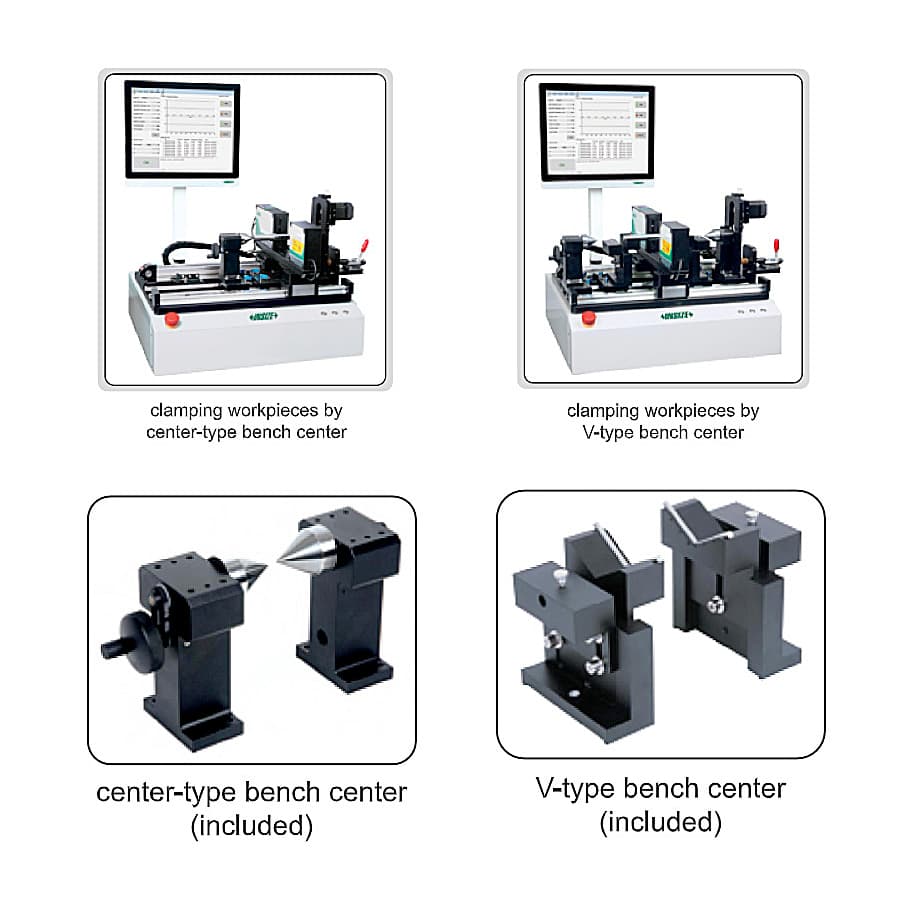

| Workpiece Clamping Mode | Center-type bench center (With center holes at the end) | V-type bench center (Without center holes at the end) | |
| Measuring Range of Workpieces | Length | 5 - 300 mm | 10 - 230 mm |
| Diameter | 3 - 60 mm | 10 - 60 mm | |
| Max. Weight | 20 Kg | 1.5 Kg |

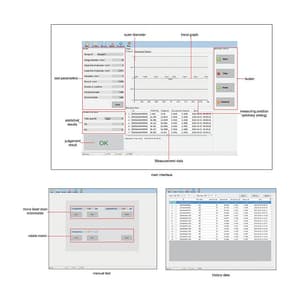

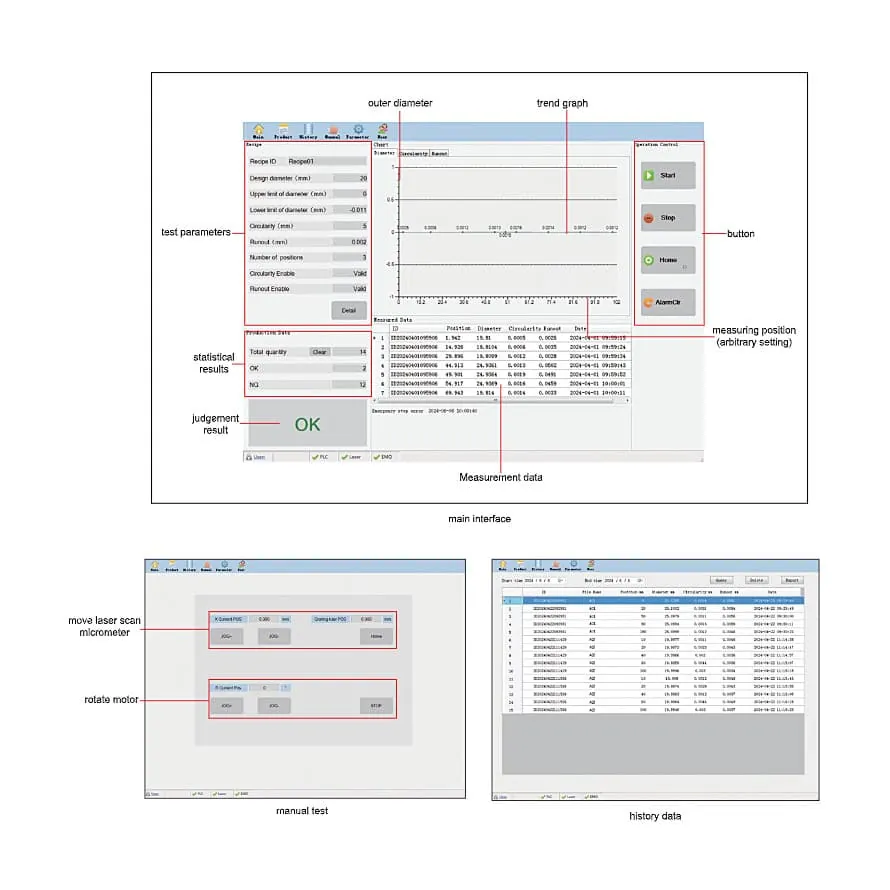

Measuring Software:
- Languages: English and Chinese
- Operating system: Windows 7
- Measures the outer diameter, roundness and runout of workpieces automatically, then the data, trend graphs and judgment results can be displayed in real time
- Auto-saving measurement data, query and export to EXCEL at any time
- Switch to manual test to move the laser scan micrometer and rotate the motor by hand
Package Content:
- 1x Automatice Laser Scane Micrometer
- 1x Center-type Bench Center
- 1x V-type Bench Center
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Accuracy at 25°C | ±(0.5+10%D)μm, D is measuring diameter in mm |
|---|---|
| Repeatability at 25°C | (0.3+5%D)μm, D is measuring diameter in mm |
| Runout Accuracy at 25°C | Less than or equal to 5μm |
| Size of Working Table | 400 x 200 mm |
| Driving Method | Motor Drive |
| Power Supply | 220V, 50/60Hz |
| Dimension (mm) | 750 x 600 x 900 mm |
