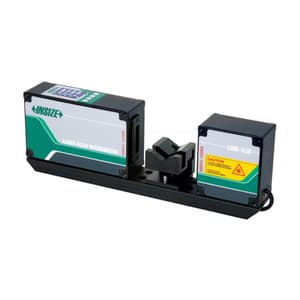

Insize 0.1 - 30 mm Laser Scan Micrometer, LDM-030
Roll over the image to zoom in
Key Features
- Product Type: Laser Scan Micrometer
- Weight: 5 kg
- Measuring Range: 0.1 - 30 mm
- Laser Wave Length: 650nm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,94,996 (Incl. of all taxes)
₹6,73,725 + ₹1,21,271 GST (18%)
Out of Stock
15 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

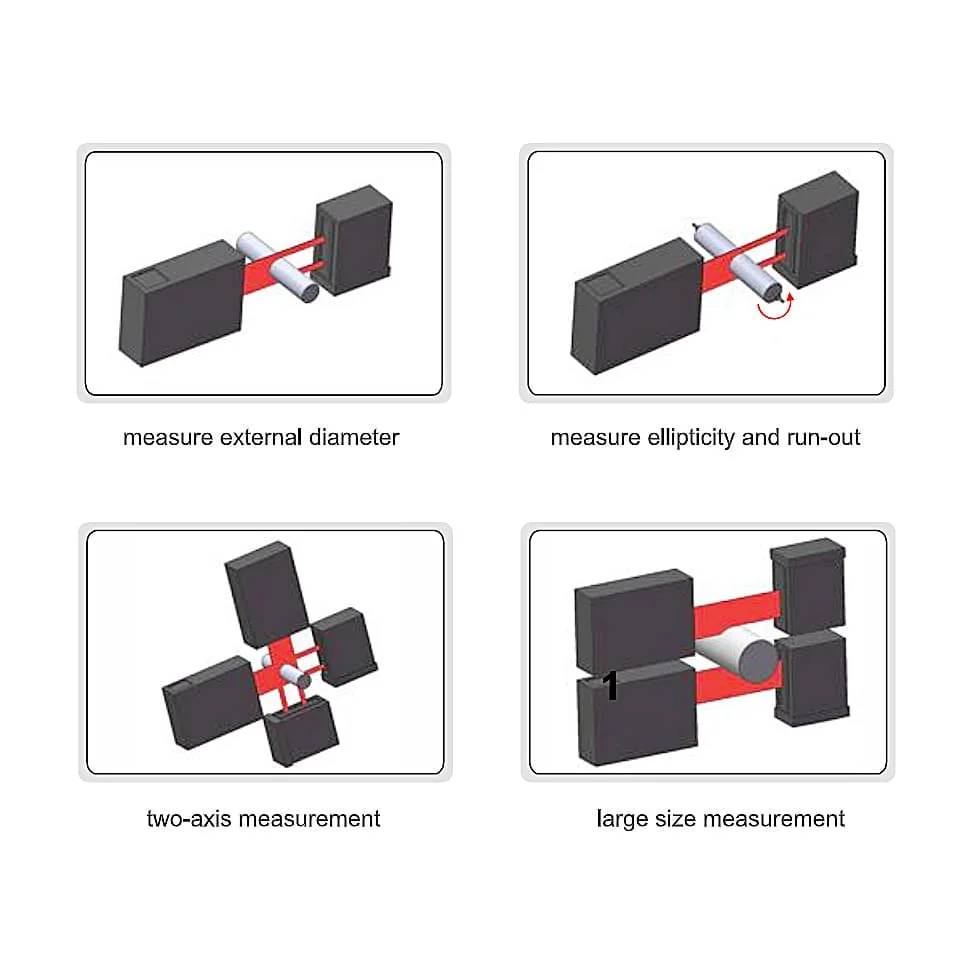

- Measure outer diameter, ellipticity, run-out, maximum diameter of tools, etc.
- Can be used for transparent or non transparent workpieces
- Tolerance measurement
- Online or offline measurement

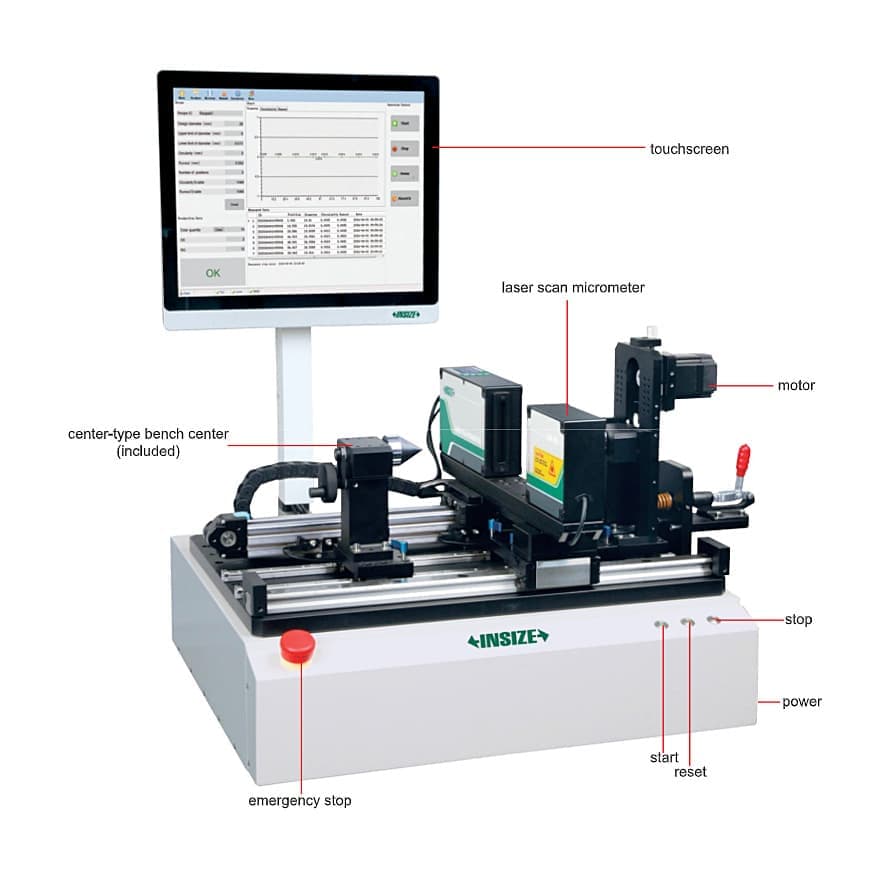

- Connected with computer, PLC, control box

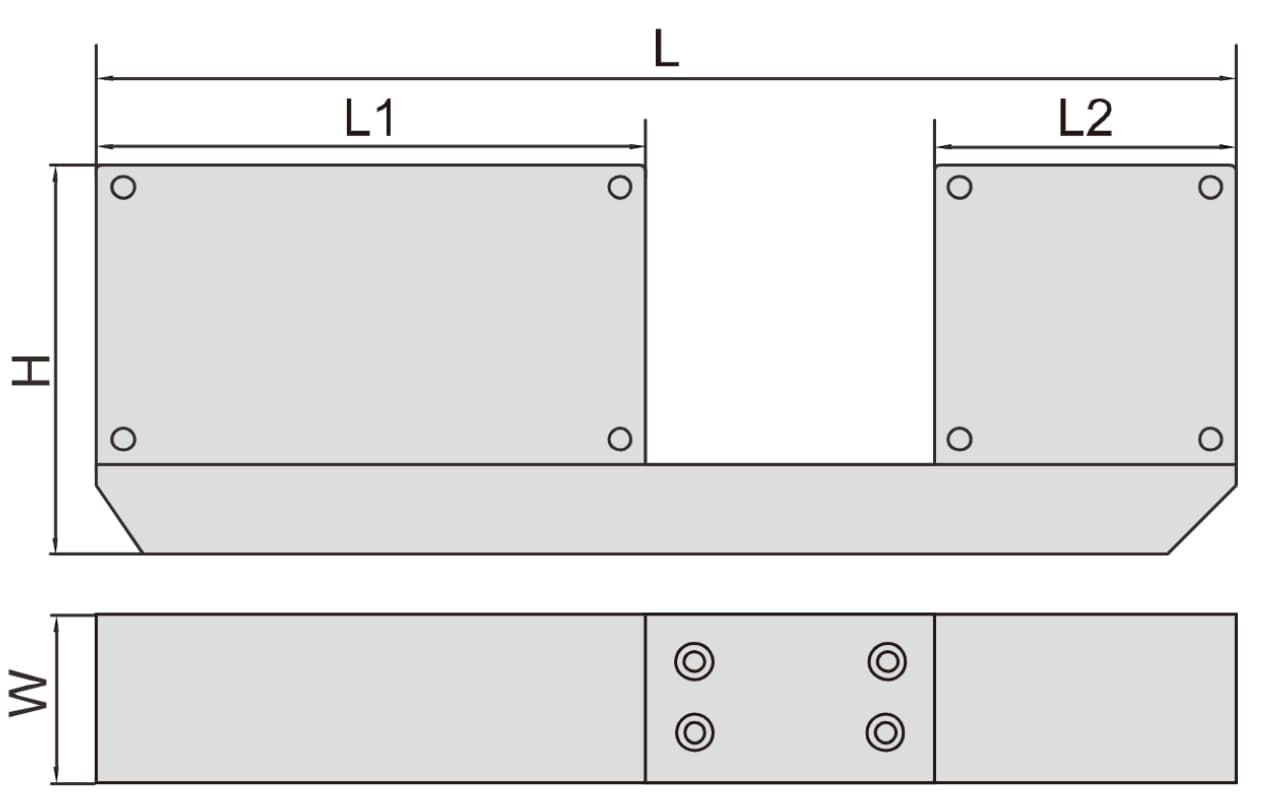

Dimension Measurement:
 |
|
| Length (L) | 351 mm |
| Width (W) | 52 mm |
| Height (H) | 120 mm |
| L1 | 170 mm |
| L2 | 95 mm |
Package Content:
- 1x Main Unit

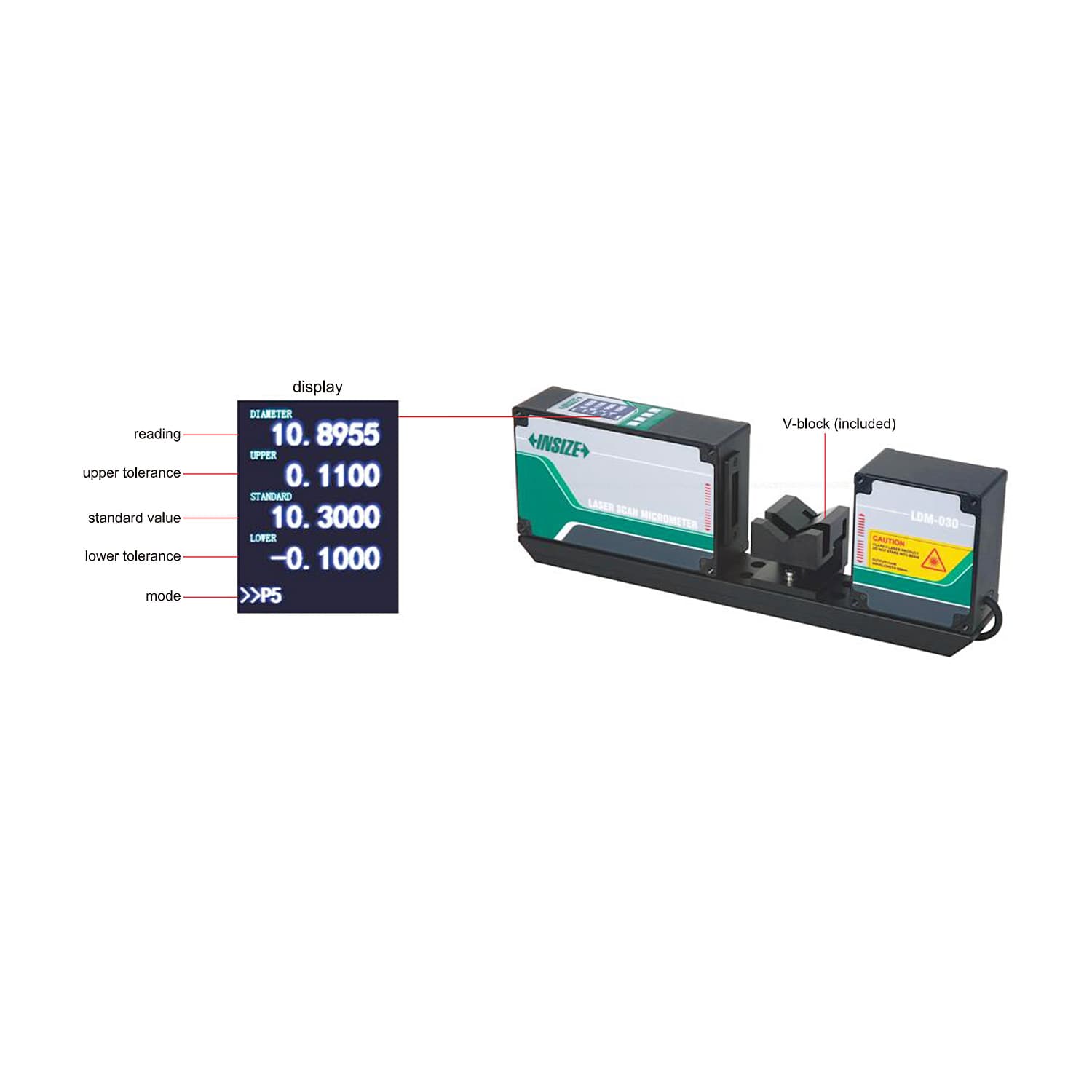

- 1x V-Block
- 1x AC/DC Adapter
- 1x RS485 Cable
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range | 0.1 - 30 mm |
|---|---|
| Resolution | 0.01/0.1/1/10/100μm Selectable |
| Accuracy (at 25°C) | ± (0.5+10%D)μm, D is Measuring Diameter in mm |
| Repeatability (at 25°C) | (0.3+5%D)μm, D is Measuring Diameter in mm |
| Laser Wave Length | 650nm |
| Measuring Speed | 800 time/s |
| Operation Temperature | 0 - 50°C |
| Operation Humidity | 35 - 85 RH without Condensation |
| Output | Dual Channel RS485 |
| Alarm Output | 24V, 1A |
| Power Supply | DC24V, 2A |
