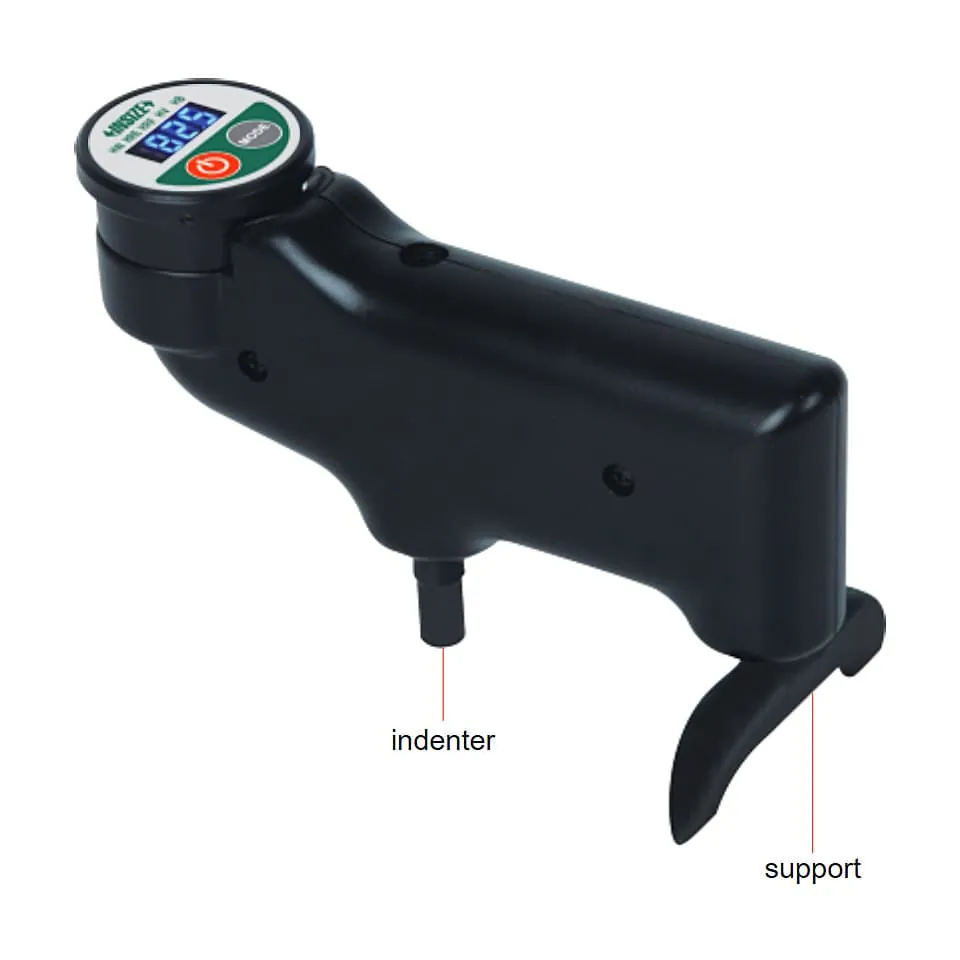

Insize 0 - 100HBa Digital Aluminum Hardness Tester, HDT-DB337
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 260 g
- Hardness Range: 0 - 100 HBa
- Effective Range: 40 - 90 HBa (Equal to 25~135 HBW)
- Min. Reading: 0.1 HBa
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹99,942 (Incl. of all taxes)
₹84,697 + ₹15,245 GST (18%)
MRP was MRP ₹1,20,996
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- To measure the hardness of workpieces made of pure aluminum, aluminum alloy, fiber reinforced plastic, hard plastic, etc.
- The support can be rotated, no need to disassemble
- Can be converted to HW, HRE, HRF, HV, HB values
- Full scale one key reset, no need to disassemble for external calibration
- According to ASTM B648, ASTM HD2583-2007
Package Content:
- 1x Digital Aluminum Hardness Tester
- 1x Full Scale Calibration Block
- 2x Hardness Test Block
- 1x Spare Pin
- 1x Wrench
- 1x Power Adapter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Hardness Range | 0 - 100 HBa |
|---|---|
| Effective Range | 40 - 90 HBa (Equal to 25~135 HBW) |
| Min. Reading | 0.1 HBa |
| Accuracy | ±2.0 HBa (at 42 ~ 52 HBa) / ±1.0 HBa (at 84 ~ 88 HBa) |
| Repeatability | ±2.5 HBa (at 42 ~ 52 HBa) / ±1.5 HBa (at 84 ~ 88 HBa) |
| Min. Workpiece Thickness | 1.5 mm |
| Dimension (mm) | 143 x 40 x 87 mm |
