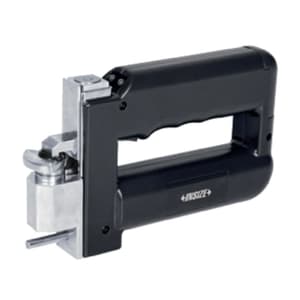

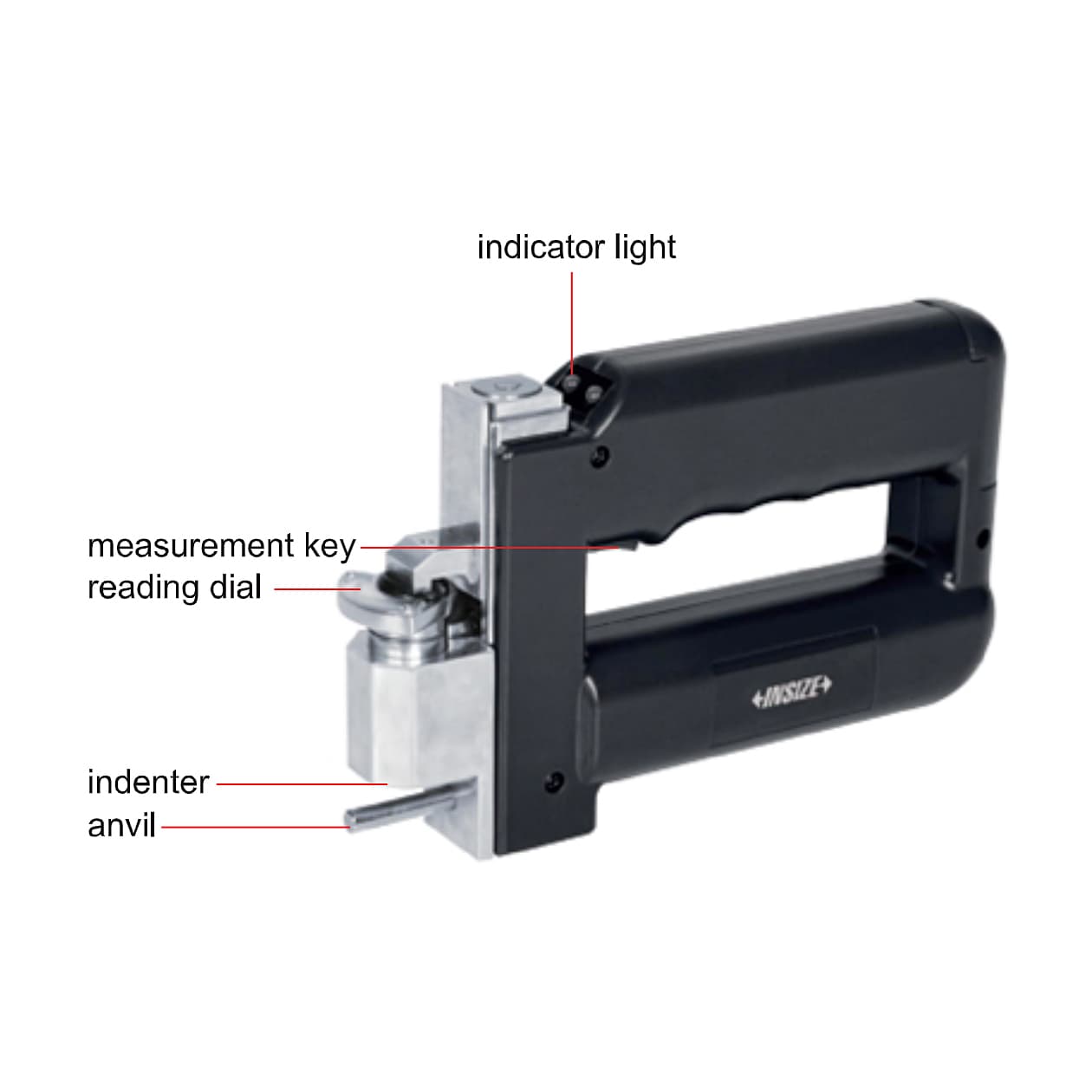

Insize 0 - 20HW Electric Aluminum Pointer Hardness Tester, ISHW-EH20
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 906 g
- Hardness Range: 0 - 20 HW
- Resolution: 1 HW
- Accuracy: ±0.5HW (at 5 - 18HW)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,49,613 (Incl. of all taxes)
₹1,26,791 + ₹22,822 GST (18%)
MRP was MRP ₹1,86,458
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- According to ASTM B647
- One-button Measurement
- To measure the hardness of soft metal such as aluminum profiles, tubes, plates, aluminum parts, copper alloy and other soft metals
- Easy to carry and read
- Using one-button measurement, micro servo motor as the power, accurate control of the applied force, improve the stability of the measurement
- The needle is made of special material for long life
What's Included in this Package:
| Main unit | 1 pc |
| Spare Indenter | 1 pc |
| Hardness Test Block | 1 pc |
| Calibration Wrench | 1 pc |
| Lithium Battery | 1 pc |
| Lithium Battery Charger | 1 pc |
| Hex Wrench | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Thickness Requirement of flat workpiece | 1 - 5 mm |
|---|---|
| Inner Diameter Requirement of Pipe Workpiece | >Ø10 mm |
| Wall Thickness Requirement of Pipe Workpiece | 1 - 5 mm |
| Hardness Range | 0 - 20 HW |
| Resolution | 1 HW |
| Accuracy | ±0.5HW (at 5 - 18HW) |
| Power Supply | Rechargeable Lithium Battery |
| Display Mode | Pointer |
| Dimensions (L x W x H) | 187 x 38 x 118 mm |
