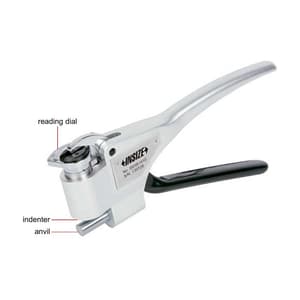

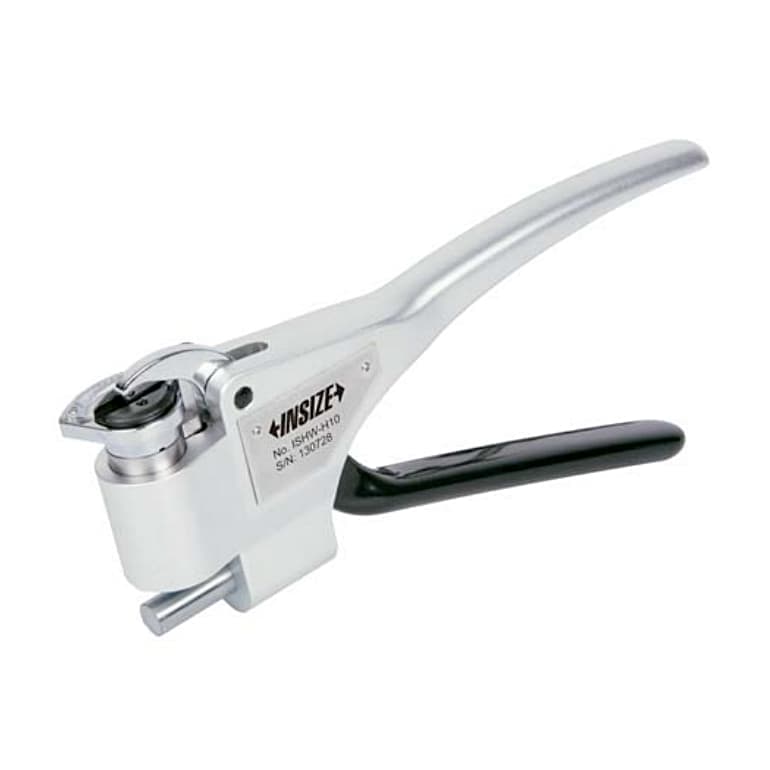

Insize 0 - 20HW Soft Brass Hardness Tester (Basic Type), ISHW-H14
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 500 g
- Hardness Range: 0 - 20 HW
- Min. Reading: 1 HW
- Accuracy: ±0.5HW (at 5 - 17HW)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹91,700 (Incl. of all taxes)
₹77,712 + ₹13,988 GST (18%)
MRP was MRP ₹1,11,017
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- To measure the hardness of soft metal such as aluminum alloy, copper, brass, soft steel, etc.
- According to ASTM B647-10 (2016)
What's Included in this Package:
| Main unit | 1 pc |
| Spare Indenter | 1 pc |
| Hardness Test Block | 1 pc |
| Wrench | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | For Soft Brass and Copper |
|---|---|
| Thickness Requirement of flat workpiece | 0.6 - 6 mm |
| Internal Diameter Requirement of Tube Workpiece | >Ø10 mm |
| Wall Thickness Requirement of Tube Workpiece | 0.6 - 6 mm |
| Hardness Range | 0 - 20 HW |
| Min. Reading | 1 HW |
| Accuracy | ±0.5HW (at 5 - 17HW) |
| Dimension | 205 x 30 x 95 mm |
