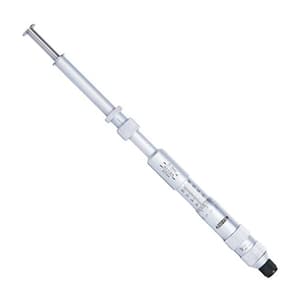

Insize 0 - 25 mm Groove Micrometer (Two-Directional Ratchet Stop), 3287-251B
Roll over the image to zoom in
Key Features
- Product Type: Groove Micrometer
- Range (mm): 0 - 25 mm
- Range (inside B): 1.6 - 26.5 mm
- Accuracy: 10μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹27,098 (Incl. of all taxes)
₹22,964 + ₹4,134 GST (18%)
MRP was MRP ₹31,895
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure width of grooves inside bores
- Graduation 0.01mm
- Two graduations for inside and outside measurements
- Non-rotating spindle
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

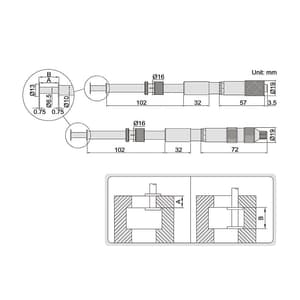

Specifications
| Type of Product | Groove Micrometer |
|---|---|
| Range (mm) | 0 - 25 mm |
| Range (inside B) | 1.6 - 26.5 mm |
| Accuracy | 10μm |
| Ød2 | 10 mm |
| Ød | 6.5 mm |
| Ød1 | 3 mm |
| Length (mm) | 90 mm |
