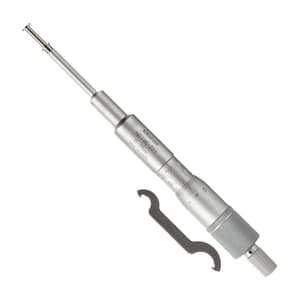

Mitutoyo 0 - 25 mm Non-rotating Spindle Type Groove Micrometer (Dia. 6.35mm Flange), 146-221
Roll over the image to zoom in
Key Features
- Product Type: Groove Micrometer
- Weight: 135 g
- Range (mm): 0 - 25 mm
- Range Inside: 1.6 - 26.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,869 (Incl. of all taxes)
₹16,838 + ₹3,031 GST (18%)
MRP was MRP ₹22,450
Save 25%
7 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Flanged spindle for measuring width, depth and location of grooves inside/ outside bores and tubes.
- Provided with two types of graduations for inside and outside measurements.
- Non-rotating spindle type has two-directional ratchet stop.

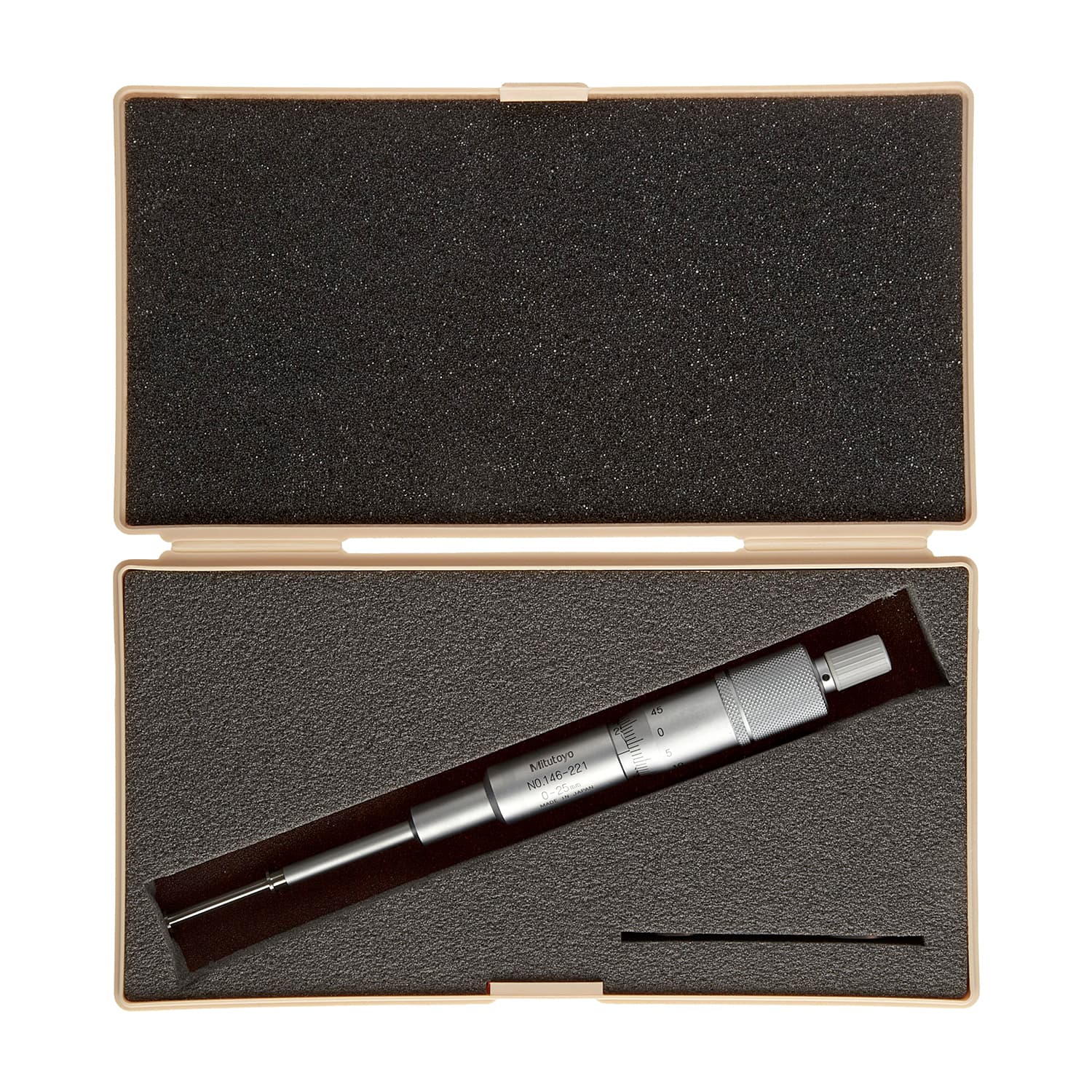

Package Content:
- 1x Groove Micrometer
- 1x Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Groove Micrometer |
|---|---|
| Range (mm) | 0 - 25 mm |
| Range Inside | 1.6 - 26.5 mm |
| Graduation | 0.01 mm |
| Flange | Ø6.35 mm |
| Measuring Force | 0.7 - 1.2N |
