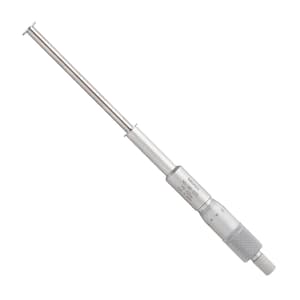

Mitutoyo 75 - 100 mm Non-rotating Spindle Type Groove Micrometer (Dia. 12.7 mm Flange), 146-225
Roll over the image to zoom in
Key Features
- Product Type: Groove Micrometer
- Weight: 160 g
- Range (mm): 75 - 100 mm
- Range Inside: 76.5 - 101.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,356 (Incl. of all taxes)
₹21,488 + ₹3,868 GST (18%)
MRP was MRP ₹28,650
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Flanged spindle for measuring width, depth and location of grooves inside/ outside bores and tubes.
- Provided with two types of graduations for inside and outside measurements.
- Non-rotating spindle type has two-directional ratchet stop.

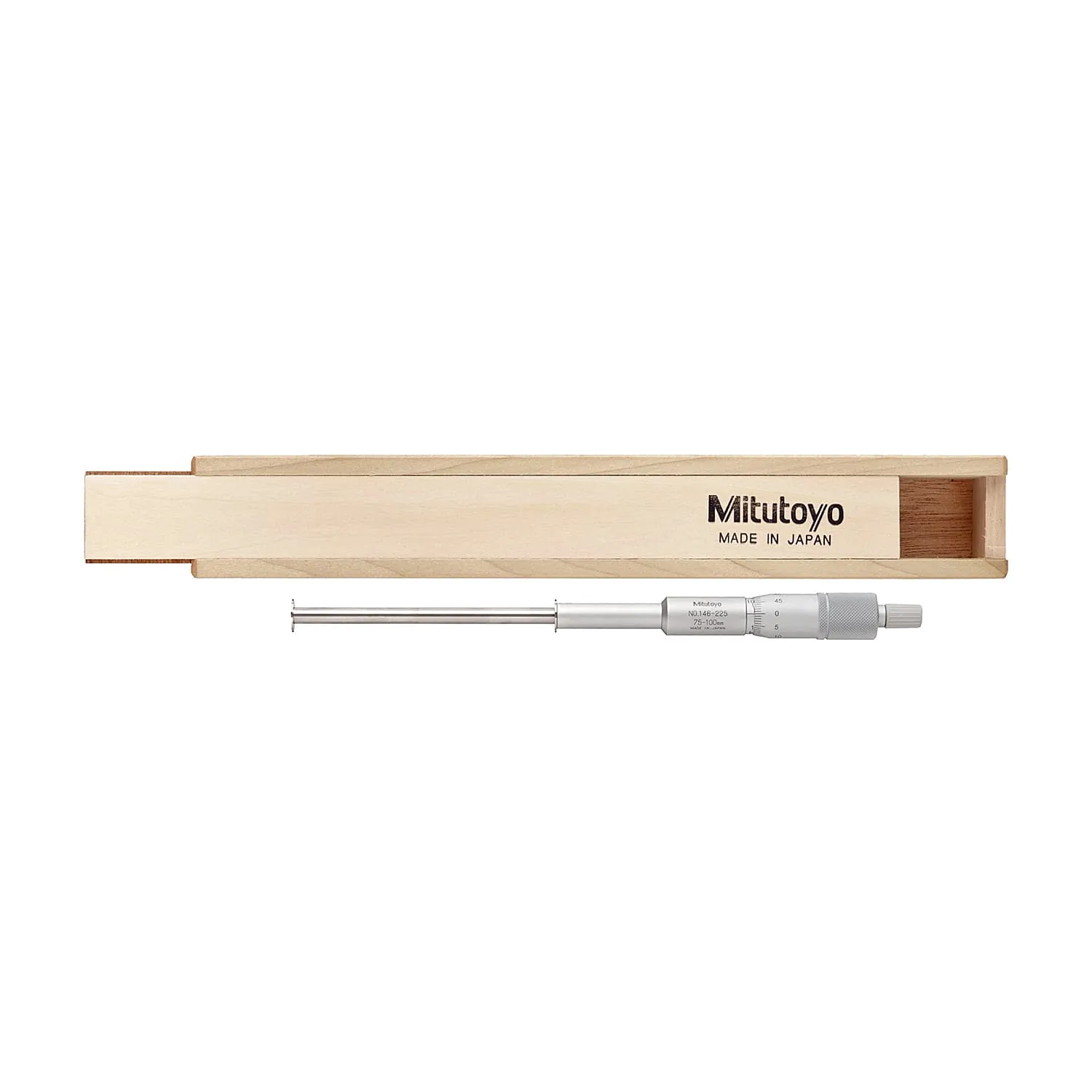

Package Content:
- 1x Groove Micrometer
- 1x Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Groove Micrometer |
|---|---|
| Range (mm) | 75 - 100 mm |
| Range Inside | 76.5 - 101.5 mm |
| Graduation | 0.01 mm |
| Flange | Ø12.7 mm |
| Measuring Force | 5 - 10N |
| Measuring Spindle | Spindle Pitch 0.5 mm |
| Parallelism | 10 μm |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
