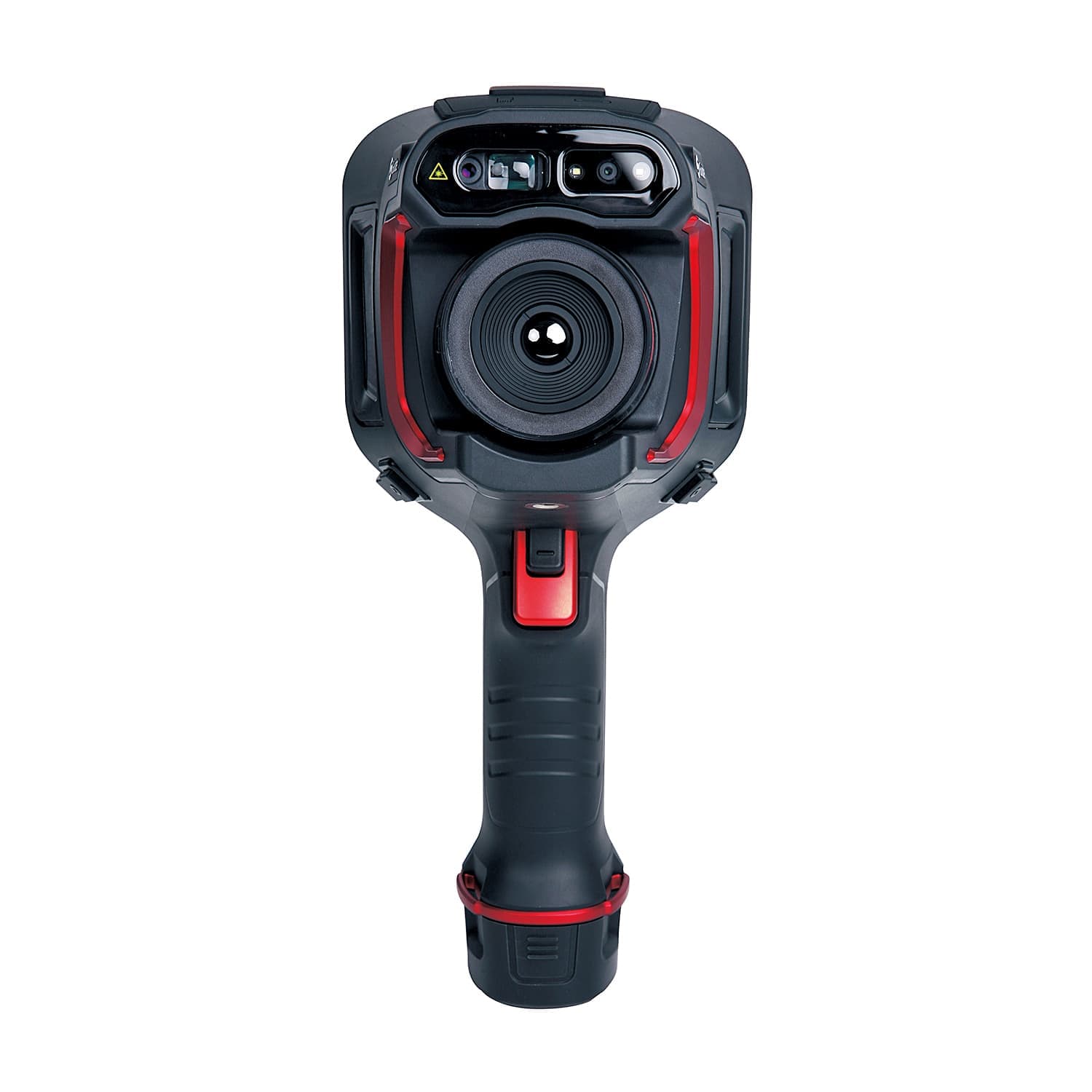

Insize 0°C ~ 650°C Infrared Thermal Imaging Camera, 0234-TC850A
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 1.2 kg
- Measurement Range: support auto-switching: -40°C ~ 150°C, 0°C ~ 650°C
- Operating Temperature: -20° ~ 50°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,97,569 (Incl. of all taxes)
₹5,06,414 + ₹91,155 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Suitable for electric power, oil and petrochemical, heating ventilation and air conditioning, electronic information, etc.
- 4 image modes: IR, VL, MIF and PIP
- Software is included: support file management, thermal image analysis, video analysis, report editing, etc.
- Mobile APP is included: support real-time data and video transmission
Technical Data:
| Measurement & Analysis | measurement accuracy | ±2°C or ±2%, whichever is greater |
| analyzed target | 12 in total (spot/line/area) | |
| temperature alarm | full screen temperature alarm with image, voice & flash | |
| temperature measuring parameter | emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance, dew point | |
| others | isothermals, smart stroke, intelli entl calculate the area | |
| Image Display | display screen | 4.3 inch touchscreen LCD, 800x480 pixel |
| digital camera | 8MP | |
| image mode | IR, VIS, MIF, PIP | |
| image adjustment | level span mode: automatic, semi-automatic, manual | |
| color palettes | 15: white hot, iron red, arctic, rainbow 2, hot iron, rainbow 1, fulgurite, medical, tint, black hot, blue hot, sepia, green hot, ice and fire, amber; customized | |
| Imaging & Optics | detector type | unrefrigerated vanadium oxide, 7.5µm-14µm |
| infrared resolution | 480x360@12µm | |
| super resolution | upgrade to 960x720 Pixel | |
| thermal sensitivity/NETD | 45mK | |
| infrared frame rate | 30Hz/9Hz | |
| focal length | 17.7mm | |
| field of view | 25°x19° | |
| spatial resolution/lFOV | 0.91 mrad | |
| minimum object distance | 0.15 m | |
| distance to spot size/D:S | 1099:1 | |
| focusing mode | manual, automatic, touch autofocus, continuous autofocus | |
| digital zoom | 1.1x - 16x | |
| Function | laser | indication/ranging: 0.1m - 40m |
| recording function | photo (image stitching) and video (infrared and visible light) | |
| cloud service | available | |
| Storage & Transmission | storage | built-in 64GB and external SD card (64GB and up to 256GB) |
| image storage | JPG (with temperature information) | |
| video storage | MP4 (without temperature information) can be used to record audio synchronously; IRGD (with temperature information), up to 30Hz for temperature analysis | |
| external interface | TYPE-C, SD card slot, 1/4" tripod mounting | |
| WIFI | can be connected to the mobile terminal for image and real-time video transmission | |
| bluetooth | Bluetooth 5.0, supports image transmission (only for Android) | |
| Power Supply | battery type | lithium-ion rechargeable battery, operating time >24 hours |
| charging mode | TYPE-C charging; PC/portable charger; capable of charging while using; desktop charger | |
| charging time | 90% of full charge in 2.5 hours |
Standard Delivery:
- 1x Infrared Thermal Imaging Camera
- 1x Standard Infrared Lens
- 1x 64GB SD Card
- 2x Li-ion Batteries
- 1x Desktop Charger
- 1x Power Adapter
- 1x Software
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement Range | support auto-switching: -40°C ~ 150°C, 0°C ~ 650°C |
|---|---|
| Operating Temperature | -20° ~ 50°C |
| Protection | IP54, 2m Drop Test |
| Certification | CE, ROHS |
| Hardware | illuminator, microphone, speaker, electronic compass, GPS |
| Dimension (mm) | 292 x 125 x 125 mm |
