Insize 100 - 15000 mm Large Range Digital Radius Gauge, 2197
Roll over the image to zoom in
Key Features
- Product Type: Radius Gauges
- Range (mm): 100 - 15000 mm
- Range (inches): 4 - 590 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,30,841 (Incl. of all taxes)
₹1,95,628 + ₹35,213 GST (18%)
MRP was MRP ₹2,79,468
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Range of External & Internal Radius Size (R1 & R2): 100 - 15000 mm / 4 - 590 inch

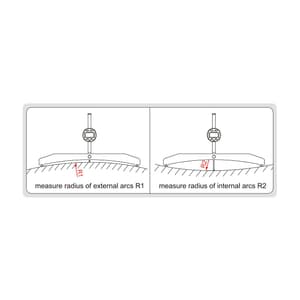

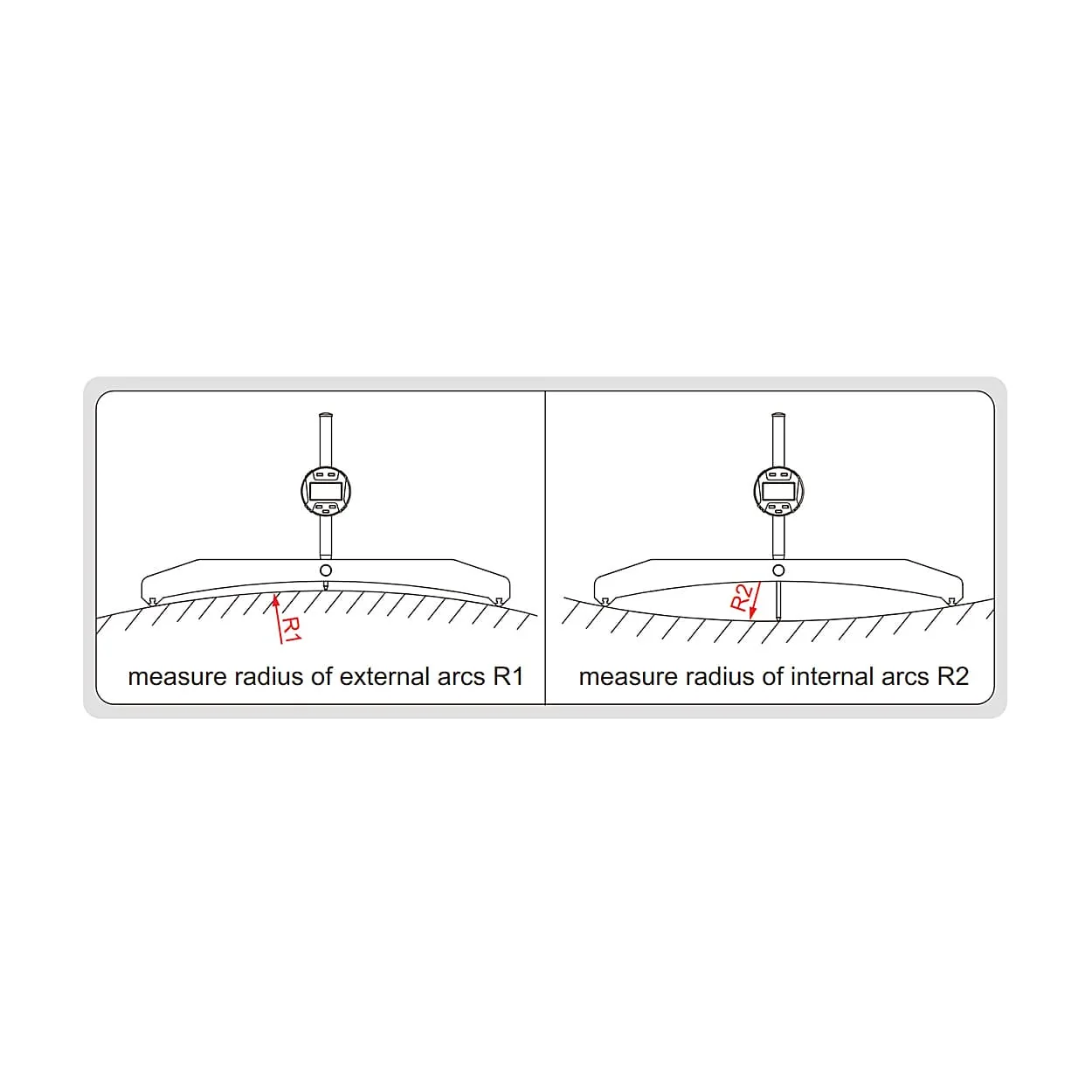

- Measure the radius of internal or external arcs
- Buttons: on/off, hold, mm/inch, s (select jaws), zero
- The display can be rotated by 320°

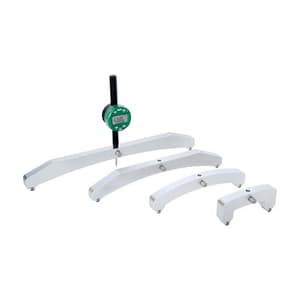

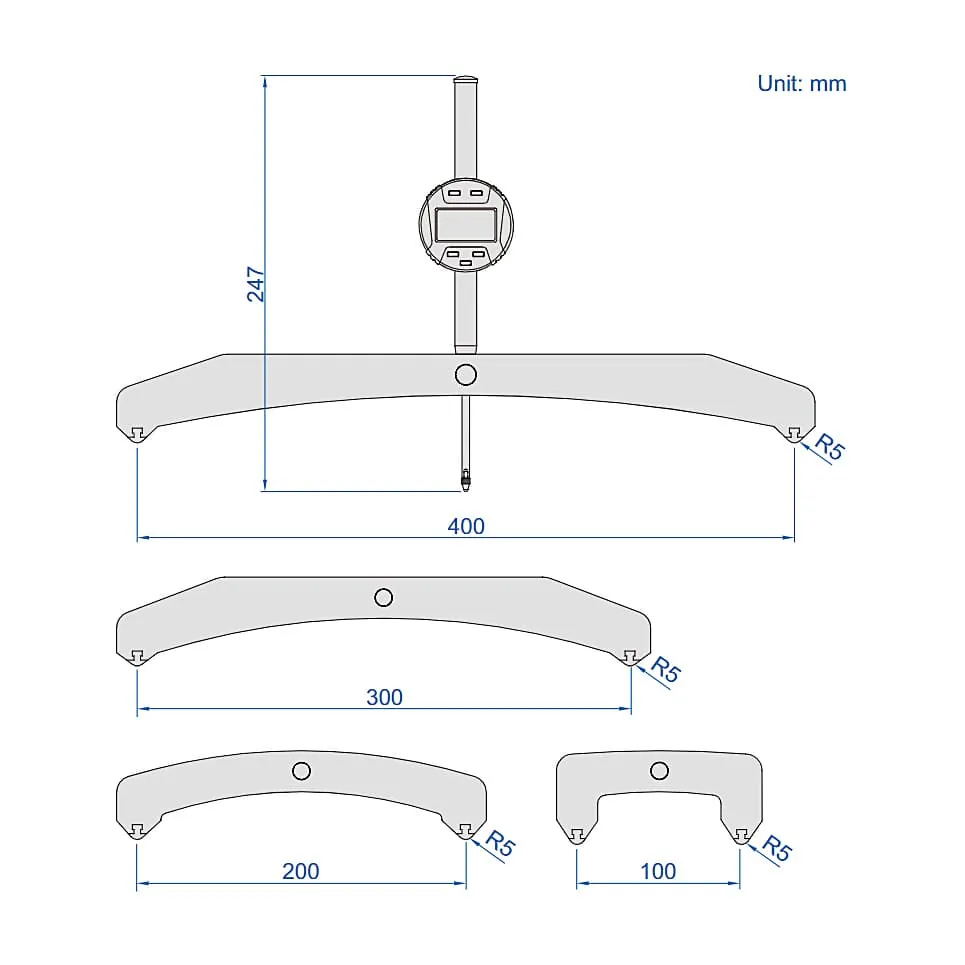

- Supplied with 4 jaws for different sizes of arc
- Battery CR2032, automatic power off (time is adjustable)
- Data output
- Optional accessory: data output cable (Code 7315-2183 receiver is needed. 7302-2183)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 100 - 15000 mm |
|---|---|
| Range (inches) | 4 - 590 inch |
| Resolution | 0.01 mm / 0.001 inch |
| Accuracy | ±0.005R mm |
