Insize 5-910 mm Digital Radius Gauge, 2511
Roll over the image to zoom in
Key Features
- Product Type: Radius Gauges
- Range (mm): 5 - 910 mm
- Accuracy: ±0.005R mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹57,907 (Incl. of all taxes)
₹49,074 + ₹8,833 GST (18%)
MRP was MRP ₹70,106
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Buttons: on/off, hold, mm/inch, s (select jaws), zero

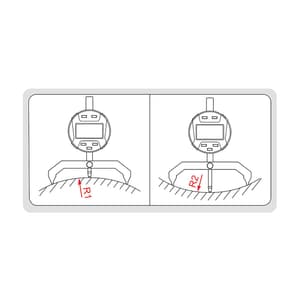

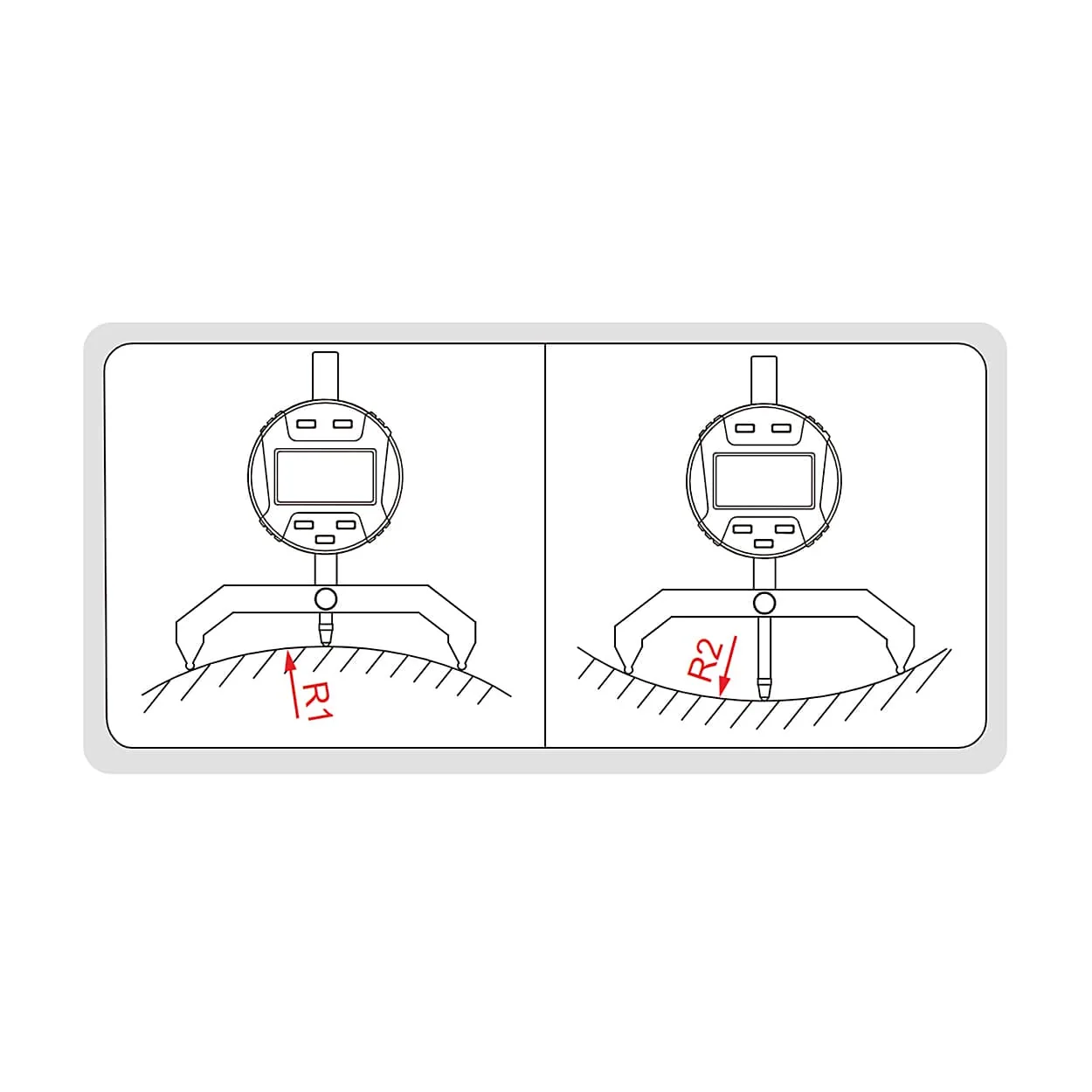

- Measure the radius of internal or external arcs
- Cylindrical measuring jaws, self-positioning
- The display can be rotated by 320°

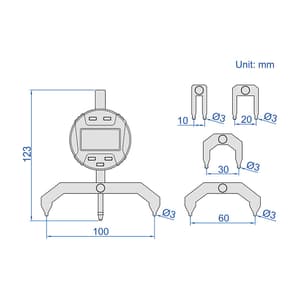

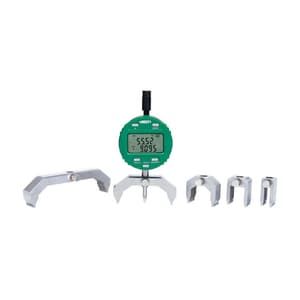

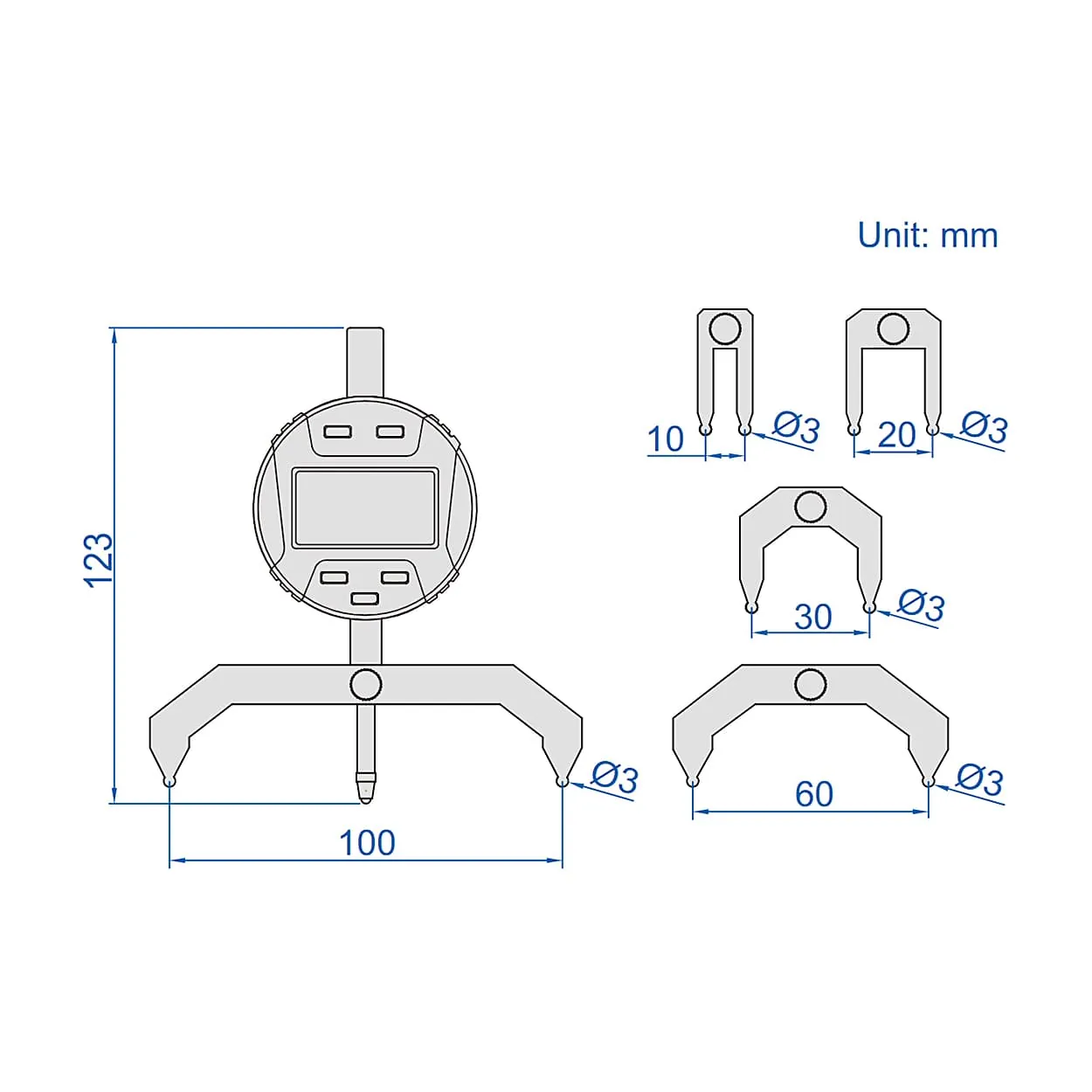

- Supplied with 5 jaws for different sizes of arc
- Battery CR2032, automatic power off (time is adjustable)
- Data output
- Optional accessory: calibration standard (code 2183-BLOCK), data output cable(code 7315-2183, 7302-2183)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 5 - 910 mm |
|---|---|
| Resolution | 0.01 mm / 0.001 inch |
| Accuracy | ±0.005R mm |
| Range of Internal Radius (R1) (inches) | 0.2 - 35.83 inch |
| Range of Internal Radius (R2) | 7-910 mm / 0.3-35.83 inch |
