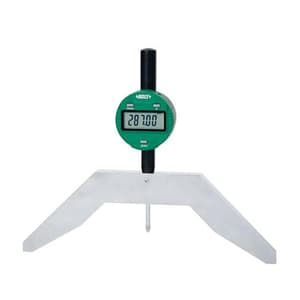

Insize 138 - 233 mm Digital Radius Gauge, 2188-233
Roll over the image to zoom in
Key Features
- Product Type: Radius Gauges
- Range (mm): 138 - 233 mm
- Range (radius): 5.43 - 9.17 inch
- Accuracy: ±0.03 mm
- Resolution: 0.01 mm / 0.0005 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹35,629 (Incl. of all taxes)
₹30,194 + ₹5,435 GST (18%)
MRP was MRP ₹43,134
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

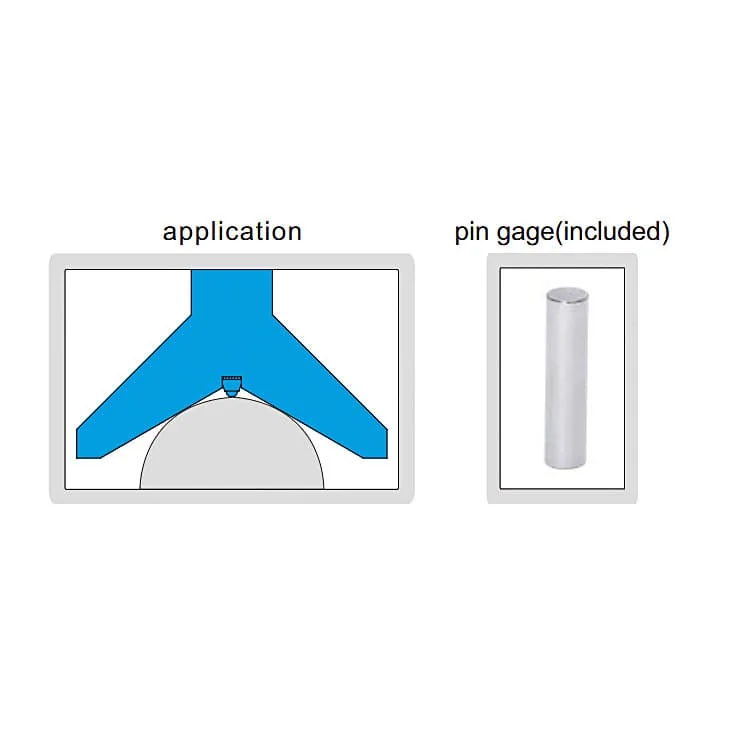

- Measure the radius of the external arc, the arc angle of the measured surface should be larger than 60°
- Display radius value, no need to calculate
- Button function: on/off, zero, data preset, inch/mm
- Keep preset data in memory after the restart
- CR2032 battery, automatic power off
- Data output
- Stainless steel base
- Supplied with pin gauge for zero setting
- Optional accessory: Data Output Cable (Code 7315-50M, 7302-40M)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

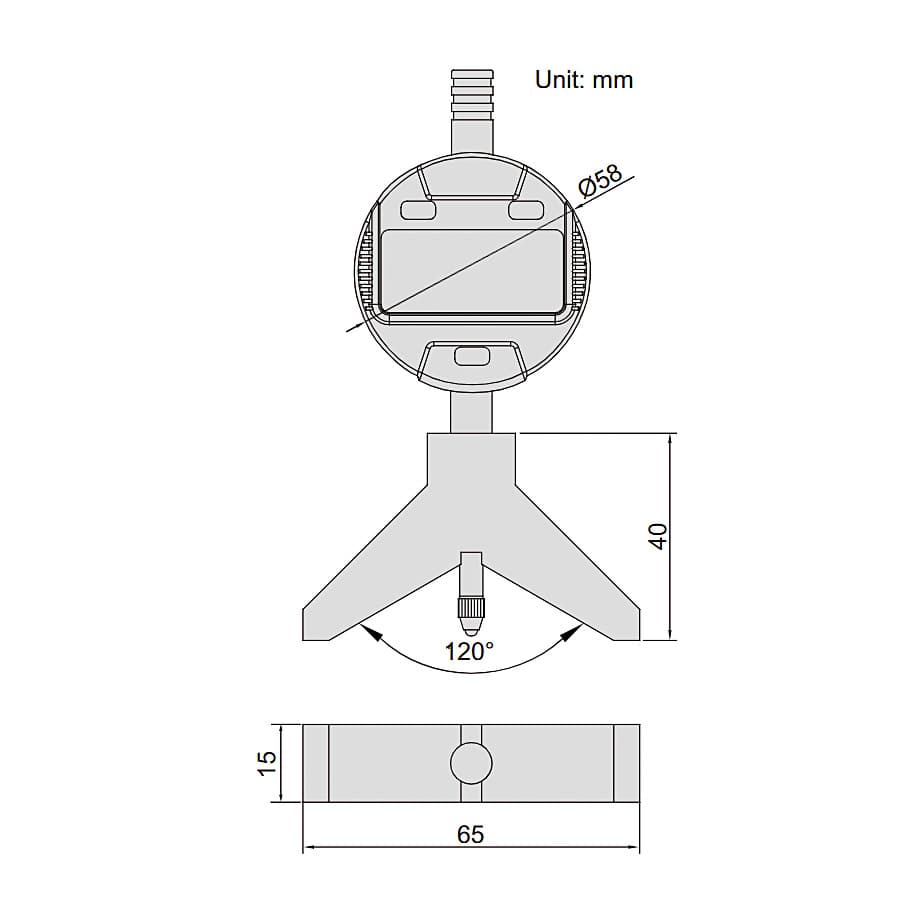

Specifications
| Range (mm) | 138 - 233 mm |
|---|---|
| Range (radius) | 5.43 - 9.17 inch |
| A (mm) | 85 mm |
| B (mm) | 255 mm |
| Accuracy | ±0.03 mm |
| Resolution | 0.01 mm / 0.0005 inch |
