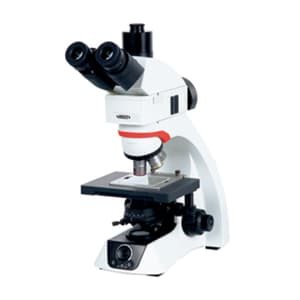

Insize 50X - 500X Metallurgical Microscope, 5113-M850
Roll over the image to zoom in
Key Features
- Product Type: Zoom Stereo Microscope
- Weight: 18 kg
- Optical Magnification: 50X - 500X (up to 1000X with optional 100X objective)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,08,494 (Incl. of all taxes)
₹3,46,181 + ₹62,313 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- ECGO infinity two-way chromatic aberration calibration system
- Built-in white LED, high color rendering index, long life time
- The same dimmer knob controls the free switching of reflected and transmitted light
- With anti-slip adjustable elastic and randomized upper limit device
| Objective (Infinite Plan Achromatic) (Bright Field Objectives) | Working Distance | Numerical Aperture |
| 5X | 16 mm | 0.15 |
| 10X | 9 mm | 0.30 |
| 20X | 3 mm | 0.45 |
| 50X | 3 mm | 0.80 |
Package Content:
- 1x Metallurgical Microscope
- 1x Anti-dust Cover
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

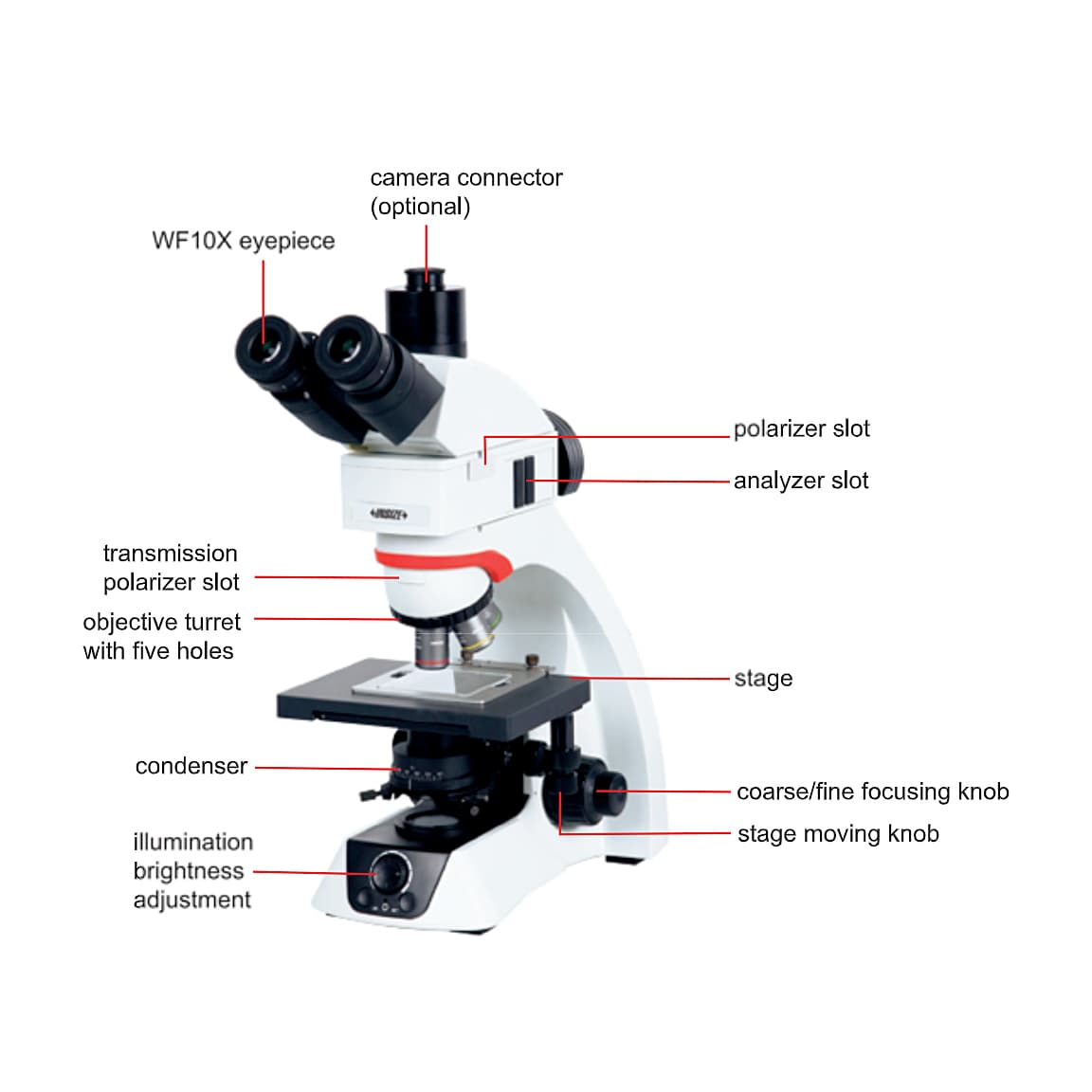

Specifications
| Eyepiece | Large Field 10X (View Field: Ø23 mm) |
|---|---|
| Optical Magnification | 50X - 500X (up to 1000X with optional 100X objective) |
| Stage | X-Y Double Layer (Size: 200 x 150 mm / Travel: 78 x 50 mm) |
| Condenser | pre-centered condenser with diaphragm indicator scale markings NA 0.1-1.1 |
| Diopter Adjustment | ±8 Diopter |
| Observation Tube | 30° hinged trinocular observation tube, pupil distance adjustment range 45-78 mm |
| Power Supply | Power Adapter |
| Dimension (WxDxH) | 391 x 220 x 513 mm |
