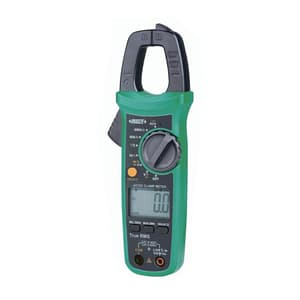

Insize 6000 Counts AC/DC TRMS Digital Clamp Meter, 9312-CB120

Shop all Insize

SKU: ME.EL.CL.00265

Model: 9312-CB120

Roll over the image to zoom in

Visit Insize Store

Key Features

  • Product Type: Clamp Meters
  • Weight: 230 g
  • Display Counts: 6000 Counts
  • Jaw Opening (mm): 28 mm
See all product information

ToolBuy Benefits

₹7,637 (Incl. of all taxes)

₹6,472 + ₹1,165 GST (18%)

MRP was MRP ₹9,517

Save 32%

3 Business Days

1

–

Download Product LeafletNot available
Download Insize CatalogueNot available

Highlights

  • 6000 counts display
  • 28mm jaw opening
  • NCV detection with light and sound alarm
  • Live/neutral wire measurement function
  • True RMS measurement
  • Auto ranging
  • REL (zero) function
  • Data hold
  • Polarity indication
  • LCD screen with backlight
  • Low battery indication
  • Auto power off
  • Safety rating: CAT III 300V/CAT II 600V
  • AC Voltage/Current frequency response: 45Hz - 400Hz


Specification:

Function Range Resolution Accuracy
DC Current 60.00A / 600.0A 0.01A / 0.1A ±(2%+5d)
AC Current 60.00A / 600.0A 0.01A / 0.1A ±(2%+5d)
DC Voltage 600.0mV 0.1mV ±(0.7%+3d)
  • 6.000V
  • 60.00V
  • 600.0V
  • 0.001V
  • 0.01V
  • 0.1V
 ±(0.5%+2d)
AC Voltage 6.000V 0.001V ±(1%+5d)
  • 60.00V
  • 600.0V
  • 0.01V
  • 0.1V
 ±(0.8%+5d)
AC Voltage Frequency 10Hz - 60kHz 0.01Hz - 0.01kHz ±(0.5%+2d)
Resistance 600.0Ω 0.1Ω ±(1%+2d)
  • 6.000kΩ
  • 60.00kΩ
  • 600.0kΩ
  • 0.001kΩ
  • 0.01kΩ
  • 0.1kΩ
 ±(0.8%+2d)
6MΩ/60MΩ 0.001MΩ/0.01MΩ ±(2.5%+5d)
Capacitance
  • 60.00nF
  • 600.0nF
  • 6.000μF
  • 60.00μF
  • 600.0μF
  • 0.01nF
  • 0.1nF
  • 0.001μF
  • 0.01μF
  • 0.1μF
 ±(4%+5d)
  • 6.000mF
  • 60.00mF
  • 0.001mF
  • 0.01mF
 ±10.0%
Frequency 10Hz ~ 10MHz 0.01Hz ~ 0.01MHz ±(0.1%+4d)
Duty Cycle 0.1% ~ 99.0% 0.1% ±(3.0%+5d)
Temperature -40~1000°C -40~40°C 1°C ±4°C
>40~500°C ±(1.5%+5d)
>500~1000°C ±(2%+5d)
-40~1832°F -40~104°F 1°F ±6°F
>104~932°F ±(2%+6d)
>932~1832°F ±(2.5%+4d)


Standard Delivery:

Clamp Meter 1 Pc
Battery (AAA) 2 Pcs

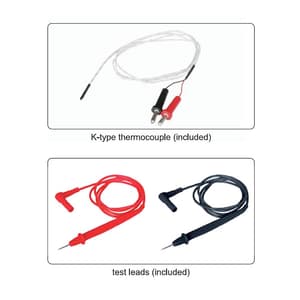

Test Lead 2 Pcs
K-type thermocouple 1 Pcs

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Insize 6000 Counts AC/DC TRMS Digital Clamp Meter, 9312-CB120
Display Counts6000 Counts
Jaw Opening (mm)28 mm
Diode Test0V - 6V
Continuity Check<30 Ohm
Power Supply2x 1.5V AAA Batteries
Dimensions (L x W x H)215 x 63 x 36 mm
