HTC 1999 Count / 100A AC/DC TRMS Mini Clamp Meter with Backlight, CL-2053
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 170 g

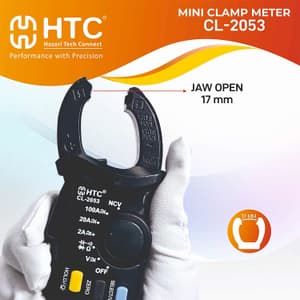

- Jaw Open: 17 mm
- Counts: 1999 Counts
- AC/DC Current: 2A - 100A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,168 (Incl. of all taxes)
₹4,380 + ₹788 GST (18%)
MRP was MRP ₹5,475
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

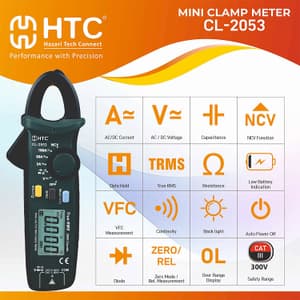

Highlights
- Jaw Size 17 Mm
- Data Hold
- True Rms

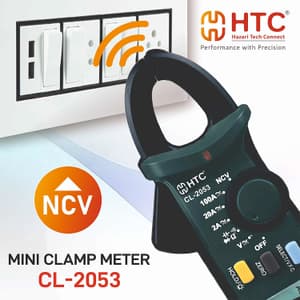

- Ncv
- Diode
- V.F.C Mode
- Continuity
- Backlight
- Zero Mode / Rel. Measurement
- Auto Range
- Auto Power Off
Applications:
- Electrical Industry
- Industrial Maintenance
- Residential Use
- HVAC
- Automotive
- Research
Package Content:
- Mini Clamp Meter
- Test leads
- User Manual
- Probe assemblies 1 pair
- Carry Case
- Battery
Technical Data:
- DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 0.1mV | ±(0.7%+5) |
| 2V | 1mV | ±(0.7%+3) |
| 20V | 10mV | |
| 200V | 100mV | |
| 600V | 1V |
- AC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 2V | 1mV | ±(1.0%+3) |
| 20V | 10mV | |
| 200V | 100mV | ±(1.0% +3) V.F.C. mode: ±(4.0%+3) |
| 600V | 1V | ±(1.2% +3) V.F.C. mode: ±(4.0%+3) |
- DC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 2A | 1mA | ±(2.0%+8) |
| 20A | 10mA | ±(2.0%+3) |
| 100A | 100mA | ±(2.5%+5) |
- AC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 2A | 1mA | ±(3.0%+10) V.F.C. mode: ±(4.0%+10) |
| 20A | 10mA | ±(2.5%+8) V.F.C. mode: ±(4.0%+10) |
| 100A | 100mA | ±(2.5%+5) V.F.C. mode: ±(4.0%+10) |
- Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±(1.0%+2) |
| 2KΩ | 1Ω | |
| 20KΩ | 10Ω | |
| 200KΩ | 100Ω | |
| 2MΩ | 1KΩ | ±(1.2%+3) |
| 20MΩ | 10KΩ |
- Capacitance
| Range | Resolution | Accuracy |
|---|---|---|
| 2nF | 1pF | ±(4.0%+10) |
| 20nF~200uF | 10pF~10nF | ±(4.0%+5) |
| 2mF~20mF | 1uF~10uF | ±10% |
CIRCUIT ON-OFF,
DIODE MEASUREMENT
| Range | Resolution | Remarks |
|---|---|---|
|
0.1Ω |
|
|
1mV | Open circuit voltage is 3.2V; normal voltage for silicon PN junction is 0.5~0.8V |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 17 mm |
|---|---|
| Counts | 1999 Counts |
| AC/DC Current | 2A - 100A |
| AC/DC Voltage | 200mV - 600V |
| Resistance | 200Ohm - 20MOhm |
| Capacitance | 2nF - 20mF |
| Dimension (H x W x D) | 175 x 60 x 33.5 mm |
