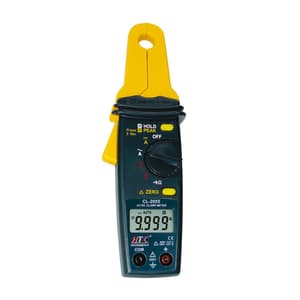

HTC 4 Digit / 9999 Count AC DC Clamp Meter, CL-2055
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Sample Rate: 2 times / sec
- Continuity Buzzer: <100 Ohm
- MAX Test Voltage: 3V DC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,977 (Incl. of all taxes)
₹7,608 + ₹1,369 GST (18%)
MRP was MRP ₹9,510
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

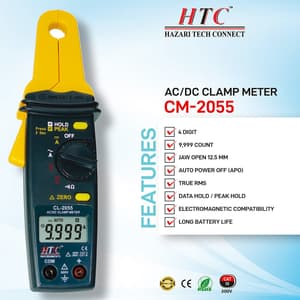

Highlights
- 4 Digit LCD Display.
- 9999 Count.
- Peak Hold.
- Low Power Indication.
- Auto Power Off (APO)

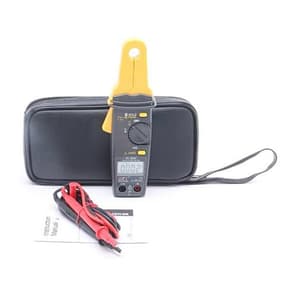

Package Contents:
- Test Lead,
- Manual Carrying Case.
DC Voltage:
| Range | Resolution | Accuracy |
| 600V | 0.1V | ±1.0% of rdg ± 2 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 600V | 0.1V | ±1.5% of rdg ± 5 digits |
DC Current:
| Range | Resolution | Accuracy |
| 10A | 1mA | ±2.5% of rdg ± 10 digits |
| 80A | 10mA | |
| 80~100A | 10mA | ±4.5% of rdg ± 10 digits |
AC Current:
| Range | Resolution | Accuracy |
| 10A | 1mA | ±2.0% of rdg ± 10 digits |
| 80A | 10mA | |
| 80~100A | 10mA | ±3.5% of rdg ± 10 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 10k Ohm |
|---|---|
| Resistance Resolution | 1 Ohm |
| Resistance Accuracy | ±1.0% Of rdg ± 3 Digits |
| Sample Rate | 2 times / sec |
| Continuity Buzzer | <100 Ohm |
| MAX Test Voltage | 3V DC |
| Overall Protection | 600V rms |
| Dimension | 202 (H) x 70 (W) x 30 (D) mm |
