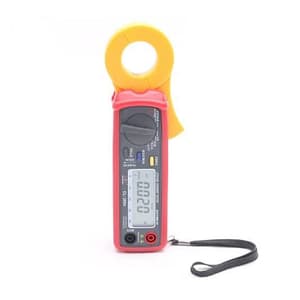

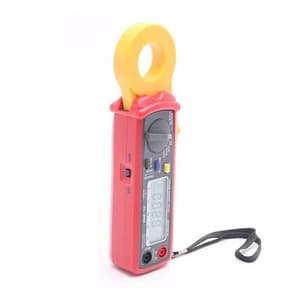

HTC 3-3/4 Digit / 3999 Count Manual Clamp Meter, CL-2054

Shop all HTC

SKU: ME.EL.CL.00113

Model: CL2054

Roll over the image to zoom in

Visit HTC Store

Key Features

  • Product Type: Clamp Meters
  • Power: 9V (6F22) X 1
  • Dimension: 209 (H) x 43 (W) x 30 (D) mm

ToolBuy Benefits

₹5,178 (Incl. of all taxes)

₹4,388 + ₹790 GST (18%)

MRP was MRP ₹5,485

Save 20%

5 Business Days

1

90303100

Download Product LeafletNot available
Download HTC CatalogueNot available

Highlights

  • 3¾ Digit Manual Range
  • 3,999 Count
  • 10uA high Resolution
  • Auto Power Off (APO)
  • Shielded Transformer Jaw Open to 1.2”
  • Continuity Test : Threshold 40Ω, Continuity Beeper 2.5KHz

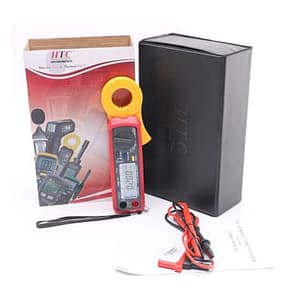

Package Contents:

  • Test Lead,
  • Manual,
  • Hard Carrying Case.


AC Voltage:

Range Resolution Accuracy
400V 0.1V
50/60 Hz 40-1KHz
±1.5% of rdg + 2 digits ±2.0% of rdg + 4 digits


AC Current:

Range Resolution Accuracy
40mA 10μA
50/60 Hz Wide (400-1KHz)
±1.0% of rdg ± 0.5mA digits ±4.5% of rdg ± 0.5mA digits
±3.0% of rdg ± 5.0mA digits ±3.0% of rdg ± 5.0mA digits
±4.0% of rdg ± 0.1A digits ±4.0% of rdg ± 0.1A digits
±2.5% of rdg ± 1.0A digits ±3.0% of rdg ± 1.5A digits
±5.0% of rdg ± 1.0A digits ±5.0% of rdg ± 1.5A digits
±5.0% of rdg ± 1.0A digits ±5.0% of rdg ± 1.5A digits
400mA 100µA
4A 1mA
40A 10mA
80A 100mA
80-100A 100mA


Resistance:

Range Resolution Accuracy
40-400Ω 0.1Ω ±1.0% of rdg ± 2 digits

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for HTC 3-3/4 Digit / 3999 Count Manual Clamp Meter, CL-2054
Power9V (6F22) X 1
Dimension209 (H) x 43 (W) x 30 (D) mm
