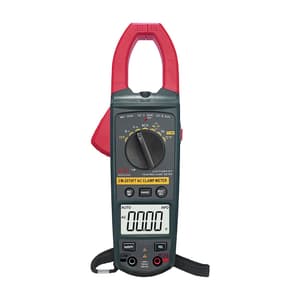

HTC 3-3/4 Digit / 1000A AC Clamp Meter With Backlight (True RMS), CM-2070FT
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Jaw Open: 52 mm
- Power: AAA 1.5V x 2
- Dimension: 123 (H) x 270 (W) x 35 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,883 (Incl. of all taxes)
₹1,596 + ₹287 GST (18%)
MRP was MRP ₹1,995
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

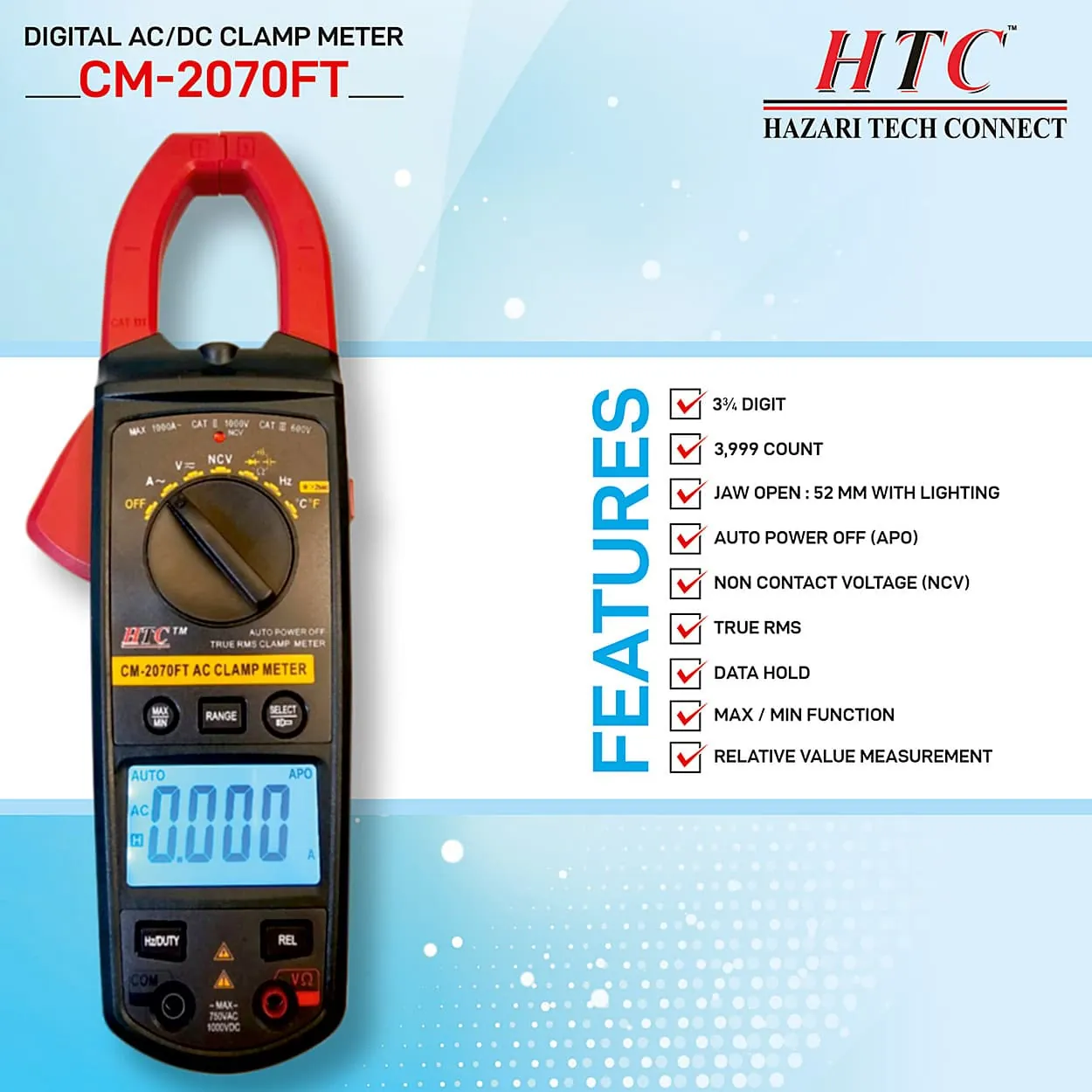

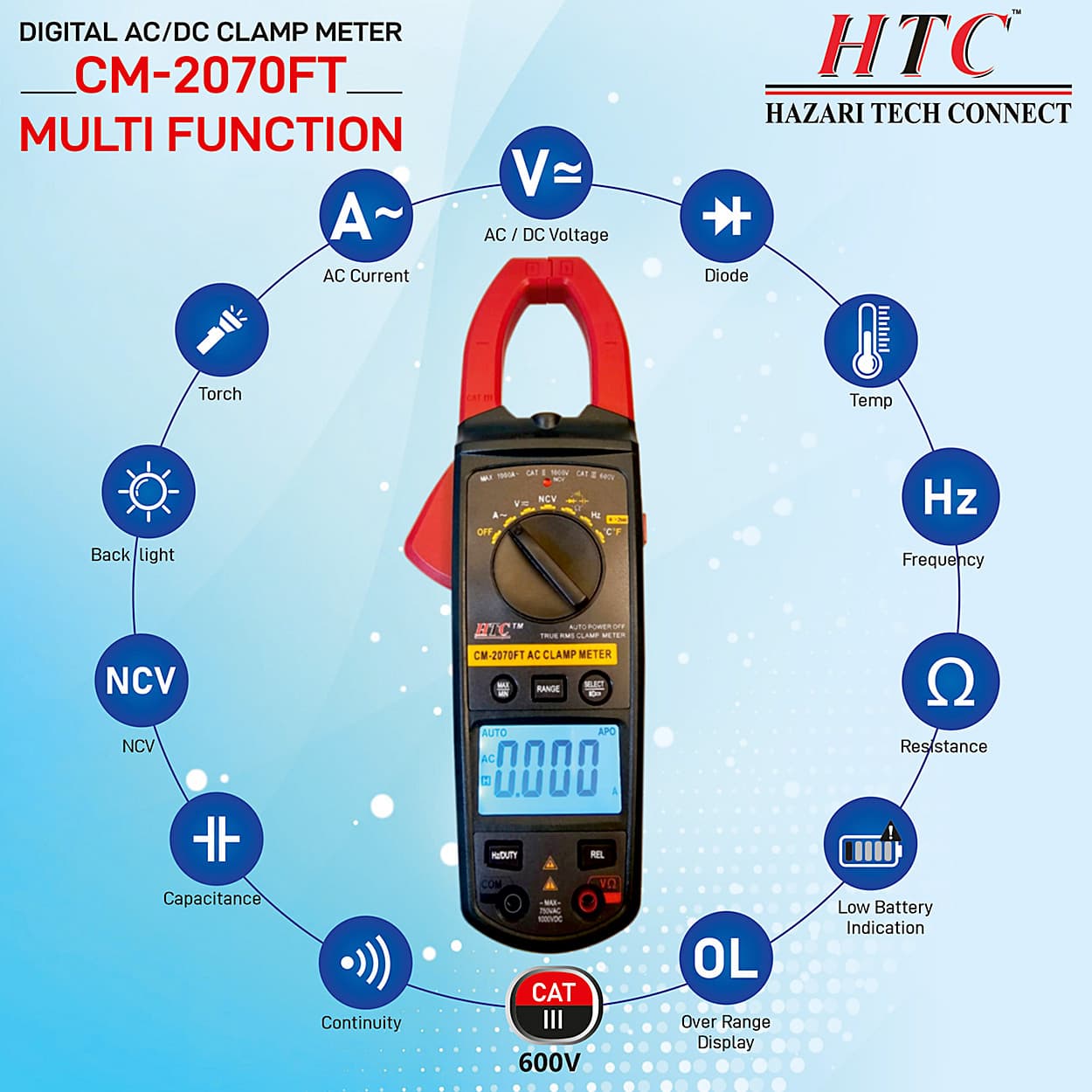

Highlights
- 3-3/4 Digit Clamp Meter with Backlight.
- 4000 Count.
- Full Function Protection, Strong anti-interferential Performance.
- Temperature & Non-Contact Voltage (NCV).
- Frequency Test.
- True RMS.
- Clamp Torch.

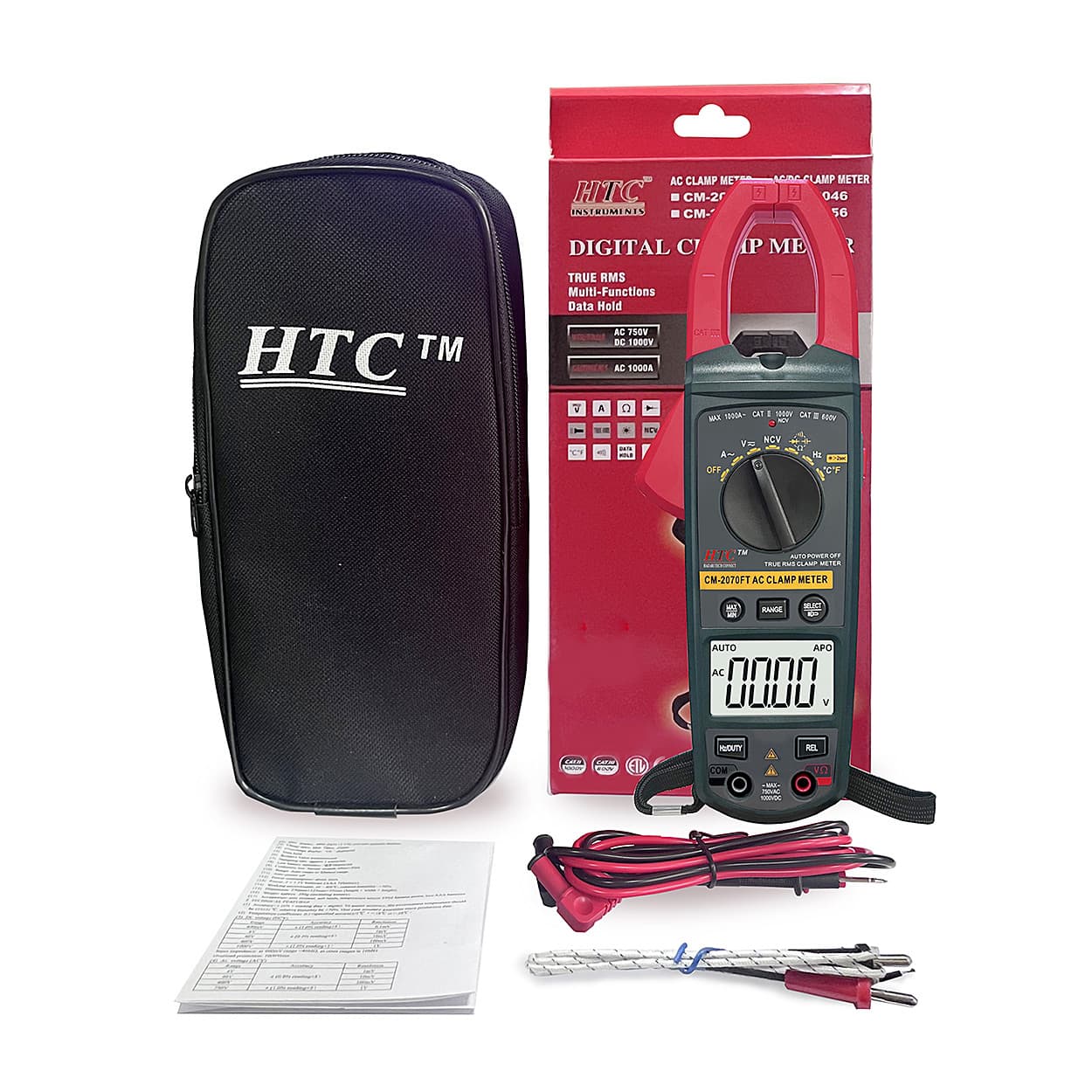

Package Contents:
- Test Lead,
- Manual,
- Soft Carrying Case,
- TP04 Temperature probe.
DC Voltage:
| Range | Resolution | Accuracy |
| 400mV | 0.1mV | ±1.0% of rdg + 5 digits |
| 4V | 1mV | ±0.5% of rdg + 5 digits |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | 1V | ±1.0% of rdg + 5 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 4V | 1mV | ±0.8% of rdg + 5 digits |
| 40V | 10mV | |
| 400V | 100mV | |
| 750V | 1V | ±1.0% of rdg + 5 digits |
AC Current:
| Range | Resolution | Accuracy |
| 4A | 1mA | |
| 40A | 10mA | ±2.0% of rdg + 5 digits |
| 400A | 1000mA | |
| 1000A | 1A |

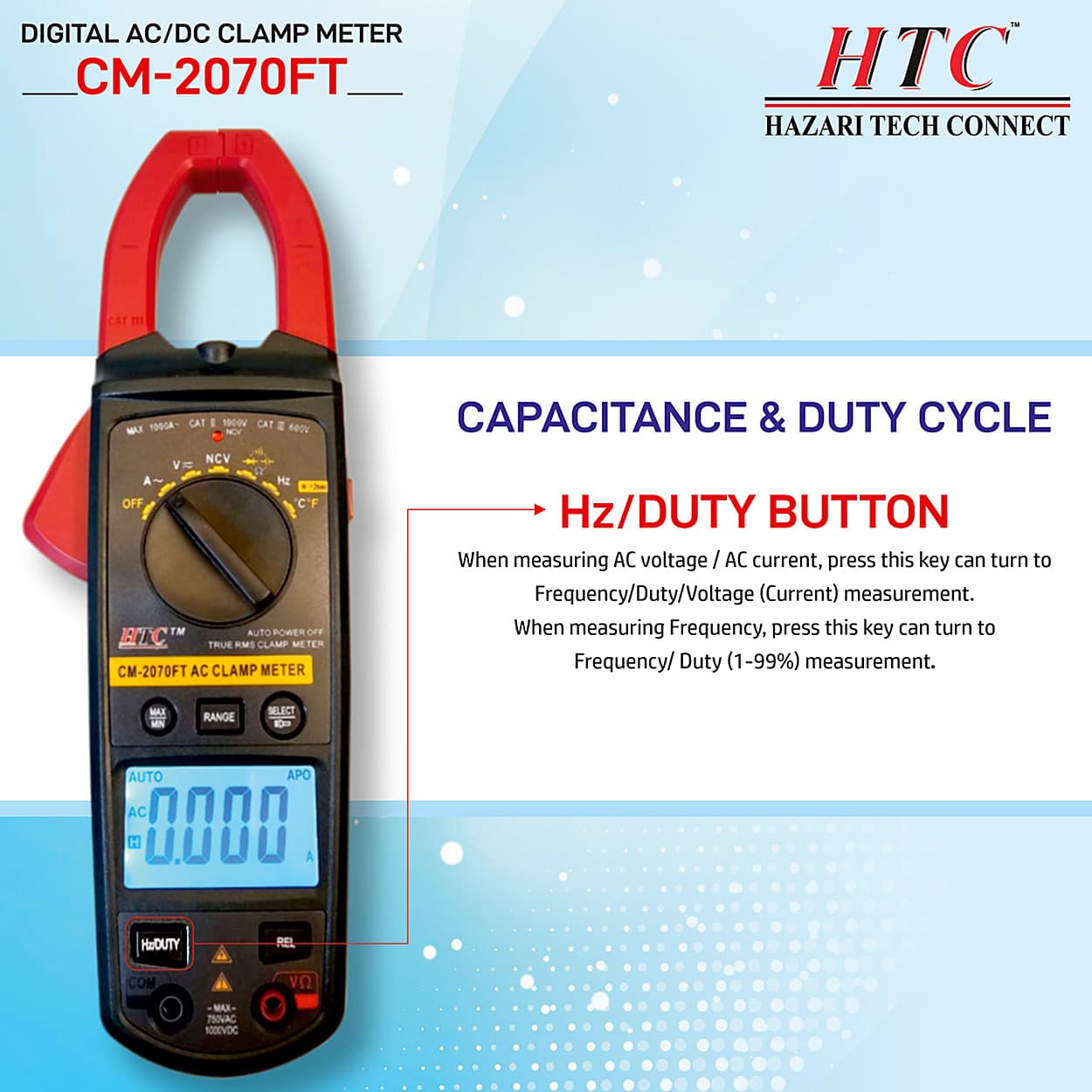

Capacitance:
| Range | Resolution | Accuracy |
| 4nF | 1pF | ±5.0% of rdg + 10 digits |
| 40nF | 10pF | ±2.5% of rdg + 5 digits |
| 400nF | 100pF | |
| 4µF | 1nF | |
| 40µF | 10nF | |
| 400μF | 100nF | ±5% of rdg + 10 digits |
| 4mF | 1μF | |
| 40mF | 10μF |
Frequency:
| Range | Resolution | Accuracy |
| 10Hz | 0.01Hz | ±0.5 of rdg + 4 digits |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHz | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 10MHz | 10kHz |
Resistance:
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 4kΩ | 1Ω | ±0.8% of rdg + 1 digits |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1kΩ | |
| 40MΩ | 10kΩ | ±1.0% of rdg + 5 digits |

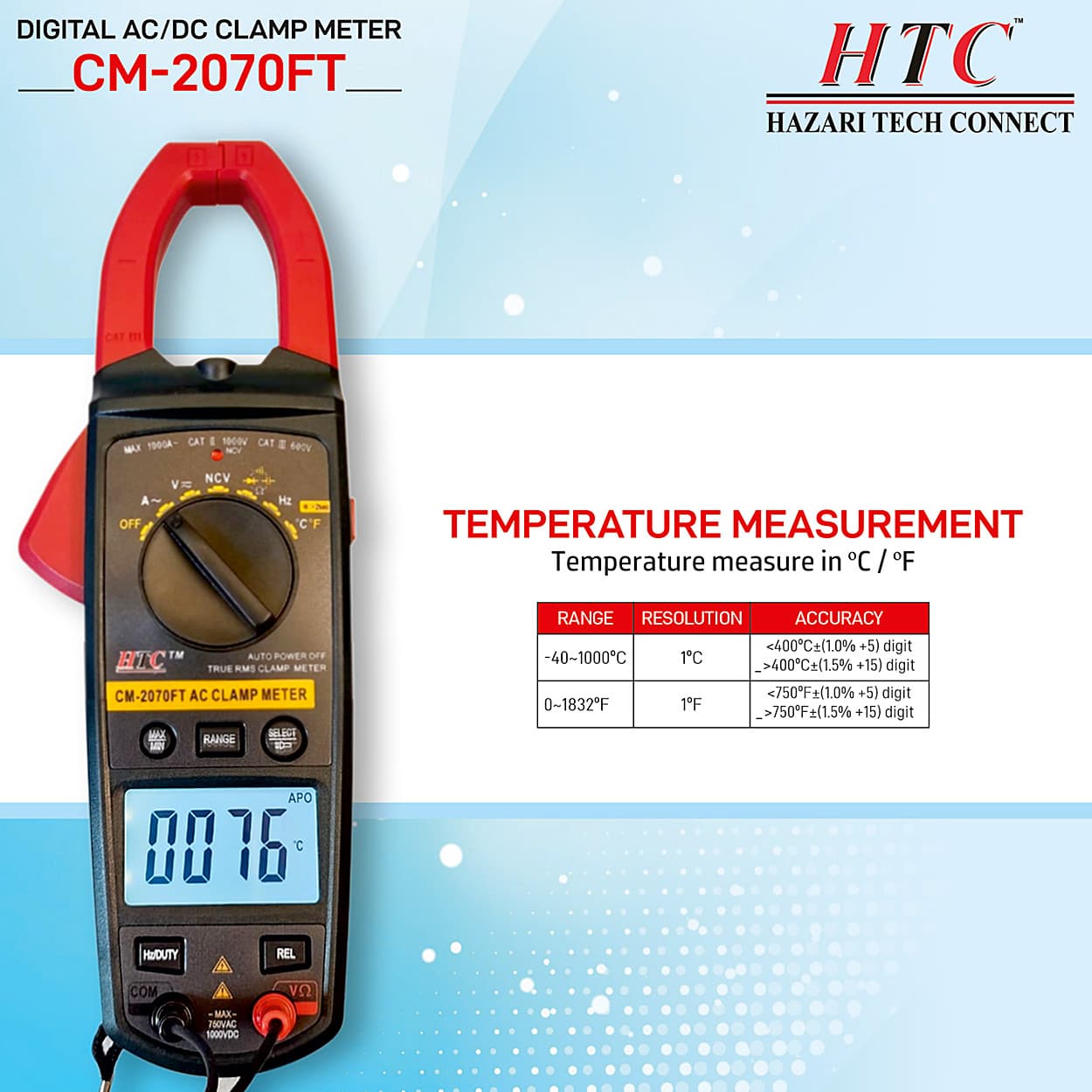

Temperature:
| Range | Resolution | Accuracy |
| (-40~1000)°C | 1°C | <400°C±1.0% of rdg + 5 digits ≥400°C±1.5% of rdg + 15 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 52 mm |
|---|---|
| Power | AAA 1.5V x 2 |
| Dimension | 123 (H) x 270 (W) x 35 (D) mm |
