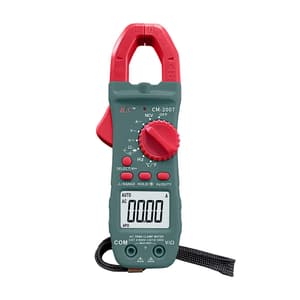

HTC 3-3/4 Digit / 600A AC Clamp Meter With Clamp Torch (True RMS), CM-2007
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Jaw Open: 28 mm
- Power: AAA 1.5V X 2
- Dimension: 270 (H) x 123 (W) x 35 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,699 (Incl. of all taxes)
₹1,440 + ₹259 GST (18%)
MRP was MRP ₹1,800
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

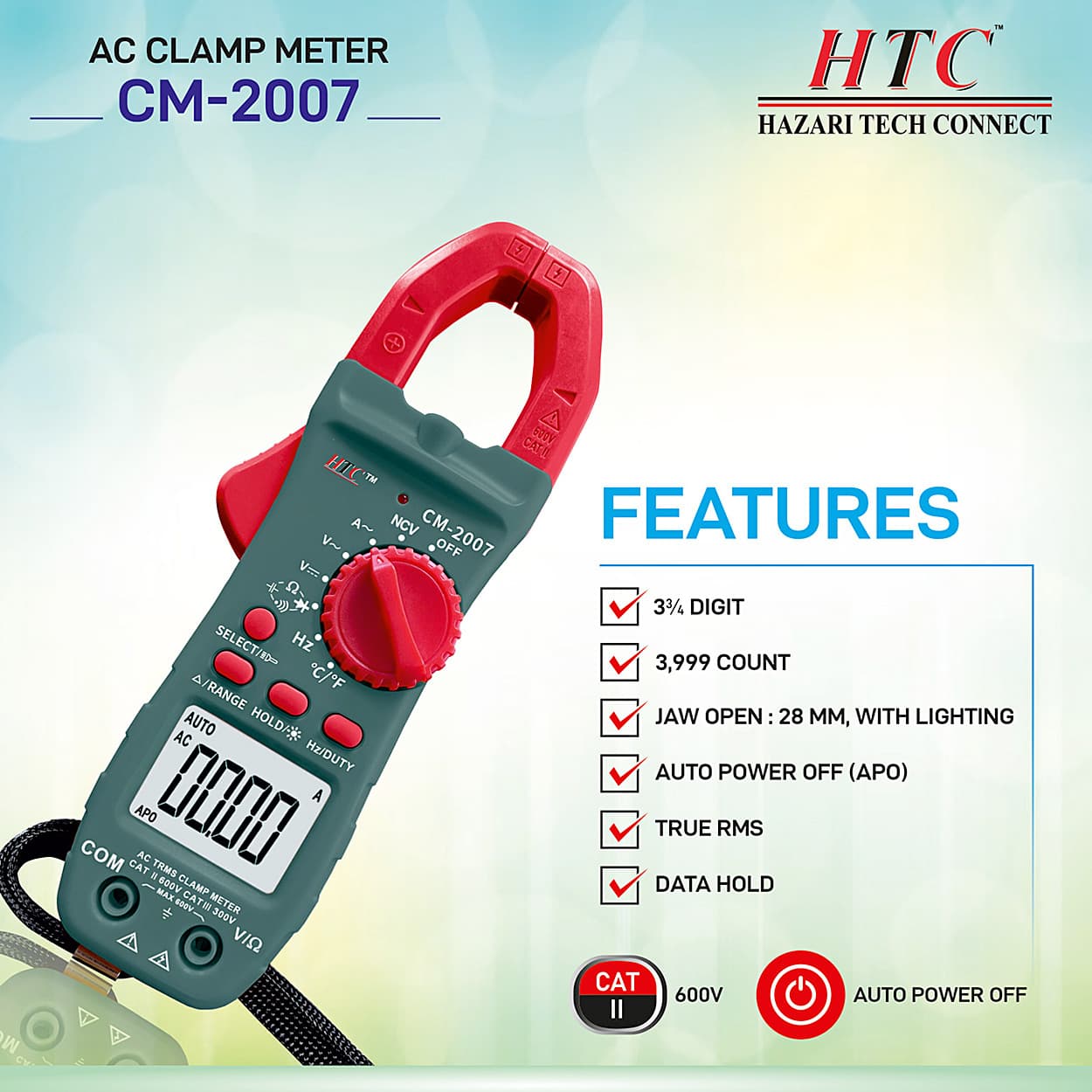

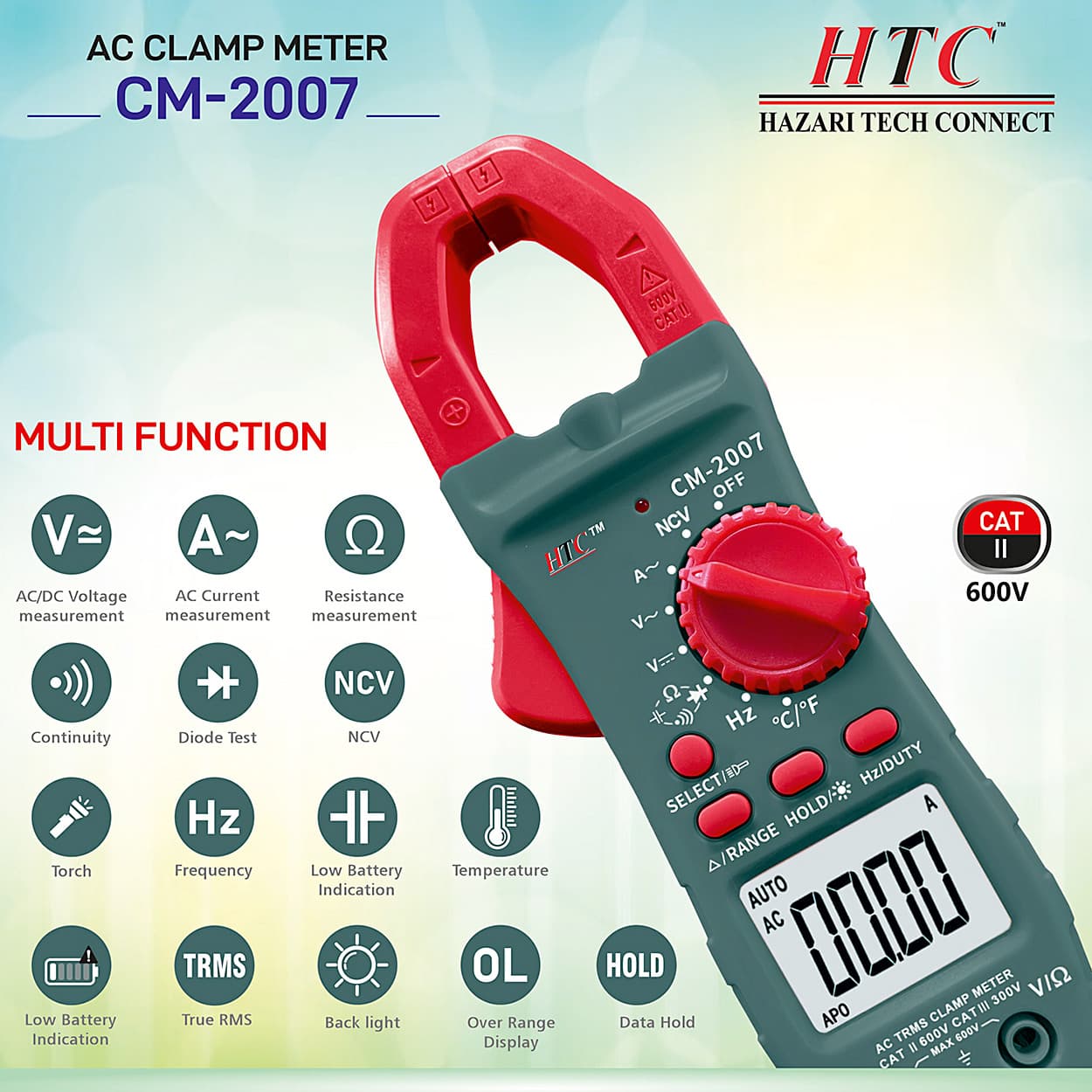

Highlights
- 3¾ Digit

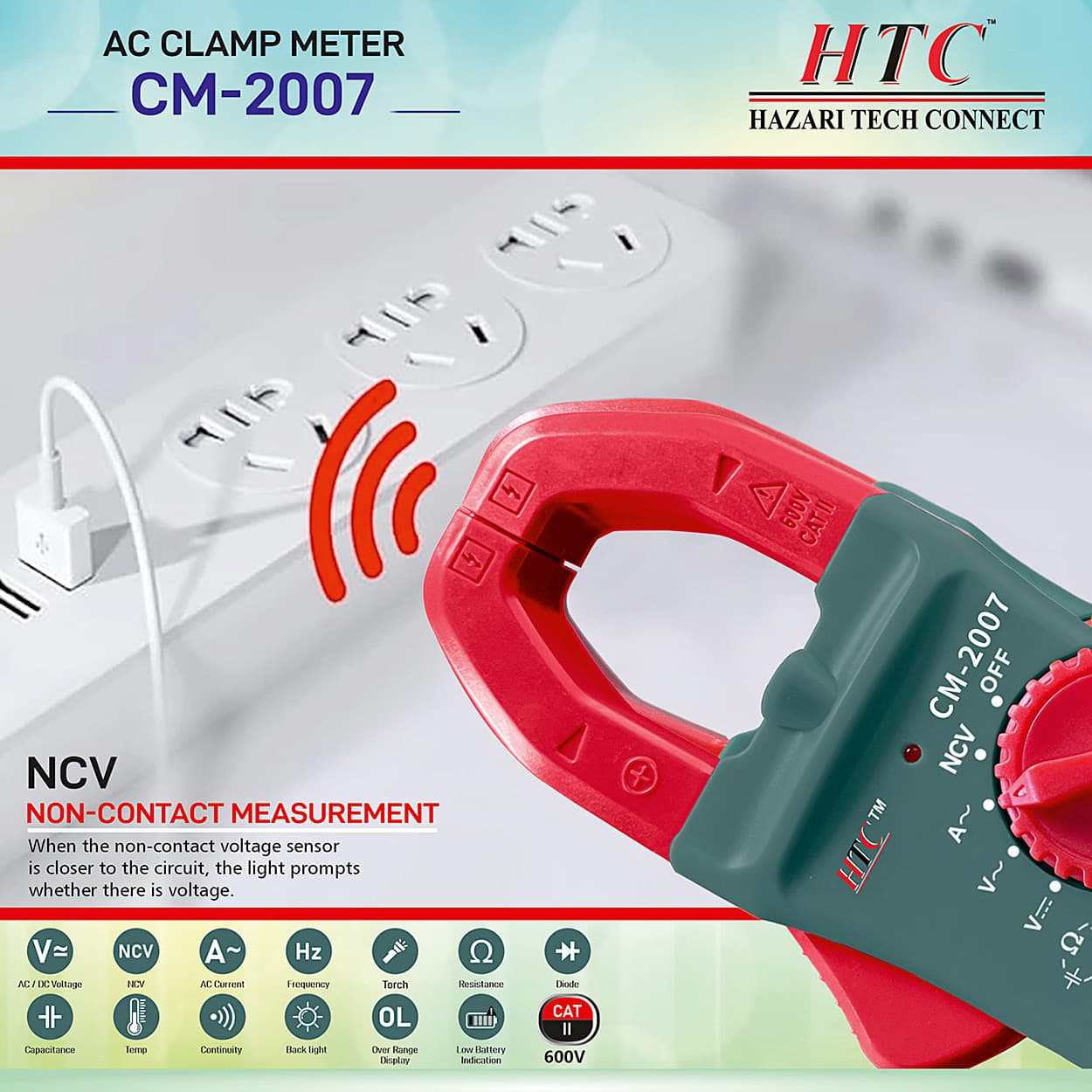

- Non Contact Voltage (NCV)
- Clamp Torch
- Frequency, CAP, Temperature
- True RMS

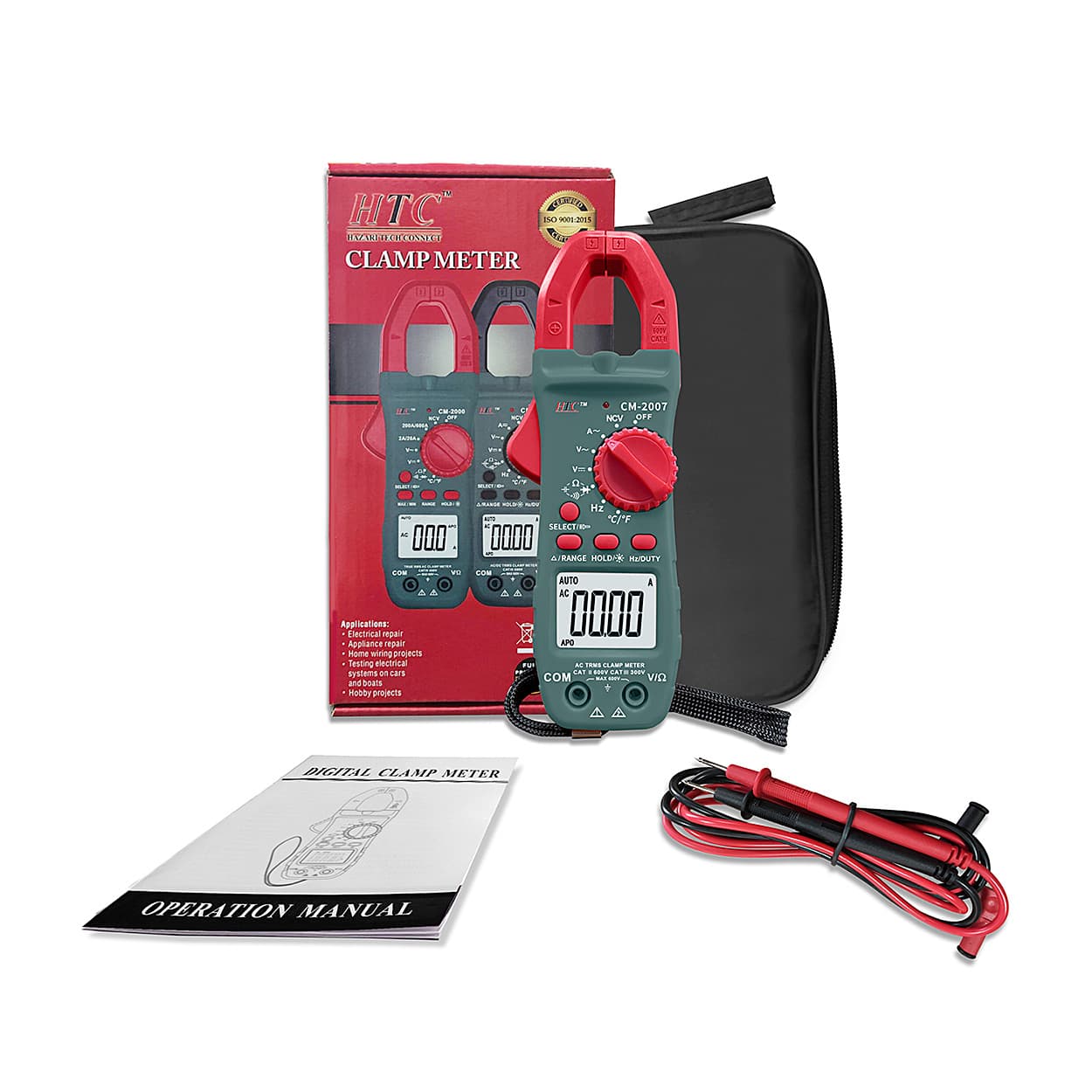

Package Contents:
- Test Lead,
- Manual,
- TP-04 Temperature Probe,
- Soft Carrying Case.
DC Voltage:
| Range | Resolution | Accuracy |
| 400mV | 0.1mV | ±1.0% of rdg + 5 digits |
| 4V | 1mV | ±0.5% of rdg + 5 digits |
| 40V | 10mV | |
| 400V | 100mV | |
| 600V | 1V |
AC Voltage:
| Range | Resolution | Accuracy |
| 4V | 1mV | ±1.0% of rdg + 5 digits |
| 40V | 10mV | |
| 400V | 100mV | |
| 600V | 1V |
AC Current:
| Range | Resolution | Accuracy |
| 4A | 1mA | ±3.0% of rdg + 5 digits |
| 40A | 10mA | |
| 400A | 100mA | ±2.0% of rdg + 5 digits |
| 800A | 1A |
Resistance:
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 4kΩ | 1Ω | ±0.8% of rdg + 3 digits |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1KΩ | |
| 40MΩ | 10KΩ | ±1.0% of rdg + 5 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 4nF | 1pF | ±5.0% of rdg + 10 digits |
| 40nF | 10pF | |
| 400nF | 100pF | ±2.5% of rdg + 5 digits |
| 4µF | 1nF | |
| 40µF | 10nF | |
| 400µF | 100nF | ±5.0% of rdg + 10 digits |
| 4mF | 1uF | |
| 40mF | 10uF |
Frequency:
| Range | Resolution | Accuracy |
| 10Hz | 0.01Hz | ±0.5% of rdg + 4 digits |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHz | 10Hz | |
| 100KHz | 100Hz | |
| 1MHz | 1KHz | |
| 10MHz | 10KHz |
Temperature:
| Range | Resolution | Accuracy |
| (-40~1000)°C | 1°C | <400°C±1.0% of rdg + 5 digits ≥400°C±1.5% of rdg + 15 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 28 mm |
|---|---|
| Power | AAA 1.5V X 2 |
| Dimension | 270 (H) x 123 (W) x 35 (D) mm |
