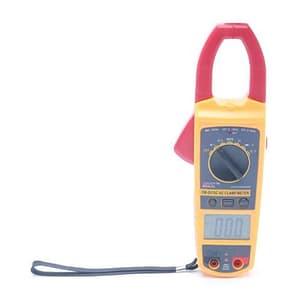

HTC 3-1/2 Digit / 1000A AC Clamp Meter With Backlight, CM-2070C
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Jaw Open: 52 mm
- Power: 9V (6F22) X 1
- Dimension: 123 (H) x 270 (W) x 35 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,458 (Incl. of all taxes)
₹1,236 + ₹222 GST (18%)
MRP was MRP ₹1,545
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Clamp Meter with Backlight.
- 2000 Count.
- Full Function Protection, Strong anti-interferential Performance.
- Temperature & Non-Contact Voltage (NCV).
- Clamp Torch.

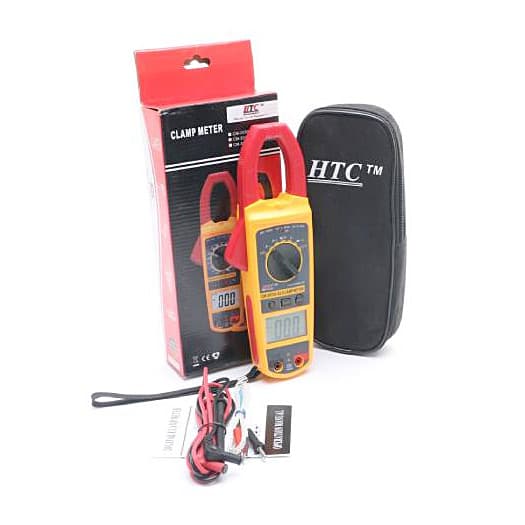

Package Contents:
- Test Lead,
- Manual,
- Soft Carrying Case,
- TP04 Temperature probe.
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.0% of rdg + 5 digits |
| 2V | 1mV | ±0.5% of rdg + 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±1.0% of rdg + 5 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.5% of rdg + 5 digits |
| 2V | 1mV | ±1.0% of rdg + 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 750V | 1V | ±1.5% of rdg + 5 digits |
AC Current:
| Range | Resolution | Accuracy |
| 200A | 100mA | ±2.0% of rdg + 5 digits |
| 1000A | 1A |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg + 1 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1kΩ | |
| 20MΩ | 10kΩ | ±1.2% of rdg + 5 digits |
Temperature:
| Range | Resolution | Accuracy |
| (-40-1000)°C | 1°C | <400°C±1.0% of rdg + 5 digits >400°C±1.5% of rdg + 5 digits |
| (0-1832)°F | 1°F | <750°C±1.0% of rdg + 5 digits ≥750°C±1.5% of rdg + 5 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 52 mm |
|---|---|
| Power | 9V (6F22) X 1 |
| Dimension | 123 (H) x 270 (W) x 35 (D) mm |
