Fluke 600A AC/DC Clamp Meter, 301D
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 154 g
- AC/DC Current Range: 60.00A / 600.0A
- AC/DC Current Resolution: 0.01A / 0.1A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,415 (Incl. of all taxes)
₹8,826 + ₹1,589 GST (18%)
MRP was MRP ₹12,980
Save 32%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights
The Fluke 301D Series AC/DC Clamp Meter is designed with a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301D test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc. You can handle multiple test needs with just one tool. With the AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc.
Features:
- The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
- The slim and thin jaw of only 10mm can easily fit into tightly packed wires
- 600A AC/DC range (D model), 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
What's Included In This Package:
- 1x Clamp Meter
- 2x AA Batteries
Technical Data:
| Maximum voltage between any Terminal and Earth Ground | 300V |
| Maximum Differential Voltage between V/Ω and COM Terminals | 600V |
| Display (LCD) | 6000 Counts, Updates 3 times per second |
| Battery Type | 2 AAA, IEC LR03 |
| Battery Life | 500 Hours minimum |
| Auto Power Off Time | 20 Minutes |
| Temperature | -10 °C to 50 °C (Operating) / -30 °C to 60 °C (Storage) |
| Relative Humidity | Operating Humidity: Non-condensing (<10°C) |
| ≤ 90 % RH at 10 °C to 30 °C | |
| ≤ 75 % RH at 30 °C to 40 °C | |
| ≤ 45 % RH at 40 °C to 50 °C | |
| Altitude | 2000 m (Operating) / 12000 m (Storage) |
| Temperature Coefficient | 0.1 x (specified accuracy) /°C (<18 °C or >28 °C) |
| Ingress Protection Rating | IP30 |
| Safety | IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 |
| Electromagnetic Environment | IEC 61326--1: Portable |

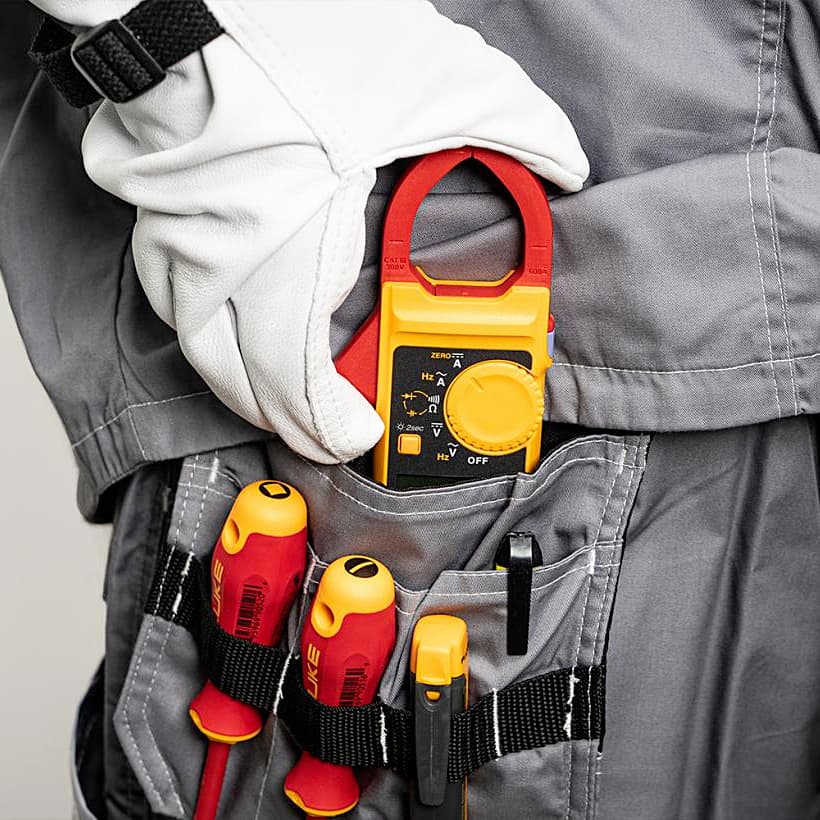

As one of the commonly used tools in electrical testing, clamp meters are often taken to various testing sites by engineers. The Fluke F301 weighs only 132g and is just 16mm thick. The lightweight and slim body is designed to fit in your pocket, allowing you to carry it around for easier field testing. |

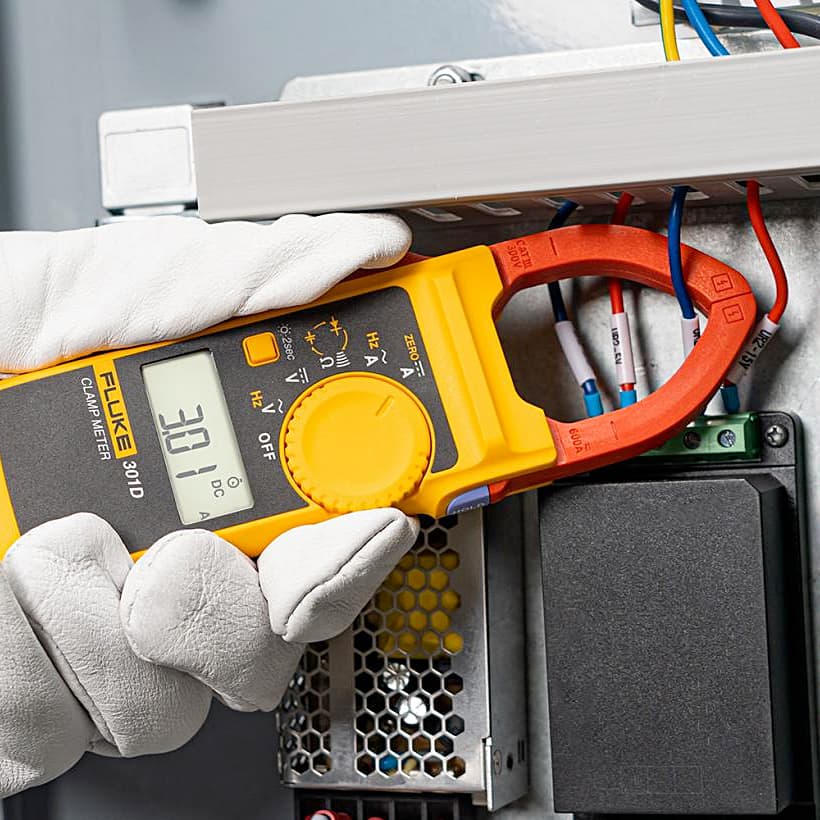

When testing for current, it is a common problem that the jaws are too bulky to clamp onto tightly packed wires. The Fluke F301 has a slim and thin jaw with the arm size of only 10mm x 10mm, allowing it to easily clamp onto tightly packed wires and small space. These jaws make current testing safer and more efficient. |
An all-in-one tool to resolve the need to bring more than one tool out for field testing or being in a situation where you left out a tool and is not able to complete the testing process. With eight test functions, the Fluke F301 can meet more field testing needs and solve more problems with just one meter.
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| AC/DC Current Range | 60.00A / 600.0A |
|---|---|
| AC/DC Current Resolution | 0.01A / 0.1A |
| AC/DC Current Accuracy | 2%+10 / 2%+5 |
| AC/DC Voltage Range | 600.0V |
| AC/DC Voltage Resolution | 0.1V |
| AC Voltage Accuracy | 1.5%+5 |
| DC Voltage Accuracy | 1%+5 |
| AC Current & Voltage Frequency | 45 to 400 Hz |
| Resistance Range (Ohm) | 600.0 / 6.000k / 60.00k |
| Resistance Accuracy | 1%+5 |
| Voltage Frequency Range (Hz) | 9.999 / 99.99 / 999.9 / 9.999k / 99.99k |
| Current & Voltage Frequency Accuracy | 0.1%+3 |
| Capacitance Range | 9.999uF / 99.99uF / 999.9uF |
| Capacitance Accuracy | 2%+5 / 5%+5 |
| Diode Range | 3.000 V |
| Diode Accuracy | 10% |
| Continuity | Yes |
| Hold | Yes |
| Safety Rating | CAT III 300V |
| Jaw Opening | 34 mm |
| Clamp Arm Size | 10 mm X 10 mm |
| Size (L x W x H) | 190 x 52 x 16 mm |
| Size with Barrier & Trigger (L x W x H) | 190 x 68 x 22 mm |
