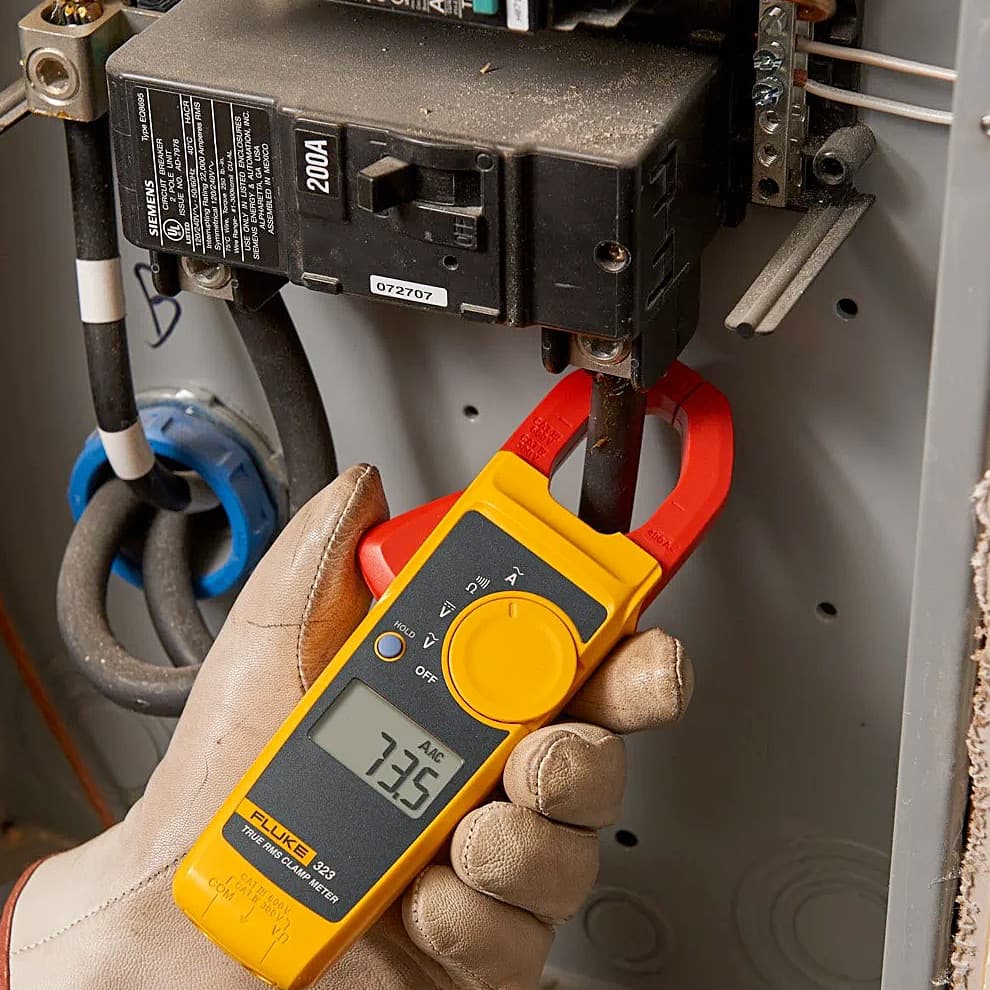

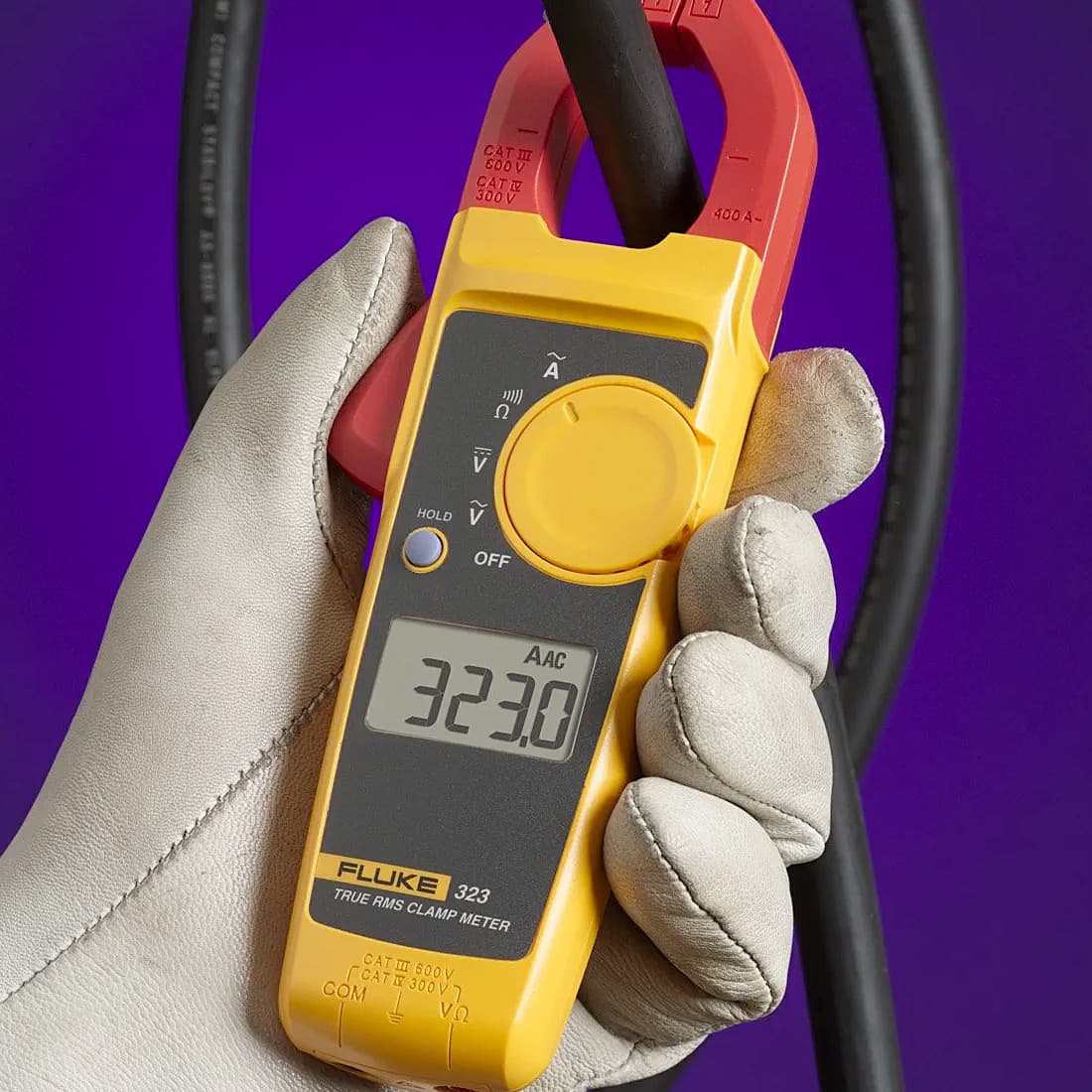

Fluke 323 400A True-RMS Clamp Meter
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 265 g
- AC current Range: 400.0 A
- AC voltage Range: 600.0 V
- DC voltage Range: 600.0 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,440 (Incl. of all taxes)
₹19,017 + ₹3,423 GST (18%)
MRP was MRP ₹27,966
Save 32%
12 Business Days
1
90303100
Download Fluke CatalogueNot available
Highlights
The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes True RMS measurements, optimized ergonomics, and large display for efficient troubleshooting. It's designed to perform in the toughest environments and provide noise-free, reliable results, so you can trust it to help you confidently diagnose problems almost anywhere.
Use it to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts. Its slim, compact size and rugged design make it well suited for measuring current up to 400 A in tight cable compartments.The Fluke 323 comes with a two-year warranty and a soft carrying case.
Features:
- Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
- Measures AC current to 400 V
- Measures AC voltage and DC voltage to 600 V
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures resistance to 4 k? with continuity detection.
Other Useful Features:
- Features slim, ergonomic design for measuring in tight cable compartments
- Presents measurements on a large, easy-to-read display
- Hold function captures a reading on the display
- Features a CAT III 600 V, CAT IV 300 V safety rating
- Comes with a two-year warranty and soft carrying case.

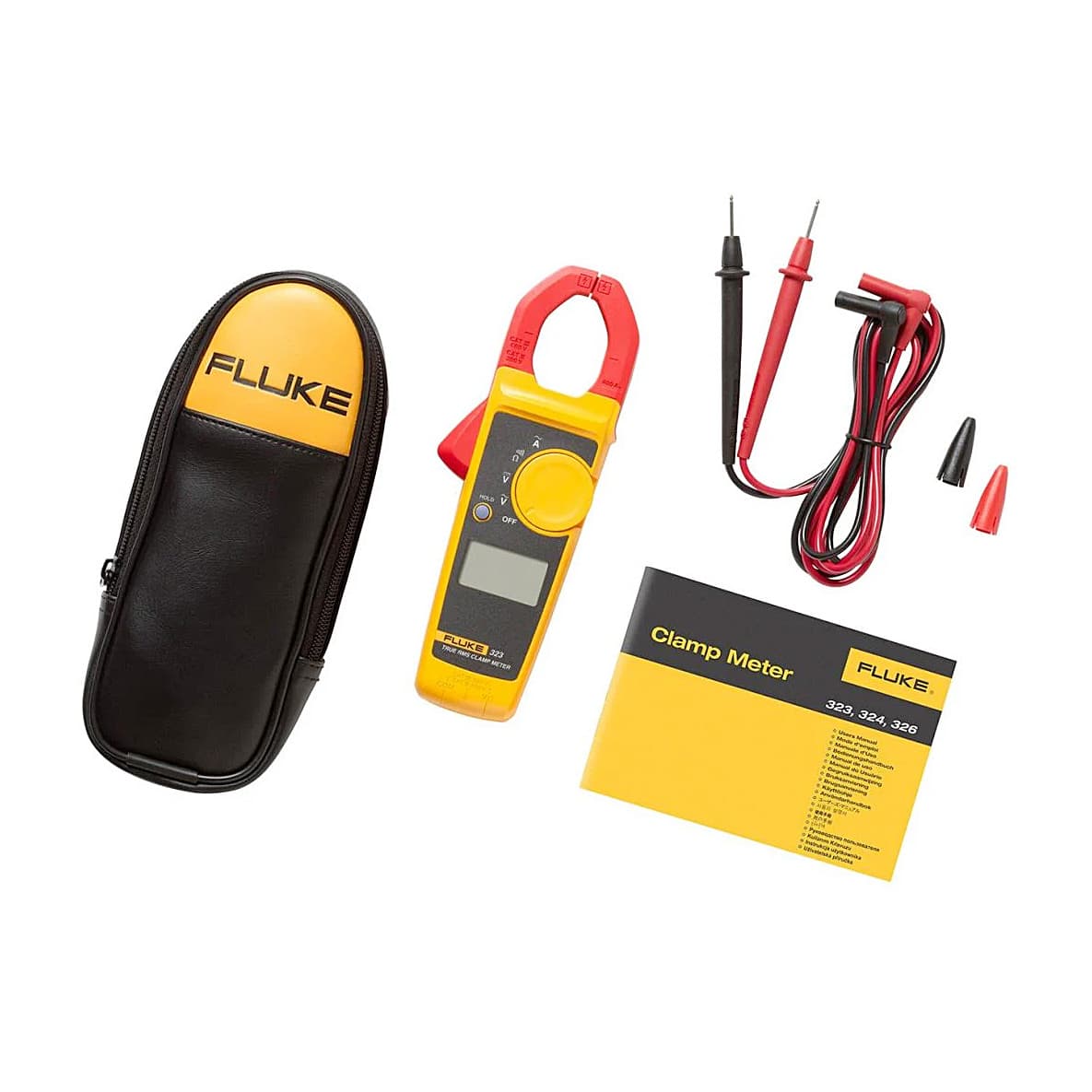

What's Included In This Package:
- 323 Clamp Meter
- (1 pair) Test leads
- Soft case
- Quick Reference Guide
Specifications:
| AC current | Range | 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | - |
| Accuracy | - | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 / 4000 Ohms |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 70 Ohms | |
| Capacitance | - | |
| Frequency | - | |
| AC response | True-RMS | |
| Backlight | - | |
| Data hold | Yes | |
| Contact temperature | - | |
| Min/Max | - | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| AC current Range | 400.0 A |
|---|---|
| AC voltage Range | 600.0 V |
| DC voltage Range | 600.0 V |
