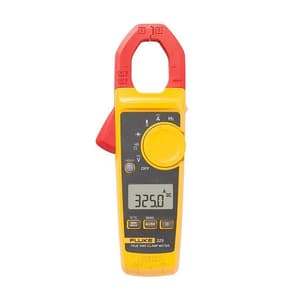

Fluke 325 400A True-RMS Clamp Meter
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 283 g
- AC Current Range: 40.00 A / 400.0 A
- DC voltage Range: 600.0 V
- Frequency: 5.0 Hz to 500.0 Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹28,026 (Incl. of all taxes)
₹23,751 + ₹4,275 GST (18%)
MRP was MRP ₹34,928
Save 32%
12 Business Days
1
90275090
Download Fluke CatalogueNot available
Highlights
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
- DC current
- DC voltage
- Temperature
- Frequency
You’ll carry fewer tools in your bag and get more work done.
Covers Most Problems You See Day-In, Day-Out:
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:
- Measures AC/DC current up to 400 A through jaw
- AC/DC voltage to 600 V using test leads
- Measures frequency from 5 Hz to 500 Hz; resistance to 40 k?
- Measures temperature from -10 °C to 400 °C with included K-type thermocouple
- Min/Max function records important values
- Comes with a two-year warranty.
Features:
- True-rms AC/DC current, voltage, temperature, frequency
- Clamp meter, test leads, K-type thermocouple and soft case
- Versatile tool performs most front-line measurement tasks.

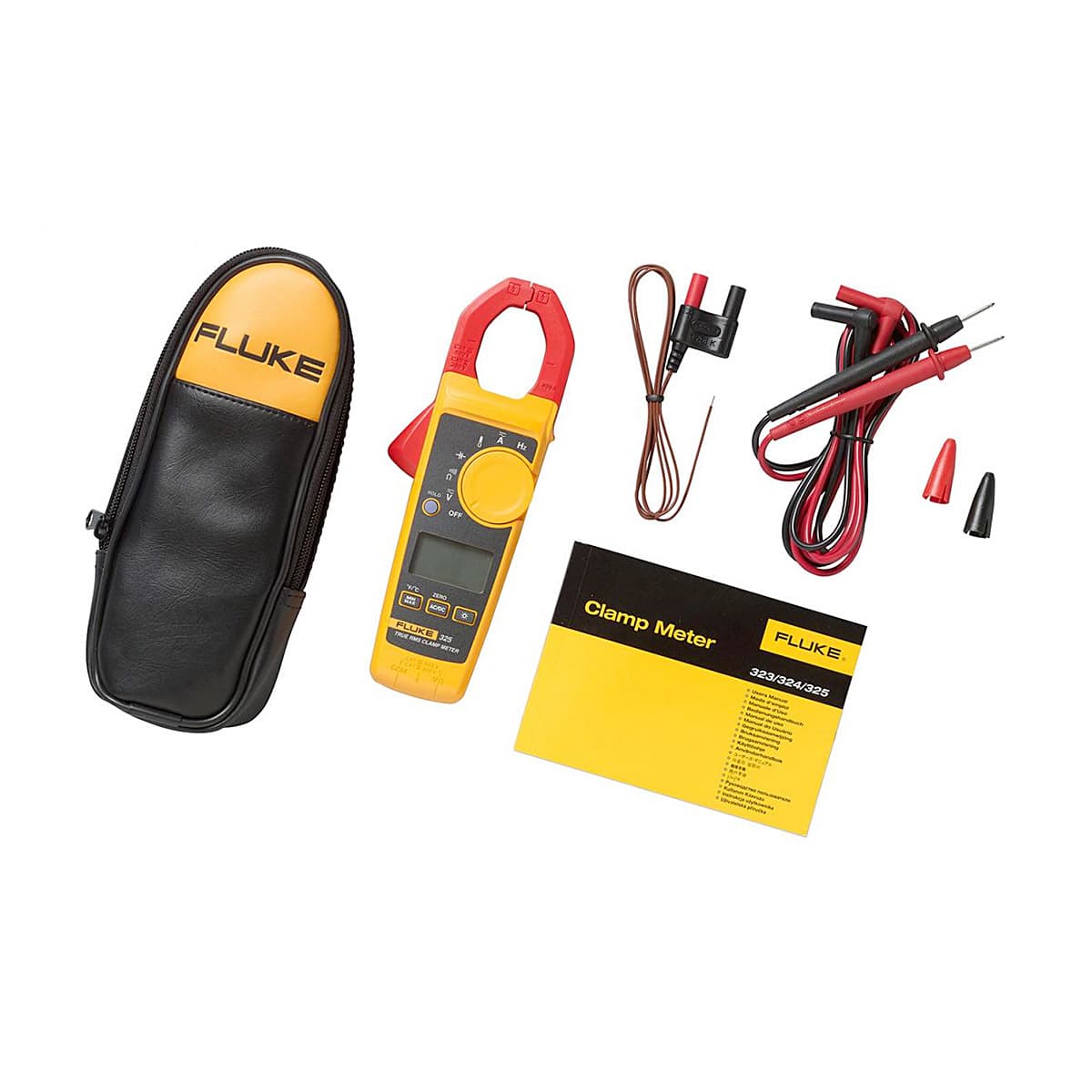

What's Included In This Package:
- Fluke 325 True-RMS Clamp Meter
- TL75 Test Leads
- Type K Thermocouple
- Two AAA Batteries (Installed)
- Soft Case
Specifications:
|
AC current |
Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
|
DC current |
Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
|
AC voltage |
Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
|
DC voltage |
Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
|
Resistance |
Range | 400.0 / 4000 / 40.00 k Ohms |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ohms | |
| Capacitance | 0 to 100.0 μF / 100μF to 1000 μF | |
| Frequency | 5.0 Hz to 500.0 Hz | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | Yes | |
|
Size |
H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
|
Category rating |
CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| AC Current Range | 40.00 A / 400.0 A |
|---|---|
| DC voltage Range | 600.0 V |
| Frequency | 5.0 Hz to 500.0 Hz |
