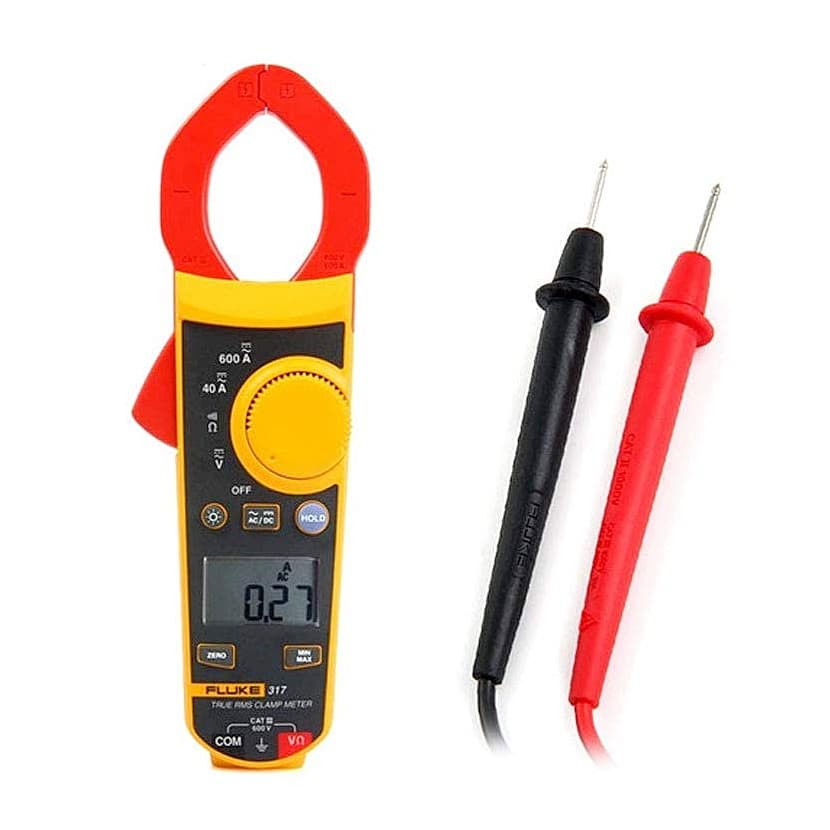

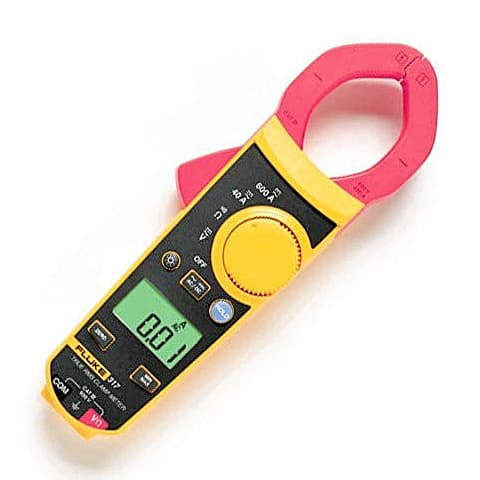

Fluke 317 600A True-RMS AC / DC Clamp Meter
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 384 g
- Digital display: 6000 count resolution
- Power source: Three AAA IEC LR03 batteries
- Auto range: Available in Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,156 (Incl. of all taxes)
₹18,776 + ₹3,380 GST (18%)
MRP was MRP ₹27,612
Save 32%
3 Business Days
1
90303100
Download Fluke CatalogueNot available
Highlights
The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments.
The Fluke 317 and 319 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equip with In-rush current and Frequency functions for testing motors, lighting, etc.
Features:
The two models are economic, compact, and offer a range of special features:
- Unique 40A high-precision low current measurement--0.01A high-resolution, 1.6% high-precision measurement
- The clamps are slim, lightweight, and portable, making them ideal for use in small, confined spaces
- The large backlight display facilitates readings in dark environments
- Starting current (inrush) functionality (319) allows measurement of the starting current of electrical and lighting equipment, for example. (319)
- Current frequency measurement
- Precision down to 0.01A and 0.1V
- 1000A/600A AC/DC current measurement (319/317)
- 600V AC/DC voltage measurement
- 4000Ω resistance measurement
- Continuity beeper
- Auto-off function enhances battery life, meaning the instrument can work when you need it screen store ‘hold’ function for capturing a measurement result on the screen
- One-year warranty.

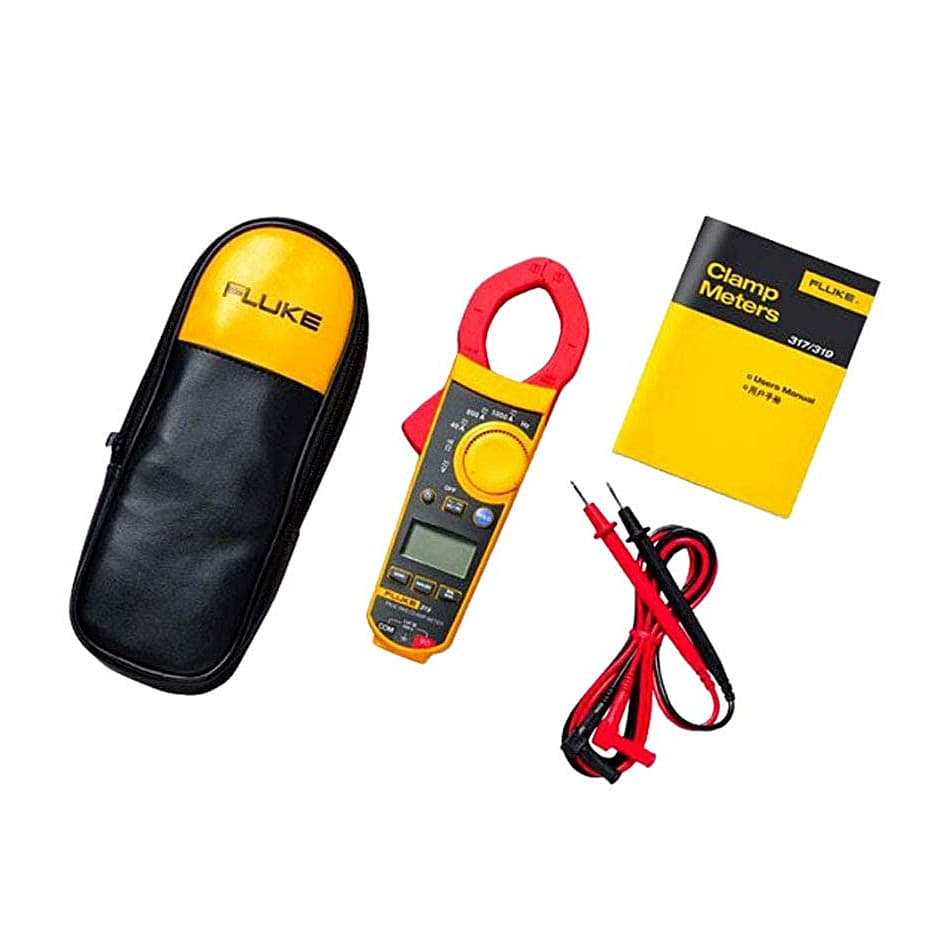

What's Included In This Package:
- Test Leads
- Soft Carrying Case
- Three AAA batteries (Installed)
- 317/319 User Manual
317 Electrical Specifications:
| Current AC | Range | 40.00 A, 600.0 A |
| Resolution | 0.01 A, 0.1 A | |
| Accuracy | 1.6% ±6 digit (50-60 Hz) {40 A} | |
| 2.5% ±8 digit (60-500 Hz) {40 A} | ||
| 1.5% ±5 digit (50-60 Hz) {600 A} | ||
| 2.5% ±5 digit (60-500 Hz) {600 A} | ||
| Crest Factor add 2% into spec for CF > 2 | 3.0 Max @ 500 A, 2.5 Max @ 600 A | |
| AC response | rms | |
| Current DC | Range | 40.00 A, 600.0 A |
| Resolution | 0.01 A, 0.1 A | |
| Accuracy | 1.6% ±6 digit (40 A) | |
| 1.5% ±5 digit (600 A) | ||
| Voltage AC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1.5% ±5 digit (20-500Hz) | |
| AC response | rms | |
| Voltage DC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1% ±4 digit | |
| Resistance | Range | 400.0 Ω, 4000 Ω |
| Resolution | 0.1 Ω, 1 Ω | |
| Accuracy | 1% ±5 digit | |
| Continuity | ≤ 30 Ω | |
| Inrush | Integration time | N/A |
| Frequency | Range | N/A |
| Accuracy | N/A | |
| Trigger Level | N/A |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Digital display | 6000 count resolution |
|---|---|
| Power source | Three AAA IEC LR03 batteries |
| Auto range | Available in Ohms |
| Jaw diameter | 1.45 in (37 mm) |
| Clamp opening size | 1.45 in (37 mm) |
| Low battery Indication | Displays a signal when the batteries are below their required voltage |
| Safety | CE EN/IEC 61010-1 and IEC 61010-2-032 Measurement Category: 600V CAT III |
