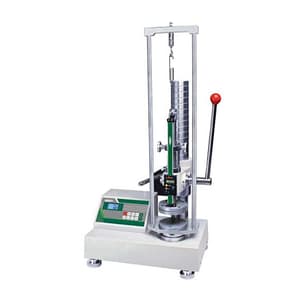

Insize Digital Spring Tester, ISF-S1000

Name: Insize Digital Spring Tester, ISF-S1000
Brand: Insize
SKU: ME.DI.SP.00009
Price: 195364.00 INR
Availability: InStock

Shop all Insize

SKU: ME.DI.SP.00009

Model: ISF-S1000

Roll over the image to zoom in

Visit Insize Store

Key Features

Product Type: Spring Tester
Weight: 47.5 kg
Maximum load: 1000N
Resolution: 0.2N
Disk diameter: 108 mm

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹1,95,364 (Incl. of all taxes)

₹1,65,563 + ₹29,801 GST (18%)

MRP was MRP ₹2,29,948

Save 28%

Dispatch: 3 Business Days

Items in Pack: 1

HSN Code: –

Download Product LeafletNot available

Download Insize CatalogueNot available

Highlights

Peak hold and automatic release function
Set upper and lower limits, red and green indicator, and buzzer alarm
Automatic conversion of three units: N, kgf, lbf
Built-in printer
Automatic power off.

Standard Delivery:

Maint unit	1 pc
Power supply	1 pc

Note:

Add "U" on code No. when the power supply is 110V, 50/60Hz.

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Insize Digital Spring Tester, ISF-S1000
Maximum load	1000N
Resolution	0.2N
Range of digital scale	150 mm
Resolution of digital scale	0.01 mm
Disk diameter	108 mm
Maximum free length of spring	200 mm
Measuring range of force	5%~100% (maximum load)
Accuracy of force	±1% (maximum load)
Data output	RS232
Power supply	220V, 50/60Hz
Dimensions	490 x 300 x 920mm
