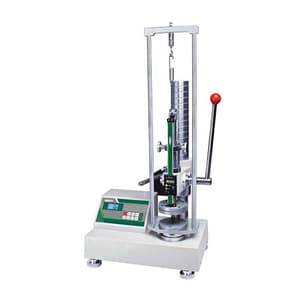

Insize Digital Spring Tester, ISF-S2000
Roll over the image to zoom in
Key Features
- Product Type: Spring Tester
- Weight: 47.5 kg
- Maximum load: 2000N
- Resolution: 0.5N
- Disk diameter: 108 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,95,396 (Incl. of all taxes)
₹1,65,590 + ₹29,806 GST (18%)
MRP was MRP ₹2,29,986
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Peak hold and automatic release function
- Set upper and lower limits, red and green indicator, and buzzer alarm
- Automatic conversion of three units: N, kgf, lbf
- Built-in printer
- Automatic power off.
Standard Delivery:
| Maint unit | 1 pc |
| Power supply | 1 pc |
Note:
- Add "U" on code No. when the power supply is 110V, 50/60Hz.
Specifications
| Maximum load | 2000N |
|---|---|
| Resolution | 0.5N |
| Range of digital scale | 150 mm |
| Resolution of digital scale | 0.01 mm |
| Disk diameter | 108 mm |
| Maximum free length of spring | 200 mm |
| Measuring range of force | 5%~100% (maximum load) |
| Accuracy of force | ±1% (maximum load) |
| Data output | RS232 |
| Power supply | 220V, 50/60Hz |
| Dimensions | 490 x 300 x 920mm |
