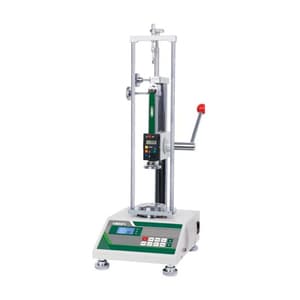

Insize Digital Spring Tester, ISF-S20
Roll over the image to zoom in
Key Features
- Product Type: Spring Tester
- Weight: 13.2 kg
- Maximum load: 20N
- Resolution: 0.002N
- Disk diameter: 30 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,61,520 (Incl. of all taxes)
₹1,36,881 + ₹24,639 GST (18%)
MRP was MRP ₹1,90,113
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Peak hold and automatic release function
- Set upper and lower limits, red and green indicator, and buzzer alarm
- Automatic conversion of three units: N, kgf, lbf
- Built-in printer
- Automatic power off.
Standard Delivery:
| Maint unit | 1 pc |
| Power supply | 1 pc |
Note:
- Add "U" on code No. when the power supply is 110V, 50/60Hz.
Specifications
| Maximum load | 20N |
|---|---|
| Resolution | 0.002N |
| Range of digital scale | 65 mm |
| Resolution of digital scale | 0.01 mm |
| Disk diameter | 30 mm |
| Maximum free length of spring | 65 mm |
| Measuring range of force | 5%~100% (maximum load) |
| Accuracy of force | ±1% (maximum load) |
| Data output | RS232 |
| Power supply | 220V, 50/60Hz |
| Dimensions | 300 x 235 x 600mm |
