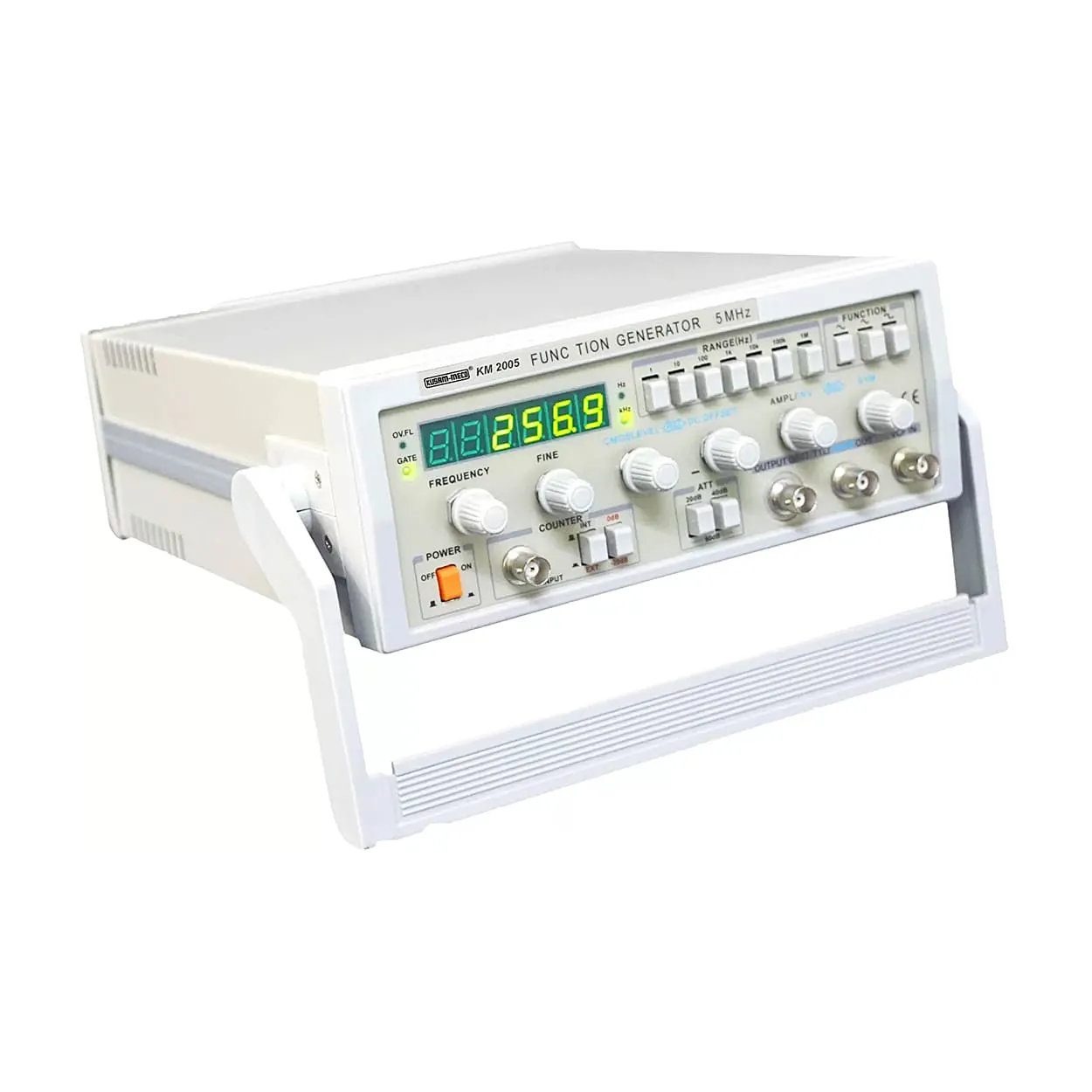

Kusam-Meco 0.1Hz - 5MHz Digital function Generator, KM 2005
Roll over the image to zoom in
Key Features
- Product Type: Function Generators
- Weight: 2.5 kg
- Measuring Range: 1Hz ~ 10MHz >10Vp-p
- Input Impedance: Not Less Than 1MW / 20F
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,954 (Incl. of all taxes)
₹13,520 + ₹2,434 GST (18%)
MRP was MRP ₹16,900
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Output waveform - Sine, Triangle, Square, ramp ±Pulse
- TL / CMOS and OUTPUT synchronous output
- Less than 1% distortion at 10Hz - 100KHz
- Less than 0. 5dB frequency response at 0. 1Hz - 100KHz
- 1Hz - 30MHz frequency counter
- The sine wave of the square wave may be chosen to output
Technical Data:
- Output waveforms: Sine, triangle, square, positive and negative pulse, positive and negative ramp
- Output impedance: 50W ± 10%
- Amplitude: Not less than 50Vpp (open circuit)
- DC voltage: 0 ~ ±10V continuously adjustable
- Symmetry range: 90:10-- 10:90
- Rising edge of square: Less than 50ns
| Distortion | Less than 1% at 10H - 100KHz |
| Frequency response | 0.1 Hz ~ 100 MHz : £ ± 0.5dB / 100 KHz ~ 5 MHz ±1dB |
| Level | Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V, CMOS low less than 0 - 14V continuously variable |
| Rising time | Less than 100ns |
| Output voltage | -5V ~ 0V ±10 |
| Max. volt controlled | 1000:1 |
| Input signal | DC - 1KHz |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range | 1Hz ~ 10MHz >10Vp-p |
|---|---|
| Input Impedance | Not Less Than 1MW / 20F |
| Sensitivity | 100mVrms |
| Max. Input | 150V (AC+DC) |
| Input Attenuation | 20dB |
| Accuracy | Less than 0. 003% ±1digit |
| Line Power | 220V/110V±10% 50Hz/60Hz |
| Dimension | 270 x 225 x 90 mm |
