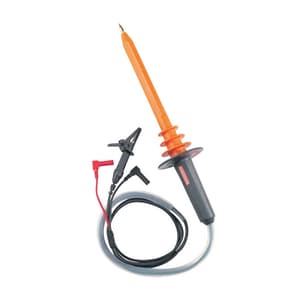

Kusam-Meco 1 Mtr High Voltage Probe, PD-28
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Weight: 260 g
- Cable Length: 1 Mtr
- Input Impedance: 1000 MW
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,738 (Incl. of all taxes)
₹9,100 + ₹1,638 GST (18%)
MRP was MRP ₹11,375
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Most Digital Multimeters can measure AC Voltage up to 750 /1000V and DC Voltage up to 1000V DC. To extend the measuring range of the digital multimeter for low-power, high-voltage, high-impedance circuits such as TV and video Monitors.
Features:
- PD-28 is a High Voltage Probe used to measure both AC & DC voltage with your Multimeter.
- It consists of 2 kinds of contact tips: One is a round needle tip for normal use. The other is a special flat spring type for CRT anode.
- A separate test clip for the ground connection is provided.
- A set of test leads for connecting to the Multimeter & a high-quality enclosure that has very High Insulation properties.y
- It has an ergonomically designed handle for convenient use.
- It can be used with most Digital Multimeters.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Cable Length | 1 Mtr |
|---|---|
| Input Impedance | 1000 MW |
| Attenuation Ratio | 1000 : 1 |
| Max. Working Voltage | 40 kV DC or 28 kV AC |
| Operating Temperature | 0°C ~ 50°C < 80% RH |
| Storage Temperature | -10°C ~ 60 °C < 80% RH |
| Accuracy | DCV (0 ~ 20kV) ± 1%, DCV (20 kV ~ 40kV) ± 2% ACV (0 ~ 28 kV) typically ± 5% at 50 Hz |
