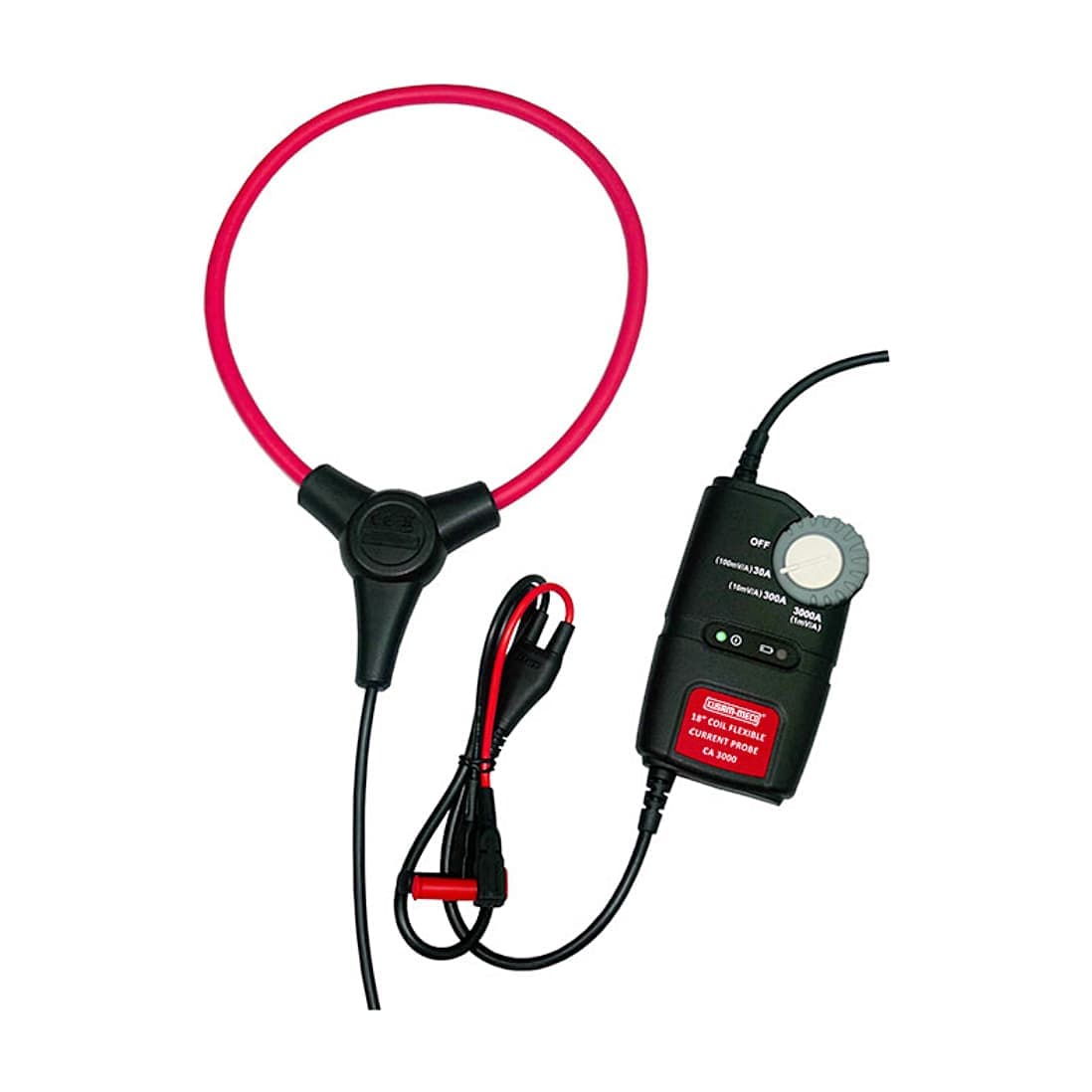

Kusam-Meco 3000A AC Flexible Current Probe / Meter, CA 3000
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Measurement Ranges: 30A / 300A / 3000A AC
- Output Resolution: 100mV / 10 mV / 1mV Per Amp (AC Coupled)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,706 (Incl. of all taxes)
₹9,920 + ₹1,786 GST (18%)
MRP was MRP ₹12,400
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- 18" flexible sensor fit around conductor. up to 5.8" in diameter.
- 8.5mm coil diameter allows measurement in tight spaces. (Double Insulated)
- Flashing LED low battery Indicator.
- Dual banana plug termination for direct Input Into DMM.
- EN 61010, CAT IV GOOV, CAT 1111000V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measurement Ranges | 30A / 300A / 3000A AC |
|---|---|
| Output Resolution | 100mV / 10 mV / 1mV Per Amp (AC Coupled) |
| Cable Size | 1.8m (6 ft) |
| Accuracy | ± 1% of Full Scale |
| Frequency | 45 - 500Hz |
| Phase Error (45/65 HZ) | < ±1° |
| Position Sensitivity | ± 2.8% of Full Scale |
| Noise | 0.03A / 0.075A / 0.5A |
| Low Battery | Indicated by a Red LED |
| Power Indicate | Indicated by a Green LED |
| Power Supply | UM-4 or AAA 1.5V Battery x 2 (Alkaline Battery) |
